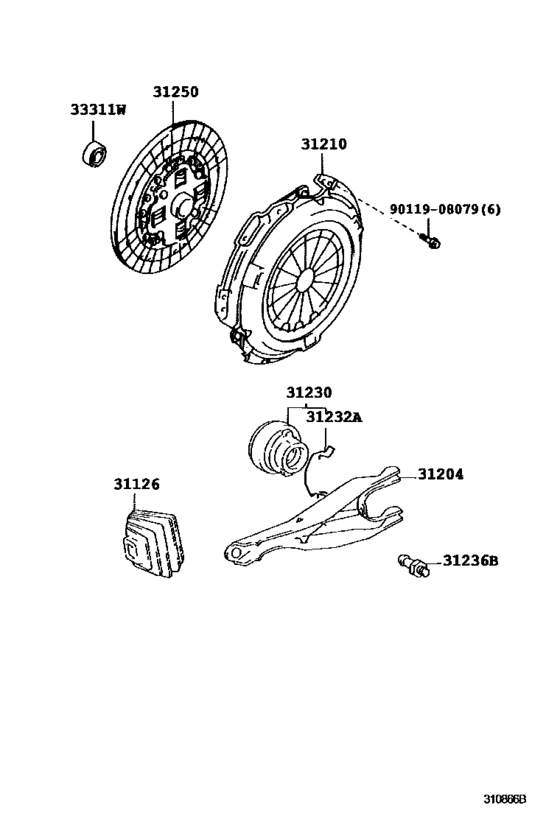

Clutch & Release Fork ([10.2001 - 08.2004] (0110-0408)KDN145,150,155) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- KDN150
- grade
- SR
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- TH
- CAB
- XTR
- Model
- HILUX
- From
- 10.2001
- To
- 08.2004
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-60081 Boot, Clutch Release Fork[09.2001 - 04.2005] KZN165,190..SR;KDN145,15#,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
31126-60081 |
from US $13.80 |
||
|
31204
|
31204
31204-60090 Fork Sub-Assy, Clutch Release[09.2001 - 04.2005] KDN165..IV1;KZN165..THDCB,THSCB;KDN145,15#,KZN165..TH |
31204-60090 |
from US $76.94 |
||
|
31210
|
31210
31210-35122
Cover Assy, Clutch
[09.2001 - 04.2002] KDN145,15# |
31210-35122 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-26164 Cover Assy, Clutch[09.2001 - 04.2002] KDN145,15# |
31210-26164 |
from US $161.19 |
||
|
31230
|
31230
31230-22100 Bearing Assy, Clutch Release[10.2001 - 09.2004] KDN145,150,155 |
31230-22100 |
US $29.56 |
||
| replacement | |||||
|
31230
|
31230
31230-22101 Bearing Assy, Clutch Release[10.2001 - 09.2004] KDN145,150,155 |
31230-22101 |
from US $39.31 |
||
|
31232A
|
31232A
31232-22020 Clip, Release Bearing Hub[10.2001 - 09.2004] KDN145,150,155 |
31232-22020 |
US $3.32 |
||
|
31236B
|
31236B
31236-60060 Support, Release Fork[09.2001 - 04.2005] KDN165..IV1;KZN165..THDCB,THSCB;KDN145,15#,KZN165..TH |
31236-60060 |
from US $9.96 |
||
|
31250
|
31250
31250-25150 Disc Assy, ClutchCLUTCH [10.2001 - 04.2002] KDN145,15# |
31250-25150 |
US $266.45 |
||
| replacement | |||||
|
31250
|
31250
31250-25180 Disc Assy, Clutch[10.2001 - 04.2002] KDN145,15# |
31250-25180 |
US $294.11 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[08.2001 - 08.2004] LN147,167..THSCB..IV3;LN150,167..(THDCB,XTR)..DLX;LN147,152..(THDCB,THXTR)..CBU;LN 145,172..(DCB,THXTR)..(ARL,TH);KDN145,15#,16#,LN155..MTM..TH..CBU |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[08.2001 - 08.2004] LN147,167..THSCB..IV3;LN150,167..(THDCB,XTR)..DLX;LN147,152..(THDCB,THXTR)..CBU;LN 145,172..(DCB,THXTR)..(ARL,TH);KDN145,15#,16#,LN155..MTM..TH..CBU |
90363-12024 |
from US $5.67 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
