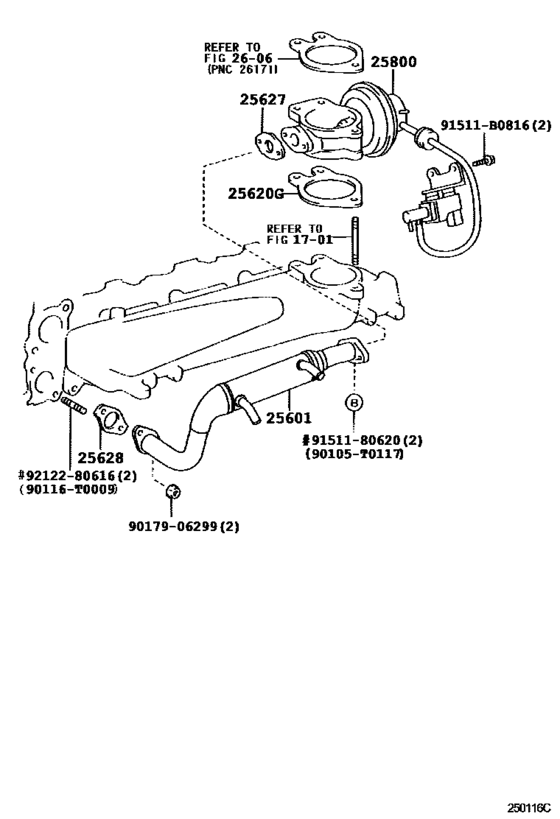

Exhaust Gas Recirculation System ([08.2002 - ] (0208- )1KDFTV) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- KDN166
- grade
- SR
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- TH
- CAB
- XTR
- Model
- HILUX
- From
- 08.2002
- To
- 08.2004
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-30010 Pipe Sub-Assy, Egr, No.1[08.2002 - 09.2004] 1KDFTV..KDN151,166 |
25601-30010 |
US $224.22 |
||
|
25620G
|
25620G
26171-0L010 Gasket, Intake Air ConnectorINTAKE AIR CONNECTOR [06.2004 - 08.2004] 1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH (L) |
26171-0L010 |
US $3.79 |
||
|
25620G
|
25620G
26171-30011
Gasket, Diesel Throttle
[10.2001 - 10.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
26171-30011 |
— | ||
| replacement | |||||
|
25620G
|
25620G
26171-30013 Gasket, Intake Air Connector[10.2001 - 10.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
26171-30013 |
from US $3.18 |
||
|
25620G
|
25620G
26171-30012
Gasket, Intake Air Connector
[10.2002 - 03.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
26171-30012 |
— | ||
| replacement | |||||
|
25620G
|
25620G
26171-30013 Gasket, Intake Air Connector[10.2002 - 03.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
26171-30013 |
from US $3.18 |
||
|
25620G
|
25620G
26171-30013 Gasket, Intake Air Connector[03.2004 - 06.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
26171-30013 |
from US $3.18 |
||
|
25627
|
25627
25627-30010 Gasket, Egr Valve[10.2001 - 03.2005] 1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190 |
25627-30010 |
from US $0.74 |
||
|
25628
|
25628
25628-30010 Gasket, Egr Inlet[10.2001 - 03.2005] 1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190 |
25628-30010 |
from US $1.62 |
||
|
25800
|
25800
25800-30050 Valve Assy, Electric Egr ControlELECTRIC EGR CONTROL [08.2002 - 09.2004] 1KDFTV..KDN151,166 |
25800-30050 |
US $334.88 |
||
|
90105T0117
|
90105T0117
90105-T0117
BOLT FLANGE
|
90105-T0117 |
— | ||
|
90116T0009
|
90116T0009
90116-T0009
New Genuine Part
|
90116-T0009 |
— | ||
|
91511B0816
|
91511B0816
91511-B0816 BOLT |
91511-B0816 |
US $0.84 |
||
| replacement | |||||
|
91511B0816
|
91511B0816
90080-10159 New Genuine Part |
90080-10159 |
US $3.21 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
||
|
9151180620
|
9151180620
91511-80620 Direct |
91511-80620 |
US $1.97 |
||
|
9212280616
|
9212280616
92122-80616 Bolt, Stud(For Head To Cylinder Head Cover) |
92122-80616 |
US $1.43 |
||
