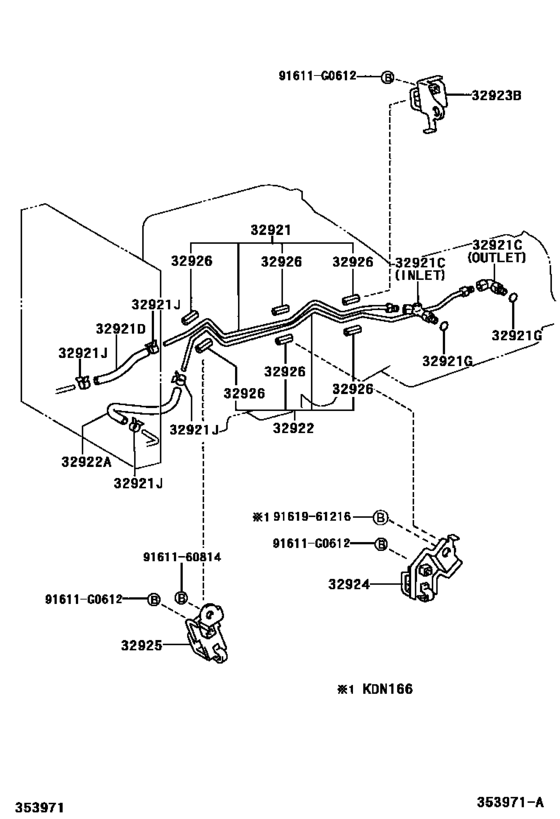

Oil Cooler & Tube (Atm) ([10.2001 - ] A340E,A340F (0110- )KDN166,190..ATM) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- KDN166
- grade
- SR
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- TH
- CAB
- XTR
- Model
- HILUX
- From
- 08.2002
- To
- 08.2004
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-35400 Tube, Oil Cooler Inlet, No.1OIL COOLER INLET, NO.1 [12.2001 - 08.2004] KDN166,190..(DCB,XTR)..ATM..TH..CBU |
32921-35400 |
US $21.55 |
||
|
32921C
|
32921C
90407-14024 Union(For Oil Cooler Tube)[12.2001 - 03.2005] KDN166,190..ATM INLET |
90407-14024 |
US $13.44 |
||
|
32921C
|
32921C
90407-16009 Union(For Oil Cooler Tube)[09.2001 - 11.2005] KDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH) OUTLET |
90407-16009 |
from US $6.99 |
||
|
32921D
|
32921D
32941-35290
Hose(For Oil Cooler Outlet)
[12.2001 - 08.2004] KDN166,190..(DCB,XTR)..ATM..TH..CBU |
32941-35290 |
— | ||
| replacement | |||||
|
32921D
|
32921D
32941-26170 Hose(For Oil Cooler Inlet)[12.2001 - 08.2004] KDN166,190..(DCB,XTR)..ATM..TH..CBU |
32941-26170 |
US $25.86 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[08.2002 - 11.2004] KDN166..ATM |
90301-11006 |
from US $2.50 |
||
|
32921J
|
32921J
90467-16022 Clip(For Water Inlet Hose)[09.2001 - 08.2004] KDN166,190..(DCB,XTR)..ATM..TH..CBU;RZN149,154..(THDCB,THSCB,THXTR)..ATM |
90467-16022 |
from US $2.32 |
||
|
32922
|
32922
32922-35430 Tube, Oil Cooler Outlet, No.1OIL COOLER OUTLET, NO.1 [12.2001 - 08.2004] KDN166,190..(DCB,XTR)..ATM..TH..CBU |
32922-35430 |
US $25.19 |
||
|
32922A
|
32922A
90445-17112 Hose(For Oil Cooler Inlet)[12.2001 - 08.2004] KDN166,190..(DCB,XTR)..ATM..TH..CBU |
90445-17112 |
US $24.86 |
||
|
32923B
|
32923B
32909-35210 Clamp, Automatic Transmission Oil Cooler Tube, No.1AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 [12.2001 - 08.2004] KDN166,190..ATM..TH..CBU |
32909-35210 |
US $14.27 |
||
|
32924
|
32924
32909-35220 Clamp, Automatic Transmission Oil Cooler Tube, No.1[08.2002 - 08.2004] KDN166..ATM |
32909-35220 |
US $12.67 |
||
|
32925
|
32925
32909-60060 Clamp, Automatic Transmission Oil Cooler Tube, No.4OIL COOLER TUBE, NO.3 [12.2001 - 08.2004] KDN166,190..ATM..TH..CBU |
32909-60060 |
US $11.94 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[09.2001 - 08.2004] KDN166,190..(DCB,XTR)..ATM..TH..CBU;RZN149,154..(THDCB,THSCB,THXTR)..ATM L=35,ID=10 |
32926-30020 |
US $3.05 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161961216
|
9161961216
91619-61216 New Genuine Part |
91619-61216 |
US $2.15 |
||
