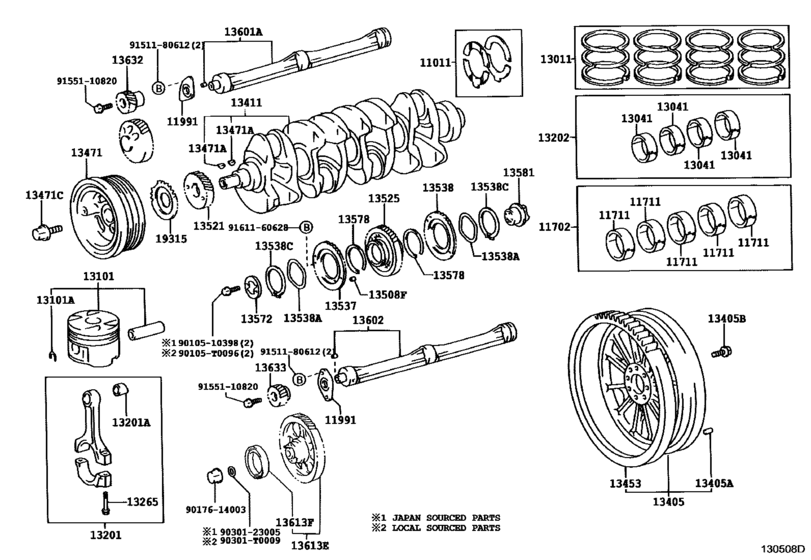

Crankshaft & Piston ([08.2002 - ] (0208- )1KDFTV) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- KDN166
- grade
- SR
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- TH
- CAB
- SRWGN
- Model
- HILUX
- From
- 08.2002
- To
- 11.2004
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-0L010
Washer Set, Crankshaft Thrust
[08.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 STD,(L) |
11011-0L010 |
— | ||
|
11011
|
11011
11011-30010 Washer Set, Crankshaft Thrust[02.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 STD,(J) |
11011-30010 |
from US $31.04 |
||
|
11011
|
11011
11011-67020 Washer Set, Crankshaft Thrust[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 STD,(J) |
11011-67020 |
from US $41.50 |
||
|
11011
|
11011
11012-30010 Washer Set, Crankshaft Thrust[02.2004 - 04.2005] 1K#,2KDFTV..KDN145,15#,16#,190,KZN165,190 O/S 0.125 |
11012-30010 |
US $26.38 |
||
|
11011
|
11011
11012-67020 Washer Set, Crankshaft Thrust[09.2001 - 01.2004] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 O/S 0.125 |
11012-67020 |
US $40.33 |
||
| replacement | |||||
|
11011
|
11011
11012-30010 Washer Set, Crankshaft Thrust[09.2001 - 01.2004] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 O/S 0.125 |
11012-30010 |
US $26.38 |
||
|
11011
|
11011
11013-30010 Washer Set, Crankshaft Thrust[02.2004 - 04.2005] 1K#,2KDFTV..KDN145,15#,16#,190,KZN165,190 O/S 0.250 |
11013-30010 |
US $24.46 |
||
|
11011
|
11011
11013-67020 Washer Set, Crankshaft Thrust[09.2001 - 01.2004] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 O/S 0.250 |
11013-67020 |
US $40.33 |
||
| replacement | |||||
|
11011
|
11011
11013-30010 Washer Set, Crankshaft Thrust[09.2001 - 01.2004] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 O/S 0.250 |
11013-30010 |
US $24.46 |
||
|
11702
|
11702
11704-30020 Bearing Set, Crankshaft (0.25)[02.2004 - 04.2005] 1K#,2KDFTV..KDN145,15#,16#,190,KZN165,190 U/S 0.25 |
11704-30020 |
from US $132.80 |
||
|
11702
|
11702
11704-67021
Bearing Set, Crankshaft (0.25)
[09.2001 - 01.2004] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 U/S 0.25 |
11704-67021 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-30020 Bearing Set, Crankshaft (0.25)[09.2001 - 01.2004] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 U/S 0.25 |
11704-30020 |
from US $132.80 |
||
|
11702
|
11702
11705-30020 Bearing Set, Crankshaft (0.50)[02.2004 - 04.2005] 1K#,2KDFTV..KDN145,15#,16#,190,KZN165,190 U/S 0.50 |
11705-30020 |
from US $131.02 |
||
|
11702
|
11702
11705-67021
Bearing Set, Crankshaft
[09.2001 - 01.2004] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 U/S 0.50 |
11705-67021 |
— | ||
| replacement | |||||
|
11702
|
11702
11705-30020 Bearing Set, Crankshaft (0.50)[09.2001 - 01.2004] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 U/S 0.50 |
11705-30020 |
from US $131.02 |
||
|
11711
|
11711
11701-0L010-02
Bearing, Crankshaft
[08.2002 - 08.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 2,(L):REFER R/M |
11701-0L010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-0L020-02 Bearing, CrankshaftCRANKSHAFT [08.2002 - 08.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 2,(L):REFER R/M |
11701-0L020-02 |
US $20.30 |
||
|
11711
|
11711
11701-0L010-03
Bearing, Crankshaft
[08.2002 - 08.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 3,(L):REFER R/M |
11701-0L010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-0L020-03
Bearing, Crankshaft
[08.2002 - 08.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 3,(L):REFER R/M |
11701-0L020-03 |
— | ||
|
11711
|
11711
11701-0L010-04
Bearing, Crankshaft
[08.2002 - 08.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 4,(L):REFER R/M |
11701-0L010-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-0L020-04
Bearing, Crankshaft
[08.2002 - 08.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 4,(L):REFER R/M |
11701-0L020-04 |
— | ||
|
11711
|
11711
11701-0L010-05
Bearing, Crankshaft
[08.2002 - 08.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 5,(L):REFER R/M |
11701-0L010-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-0L020-05
Bearing, Crankshaft
[08.2002 - 08.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 5,(L):REFER R/M |
11701-0L020-05 |
— | ||
|
11711
|
11711
11701-0L010-06
Bearing, Crankshaft
[08.2002 - 08.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 6,(L):REFER R/M |
11701-0L010-06 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-0L020-06 Bearing, CrankshaftCRANKSHAFT [08.2002 - 08.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 6,(L):REFER R/M |
11701-0L020-06 |
US $21.76 |
||
|
11711
|
11711
11701-0L020-02 Bearing, CrankshaftCRANKSHAFT [08.2004 - 03.2005] 1KDFTV,2KDFTV..KDN155,16#,190 MARK2,(L):REFER R/M |
11701-0L020-02 |
US $20.30 |
||
|
11711
|
11711
11701-0L020-03
Bearing, Crankshaft
[08.2004 - 03.2005] 1KDFTV,2KDFTV..KDN155,16#,190 MARK3,(L):REFER R/M |
11701-0L020-03 |
— | ||
|
11711
|
11711
11701-0L020-04
Bearing, Crankshaft
[08.2004 - 03.2005] 1KDFTV,2KDFTV..KDN155,16#,190 MARK4,(L):REFER R/M |
11701-0L020-04 |
— | ||
|
11711
|
11711
11701-0L020-05
Bearing, Crankshaft
[08.2004 - 03.2005] 1KDFTV,2KDFTV..KDN155,16#,190 MARK5,(L):REFER R/M |
11701-0L020-05 |
— | ||
|
11711
|
11711
11701-0L020-06 Bearing, CrankshaftCRANKSHAFT [08.2004 - 03.2005] 1KDFTV,2KDFTV..KDN155,16#,190 MARK6,(L):REFER R/M |
11701-0L020-06 |
US $21.76 |
||
|
11711
|
11711
11701-30020-02 Bearing, Crankshaft[02.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK2,(J):REFER R/M |
11701-30020-02 |
from US $22.17 |
||
|
11711
|
11711
11701-30020-03 Bearing, Crankshaft[02.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK3,(J):REFER R/M |
11701-30020-03 |
from US $22.52 |
||
|
11711
|
11711
11701-30020-04 Bearing, Crankshaft[02.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK4,(J):REFER R/M |
11701-30020-04 |
from US $22.37 |
||
|
11711
|
11711
11701-30020-05 Bearing, Crankshaft[02.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK5,(J):REFER R/M |
11701-30020-05 |
from US $22.23 |
||
|
11711
|
11711
11701-30020-06 Bearing, Crankshaft[02.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK6,(J):REFER R/M |
11701-30020-06 |
from US $25.21 |
||
|
11711
|
11711
11701-67021-02
Bearing, Crankshaft
[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 2,(J):REFER R/M |
11701-67021-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-30020-02 Bearing, Crankshaft[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 2,(J):REFER R/M |
11701-30020-02 |
from US $22.17 |
||
|
11711
|
11711
11701-67021-03 Bearing, Crankshaft[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 3,(J):REFER R/M |
11701-67021-03 |
US $61.73 |
||
| replacement | |||||
|
11711
|
11711
11701-30020-03 Bearing, Crankshaft[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 3,(J):REFER R/M |
11701-30020-03 |
from US $22.52 |
||
|
11711
|
11711
11701-67021-04 Bearing, Crankshaft[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 4,(J):REFER R/M |
11701-67021-04 |
US $61.73 |
||
| replacement | |||||
|
11711
|
11711
11701-30020-04 Bearing, Crankshaft[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 4,(J):REFER R/M |
11701-30020-04 |
from US $22.37 |
||
|
11711
|
11711
11701-67021-05 Bearing, Crankshaft[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 5,(J):REFER R/M |
11701-67021-05 |
US $61.73 |
||
| replacement | |||||
|
11711
|
11711
11701-30020-05 Bearing, Crankshaft[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 5,(J):REFER R/M |
11701-30020-05 |
from US $22.23 |
||
|
11711
|
11711
11701-67021-06 Bearing, Crankshaft[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 6,(J):REFER R/M |
11701-67021-06 |
US $61.73 |
||
| replacement | |||||
|
11711
|
11711
11701-30020-06 Bearing, Crankshaft[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 6,(J):REFER R/M |
11701-30020-06 |
from US $25.21 |
||
|
11991
|
11991
11991-0L010
Washer, Balanceshaft Thrust
[04.2004 - 11.2004] 1KDFTV..KDN151,166 (L) |
11991-0L010 |
— | ||
|
11991
|
11991
11991-67010 Washer, Balanceshaft Thrust[09.2001 - 04.2004] 1KDFTV..KDN151,166 |
11991-67010 |
from US $7.16 |
||
|
13011
|
13011
13011-30040 Ring Set, PistonPISTON [08.2002 - 09.2004] 1KDFTV..KDN151,166 STD |
13011-30040 |
US $308.67 |
||
|
13011
|
13011
13013-30040 Ring Set, PistonPISTON [08.2002 - 11.2004] 1KDFTV..KDN151,166 O/S 0.50 |
13013-30040 |
US $366.91 |
||
|
13011
|
13011
13014-30040 Ring Set, PistonPISTON [08.2002 - 11.2004] 1KDFTV..KDN151,166 O/S 0.75 |
13014-30040 |
US $365.46 |
||
|
13011
|
13011
13015-30040 Ring Set, PistonPISTON [08.2002 - 11.2004] 1KDFTV..KDN151,166 O/S 1.00 |
13015-30040 |
US $365.46 |
||
|
13041
|
13041
13041-0L010-02
Bearing, Connecting Rod
[08.2002 - 07.2004] 1KDFTV..KDN151,166 MARK 2,(L):REFER R/M |
13041-0L010-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0L020-02 Bearing, Connecting RodCONNECTING ROD [08.2002 - 07.2004] 1KDFTV..KDN151,166 MARK 2,(L):REFER R/M |
13041-0L020-02 |
US $13.01 |
||
|
13041
|
13041
13041-0L010-03
Bearing, Connecting Rod
[08.2002 - 07.2004] 1KDFTV..KDN151,166 MARK 3,(L):REFER R/M |
13041-0L010-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0L020-03 Bearing, Connecting RodCONNECTING ROD [08.2002 - 07.2004] 1KDFTV..KDN151,166 MARK 3,(L):REFER R/M |
13041-0L020-03 |
US $15.48 |
||
|
13041
|
13041
13041-0L010-04
Bearing, Connecting Rod
[08.2002 - 07.2004] 1KDFTV..KDN151,166 MARK 4,(L):REFER R/M |
13041-0L010-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0L020-04 Bearing, Connecting RodCONNECTING ROD [08.2002 - 07.2004] 1KDFTV..KDN151,166 MARK 4,(L):REFER R/M |
13041-0L020-04 |
US $15.48 |
||
|
13041
|
13041
13041-0L010-05
Bearing, Connecting Rod
[08.2002 - 07.2004] 1KDFTV..KDN151,166 MARK 5,(L):REFER R/M |
13041-0L010-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0L020-05
Bearing, Connecting Rod
[08.2002 - 07.2004] 1KDFTV..KDN151,166 MARK 5,(L):REFER R/M |
13041-0L020-05 |
— | ||
|
13041
|
13041
13041-0L010-06
Bearing, Connecting Rod
[08.2002 - 07.2004] 1KDFTV..KDN151,166 MARK 6,(L):REFER R/M |
13041-0L010-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0L020-06
Bearing, Connecting Rod
[08.2002 - 07.2004] 1KDFTV..KDN151,166 MARK 6,(L):REFER R/M |
13041-0L020-06 |
— | ||
|
13041
|
13041
13041-30020-02 Bearing, Connecting Rod[02.2004 - 07.2004] 1KDFTV..KDN151,166 MARK2,(J):REFER R/M |
13041-30020-02 |
from US $14.63 |
||
|
13041
|
13041
13041-30020-03 Bearing, Connecting Rod[02.2004 - 07.2004] 1KDFTV..KDN151,166 MARK3,(J):REFER R/M |
13041-30020-03 |
from US $14.70 |
||
|
13041
|
13041
13041-30020-04 Bearing, Connecting Rod[02.2004 - 07.2004] 1KDFTV..KDN151,166 MARK4,(J):REFER R/M |
13041-30020-04 |
from US $15.03 |
||
|
13041
|
13041
13041-30020-05 Bearing, Connecting Rod[02.2004 - 07.2004] 1KDFTV..KDN151,166 MARK5,(J):REFER R/M |
13041-30020-05 |
from US $14.59 |
||
|
13041
|
13041
13041-30020-06 Bearing, Connecting Rod[02.2004 - 07.2004] 1KDFTV..KDN151,166 MARK6,(J):REFER R/M |
13041-30020-06 |
US $30.07 |
||
|
13041
|
13041
13041-67031-02
Bearing, Connecting Rod
[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 2,(J):REFER R/M |
13041-67031-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-30020-02 Bearing, Connecting Rod[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 2,(J):REFER R/M |
13041-30020-02 |
from US $14.63 |
||
|
13041
|
13041
13041-67031-03 Bearing, Connecting Rod[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 3,(J):REFER R/M |
13041-67031-03 |
US $34.51 |
||
| replacement | |||||
|
13041
|
13041
13041-30020-03 Bearing, Connecting Rod[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 3,(J):REFER R/M |
13041-30020-03 |
from US $14.70 |
||
|
13041
|
13041
13041-67031-04
Bearing, Connecting Rod
[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 4,(J):REFER R/M |
13041-67031-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-30020-04 Bearing, Connecting Rod[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 4,(J):REFER R/M |
13041-30020-04 |
from US $15.03 |
||
|
13041
|
13041
13041-67031-05 Bearing, Connecting Rod[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 5,(J):REFER R/M |
13041-67031-05 |
US $34.51 |
||
| replacement | |||||
|
13041
|
13041
13041-30020-05 Bearing, Connecting Rod[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 5,(J):REFER R/M |
13041-30020-05 |
from US $14.59 |
||
|
13041
|
13041
13041-67031-06 Bearing, Connecting Rod[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 6,(J):REFER R/M |
13041-67031-06 |
US $34.51 |
||
| replacement | |||||
|
13041
|
13041
13041-30020-06 Bearing, Connecting Rod[08.2002 - 02.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 MARK 6,(J):REFER R/M |
13041-30020-06 |
US $30.07 |
||
|
13101
|
13101
13101-30040-01
Piston Sub-Assy, W/pin
[08.2002 - 07.2004] 1KDFTV..KDN151,166 STD,MARK 1,REFER REPAIR MANUAL |
13101-30040-01 |
— | ||
|
13101
|
13101
13101-30040-02
Piston Sub-Assy, W/pin
[08.2002 - 07.2004] 1KDFTV..KDN151,166 STD,MARK 2,REFER REPAIR MANUAL |
13101-30040-02 |
— | ||
|
13101
|
13101
13101-30040-03
Piston Sub-Assy, W/pin
[08.2002 - 07.2004] 1KDFTV..KDN151,166 STD,MARK 3,REFER REPAIR MANUAL |
13101-30040-03 |
— | ||
|
13101
|
13101
13103-30040 Piston Sub-Assy, W/pinW/PIN [08.2002 - 11.2004] 1KDFTV..KDN151,166 O/S 0.50 |
13103-30040 |
US $241.70 |
||
|
13101
|
13101
13104-30040 Piston Sub-Assy, W/pinW/PIN [08.2002 - 11.2004] 1KDFTV..KDN151,166 O/S 0.75 |
13104-30040 |
US $238.78 |
||
|
13101
|
13101
13105-30040 Piston Sub-Assy, W/pinW/PIN [08.2002 - 11.2004] 1KDFTV..KDN151,166 O/S 1.00 |
13105-30040 |
US $238.78 |
||
|
13101A
|
13101A
90520-37014 Ring, Hole Snap(For Piston Pin)[09.2001 - 07.2004] 1KDFTV..KDN151,166 |
90520-37014 |
US $0.70 |
||
|
13201
|
13201
13201-0L020
Rod Sub-Assy, Connecting
[10.2002 - 07.2004] 1KDFTV..KDN151,166 (L) |
13201-0L020 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-30051 Rod Sub-Assy, ConnectingCONNECTING [10.2002 - 07.2004] 1KDFTV..KDN151,166 (L) |
13201-30051 |
from US $156.94 |
||
|
13201
|
13201
13201-30020 Rod Sub-Assy, Connecting[08.2002 - 10.2002] 1KDFTV..KDN151,166 |
13201-30020 |
US $187.82 |
||
| replacement | |||||
|
13201
|
13201
13201-30021 Rod Sub-Assy, ConnectingCONNECTING [08.2002 - 10.2002] 1KDFTV..KDN151,166 |
13201-30021 |
US $132.28 |
||
|
13201A
|
13201A
90999-73143
Bush(For Connecting Rod Small End)
[08.2002 - 11.2004] 1KDFTV..KDN151,166 |
90999-73143 |
— | ||
| replacement | |||||
|
13201A
|
13201A
90999-73156 Bush(For Connecting Rod Small End)[08.2002 - 11.2004] 1KDFTV..KDN151,166 |
90999-73156 |
from US $7.47 |
||
|
13202
|
13202
13204-30020 Bearing Set, Connecting Rod (0.25)[02.2004 - 04.2005] 2KDFTV..KDN190..DCB,XTR;1K#,2KDFTV..KDN145,15#,16#,KZN165,190 U/S 0.25 |
13204-30020 |
from US $70.16 |
||
|
13202
|
13202
13204-67031
Bearing Set, Connecting Rod (0.25)
[09.2001 - 01.2004] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 U/S 0.25 |
13204-67031 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-30020 Bearing Set, Connecting Rod (0.25)[09.2001 - 01.2004] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 U/S 0.25 |
13204-30020 |
from US $70.16 |
||
|
13202
|
13202
13205-30020 Bearing Set, Connecting Rod (0.50)[02.2004 - 04.2005] 2KDFTV..KDN190..DCB,XTR;1K#,2KDFTV..KDN145,15#,16#,KZN165,190 U/S 0.50 |
13205-30020 |
from US $69.17 |
||
|
13202
|
13202
13205-67031
Bearing Set, Connecting Rod
[09.2001 - 01.2004] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 U/S 0.50 |
13205-67031 |
— | ||
| replacement | |||||
|
13202
|
13202
13205-30020 Bearing Set, Connecting Rod (0.50)[09.2001 - 01.2004] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 U/S 0.50 |
13205-30020 |
from US $69.17 |
||
|
13265
|
13265
13265-67021 Bolt, Connecting Rod[10.2002 - 07.2004] 1KDFTV..KDN151,166 |
13265-67021 |
from US $4.58 |
||
|
13405
|
13405
13405-0L030
Flywheel Sub-Assy
[12.2001 - 03.2005] 1KDFTV,2KDFTV..KDN166,190..ATM (L) |
13405-0L030 |
— | ||
|
13405
|
13405
13405-67030 Flywheel Sub-Assy[12.2001 - 03.2005] 1KDFTV,2KDFTV..KDN166,190..ATM (J) |
13405-67030 |
US $400.92 |
||
|
13405A
|
13405A
90250-05121 Pin, Straight, No.3(For Camshaft Knock)[12.2001 - 03.2003] 1KDFTV,2KDFTV..KDN166,190..ATM L=15,OD=5 |
90250-05121 |
from US $1.19 |
||
|
13405A
|
13405A
90250-T0013
Pin, Straight(For Flywheel)
[03.2003 - 03.2005] 1KDFTV,2KDFTV..KDN166,190..ATM L=15,OD=5,(L) |
90250-T0013 |
— | ||
|
13411
|
13411
13401-0L020
Crankshaft
[02.2004 - 09.2004] 1KDFTV..KDN151,166 (L) |
13401-0L020 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-30050 Crankshaft[02.2004 - 09.2004] 1KDFTV..KDN151,166 (L) |
13401-30050 |
US $1,330.78 |
||
|
13411
|
13411
13401-30010 Crankshaft[09.2001 - 02.2004] 1KDFTV..KDN151,166 |
13401-30010 |
from US $1,093.83 |
||
|
13453
|
13453
13453-0L010
Gear, Flywheel Ring
[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
13453-0L010 |
— | ||
|
13453
|
13453
13453-67030 Gear, Flywheel Ring[11.2001 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
13453-67030 |
from US $49.94 |
||
|
13471
|
13471
13408-0L010
Pulley Sub-Assy, Crankshaft
[09.2002 - 12.2003] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
13408-0L010 |
— | ||
| replacement | |||||
|
13471
|
13471
13408-0L020
Pulley Sub-Assy, Crankshaft
[09.2002 - 12.2003] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
13408-0L020 |
— | ||
|
13471
|
13471
13408-0L020
Pulley Sub-Assy, Crankshaft
[12.2003 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
13408-0L020 |
— | ||
|
13471
|
13471
13408-30010 Pulley, Crankshaft[10.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
13408-30010 |
US $241.70 |
||
| replacement | |||||
|
13471
|
13471
13408-30011 Pulley, CrankshaftCRANKSHAFT [10.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
13408-30011 |
from US $180.80 |
||
|
13471A
|
13471A
90280-T0002
Key, Crankshaft(For Crankshaft Pulley Set)
[02.2004 - 09.2004] 1KDFTV..KDN166..SRWGN (L) |
90280-T0002 |
— | ||
|
13471A
|
13471A
95161-30516 Key(For Oil Pump Drive Spline)[10.2001 - 09.2004] 1KDFTV..KDN166..SRWGN (J) |
95161-30516 |
from US $1.05 |
||
|
13471C
|
13471C
90119-18003 Bolt(For Crankshaft Pulley Set)[09.2001 - 04.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
90119-18003 |
from US $4.56 |
||
|
13471C
|
13471C
90119-T0218
Bolt(For Crankshaft Pulley Set)
[04.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
90119-T0218 |
— | ||
|
13508F
|
13508F
90250-05027 Pin, Straight[09.2001 - 09.2004] 1KDFTV..KDN166..SRWGN |
90250-05027 |
from US $0.78 |
||
|
13521
|
13521
13521-67020 Gear Or Sprocket, Crankshaft Timing[09.2001 - 09.2004] 1KDFTV..KDN166..SRWGN |
13521-67020 |
from US $37.44 |
||
|
13525
|
13525
13508-67011 Gear, Idle, No.1[09.2001 - 09.2004] 1KDFTV..KDN166..SRWGN |
13508-67011 |
from US $59.51 |
||
|
13537
|
13537
13537-67900 Gear, Idle Sub, No.1[09.2001 - 09.2004] 1KDFTV..KDN166..SRWGN |
13537-67900 |
from US $28.59 |
||
|
13538
|
13538
13538-67900 Gear, Idle Sub, No.2[09.2001 - 09.2004] 1KDFTV..KDN166..SRWGN |
13538-67900 |
from US $27.87 |
||
|
13538A
|
13538A
90206-69001 Washer, Wave[09.2001 - 09.2004] 1KDFTV..KDN166..SRWGN |
90206-69001 |
from US $1.23 |
||
|
13538C
|
13538C
90520-58002 Ring, Shaft Snap[09.2001 - 09.2004] 1KDFTV..KDN166..SRWGN |
90520-58002 |
US $1.51 |
||
|
13572
|
13572
13572-0L010
Plate, Idle Gear Thrust
[11.2003 - 09.2004] 1KDFTV..KDN166..SRWGN (L) |
13572-0L010 |
— | ||
|
13572
|
13572
13572-67041 Plate, Idle Gear Thrust[09.2001 - 11.2003] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
13572-67041 |
from US $10.30 |
||
|
13578
|
13578
13578-67010 Spring, Idle Gear[09.2001 - 09.2004] 1KDFTV..KDN166..SRWGN |
13578-67010 |
from US $7.37 |
||
|
13581
|
13581
13581-67041 Shaft, Idle Gear, No.1[09.2001 - 09.2004] 1KDFTV..KDN166..SRWGN |
13581-67041 |
from US $26.73 |
||
|
13601A
|
13601A
13601-67020 Balanceshaft Sub-Assy, No.1[09.2001 - 04.2005] 1KZTE..KZN190..SR;1K#..KDN151,166,KZN165 |
13601-67020 |
US $131.04 |
||
|
13602
|
13602
13602-67020
Balanceshaft Sub-Assy, No.2
[09.2001 - 04.2005] 1KZTE..KZN190..SR;1K#..KDN151,166,KZN165 |
13602-67020 |
— | ||
| replacement | |||||
|
13602
|
13602
13602-0L020 Balanceshaft Sub-Assy, No.2[09.2001 - 04.2005] 1KZTE..KZN190..SR;1K#..KDN151,166,KZN165 |
13602-0L020 |
from US $95.32 |
||
|
13613E
|
13613E
13603-30020 Gear, Injection[10.2001 - 09.2004] 1KDFTV..KDN151,166;2KDFTV..KDN165,190..IV1 |
13603-30020 |
from US $95.90 |
||
|
13613F
|
13613F
90363-67001 Bearing, Radial Ball[10.2001 - 09.2004] 1KDFTV..KDN166..SRWGN |
90363-67001 |
from US $19.89 |
||
|
13632
|
13632
13632-67010 Gear, Balanceshaft Driven, No.1[09.2001 - 09.2004] 1KDFTV..KDN166..SRWGN |
13632-67010 |
from US $12.17 |
||
|
13633
|
13633
13633-67010 Gear, Balanceshaft Driven, No.2[09.2001 - 09.2004] 1KDFTV..KDN166..SRWGN |
13633-67010 |
from US $31.63 |
||
|
19315
|
19315
19315-0L010 Plate, Crank Angle Sensor, No.1CRANK ANGLE SENSOR, NO.1 [08.2002 - 09.2004] 1KDFTV,2KDFTV..KDN155,166..SCB,SRWGN (L) |
19315-0L010 |
US $13.67 |
||
|
19315
|
19315
19315-30010 Plate, Crank Angle Sensor, No.1[08.2002 - 09.2004] 1KDFTV,2KDFTV..KDN155,166..SCB,SRWGN (J) |
19315-30010 |
from US $13.67 |
||
|
90105T0096
|
90105T0096
90105-T0096
BOLT WASHER BASED H
|
90105-T0096 |
— | ||
|
90301T0009
|
90301T0009
90301-T0009
RING O
|
90301-T0009 |
— | ||
|
9010510398
|
9010510398
90105-10398 BOLT WASHER BASED |
90105-10398 |
US $2.48 |
||
|
9017614003
|
9017614003
90176-14003 NUT CAP |
90176-14003 |
US $4.48 |
||
|
9030123005
|
9030123005
90301-23005 O-RING |
90301-23005 |
from US $2.71 |
||
|
9151180612
|
9151180612
91511-80612 New Genuine Part |
91511-80612 |
US $1.60 |
||
|
9155110820
|
9155110820
91551-10820 New Genuine Part |
91551-10820 |
US $1.97 |
||
|
9161160628
|
9161160628
91611-60628 Bolt, Hexagon |
91611-60628 |
US $1.51 |
||
