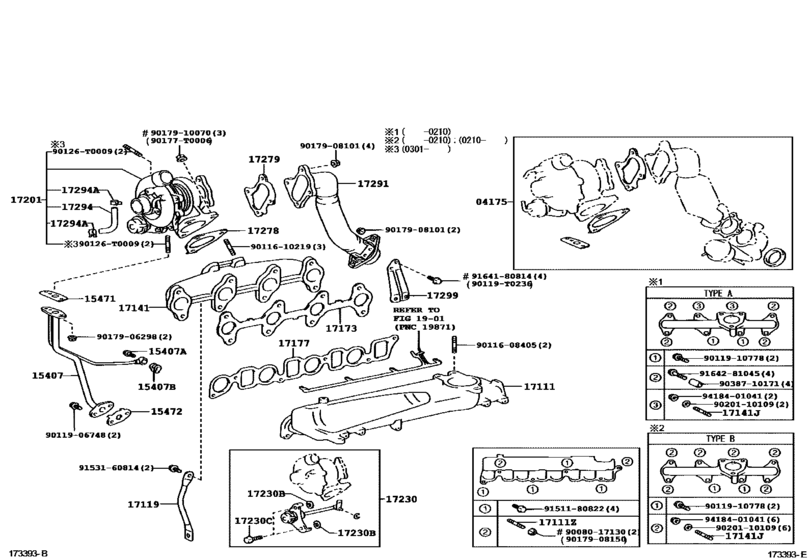

Manifold ([08.2002 - ] (0208- )1KDFTV) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- KDN166
- grade
- SR
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- TH
- CAB
- SRWGN
- Model
- HILUX
- From
- 08.2002
- To
- 11.2004
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-0L050
Gasket Kit, Turbocharger
[01.2004 - 11.2004] 1KDFTV..KDN151,166 |
04175-0L050 |
— | ||
| replacement | |||||
|
04175
|
04175
04175-0L113
Gasket Kit, Turbocharger
[01.2004 - 11.2004] 1KDFTV..KDN151,166 |
04175-0L113 |
— | ||
|
04175
|
04175
04175-30030 Gasket Kit, Turbocharger[09.2002 - 01.2004] 1KDFTV..KDN151,166;2KDFTV..KDN165,190..SRWGN |
04175-30030 |
US $64.47 |
||
|
15407
|
15407
15407-0L010
Pipe Sub-Assy, Turbo Oil Inlet
[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
15407-0L010 |
— | ||
| replacement | |||||
|
15407
|
15407
15407-0L012
Pipe Sub-Assy, Turbo Oil Inlet
[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
15407-0L012 |
— | ||
|
15407
|
15407
15407-30030
Pipe Sub-Assy, Turbo Oil Inlet
[10.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
15407-30030 |
— | ||
| replacement | |||||
|
15407
|
15407
15407-30033 Pipe Sub-Assy, Turbo Oil Inlet[10.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
15407-30033 |
US $34.09 |
||
|
15407
|
15407
15407-30031
Pipe Sub-Assy, Turbo Oil Inlet
[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
15407-30031 |
— | ||
| replacement | |||||
|
15407
|
15407
15407-30033 Pipe Sub-Assy, Turbo Oil Inlet[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
15407-30033 |
US $34.09 |
||
|
15407A
|
15407A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[10.2001 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
90401-12097 |
from US $2.94 |
||
|
15407A
|
15407A
90401-T0004
Bolt, Union(For Turbo Oil Inlet Pipe)
[04.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
90401-T0004 |
— | ||
|
15407B
|
15407B
90430-T0006
Gasket(For Turbo Oil Inlet Pipe)
[04.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
90430-T0006 |
— | ||
|
15407B
|
15407B
90904-30004 Gasket(For Turbo Oil Inlet Pipe)[10.2001 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
90904-30004 |
from US $5.38 |
||
|
15471
|
15471
15471-0L010
Gasket, Turbo Oil Inlet
[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
15471-0L010 |
— | ||
| replacement | |||||
|
15471
|
15471
15471-0L011 Gasket, Turbo Oil Inlet[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
15471-0L011 |
US $3 |
||
|
15471
|
15471
15471-30010
Gasket, Turbo Oil Inlet
[10.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
15471-30010 |
— | ||
| replacement | |||||
|
15471
|
15471
15471-30011 Gasket, Turbo Oil InletTURBO OIL INLET [10.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
15471-30011 |
from US $2.83 |
||
|
15472
|
15472
15472-0L010 Gasket, Turbo Oil Outlet, No.1TURBO OIL OUTLET, NO.1 [09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
15472-0L010 |
US $3.69 |
||
|
15472
|
15472
15472-67010
Gasket, Turbo Oil Outlet, No.1
[09.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
15472-67010 |
— | ||
| replacement | |||||
|
15472
|
15472
15472-30010 Gasket, Turbo Oil Outlet, No.1[09.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
15472-30010 |
from US $2.01 |
||
|
17111
|
17111
17111-0L011
Manifold, Intake
[12.2001 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
17111-0L011 |
— | ||
|
17111
|
17111
17111-30071 Manifold, Intake[02.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
17111-30071 |
US $384.38 |
||
|
17111Z
|
17111Z
90116-T0011
Bolt, Stud(For Intake Manifold To Cylinder Head)
[06.2004 - 09.2004] 1KDFTV,2KDFTV..KDN155,166..SCB,SRWGN (L) |
90116-T0011 |
— | ||
|
17111Z
|
17111Z
92122-80822 Bolt, Stud(For Water Outlet)[10.2001 - 06.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
92122-80822 |
from US $1.03 |
||
|
17119
|
17119
17118-0L010
Stay, Manifold, No.2
[08.2002 - 11.2004] 1KDFTV,2KDFTV..KDN16#,190..SRWGN (L) |
17118-0L010 |
— | ||
|
17119
|
17119
17118-30020 Stay, Manifold, No.2MANIFOLD, NO.2 [08.2002 - 11.2004] 1KDFTV,2KDFTV..KDN16#,190..SRWGN (J) |
17118-30020 |
US $36.55 |
||
|
17141
|
17141
17141-0L010
Manifold, Exhaust
[07.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
17141-0L010 |
— | ||
|
17141
|
17141
17141-30030 Manifold, ExhaustEXHAUST [07.2002 - 10.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
17141-30030 |
US $331.97 |
||
| replacements | |||||
|
17141
|
17141
17141-30031
Manifold, Exhaust
[07.2002 - 10.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
17141-30031 |
— | ||
|
17141
|
17141
90126-10017 Bolt, Stud(For Exhaust Manifold, Rh)[07.2002 - 10.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
90126-10017 |
US $7.71 |
||
|
17141
|
17141
90201-10109 WASHER PLATE[07.2002 - 10.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
90201-10109 |
US $1.97 |
||
|
17141
|
17141
94184-01041 Nut[07.2002 - 10.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
94184-01041 |
from US $0.78 |
||
|
17141
|
17141
17141-30031
Manifold, Exhaust
[10.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (J) |
17141-30031 |
— | ||
|
17141J
|
17141J
90126-10017 Bolt, Stud(For Exhaust Manifold, Rh)[08.2002 - 09.2004] 1KDFTV..KDN166..SRWGN |
90126-10017 |
US $7.71 |
||
|
17173
|
17173
17173-0L010
Gasket, Exhaust Manifold To Head
[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
17173-0L010 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-0L011 Gasket, Exhaust Manifold To Head[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
17173-0L011 |
US $16.38 |
||
|
17173
|
17173
17173-30020 Gasket, Exhaust Manifold To Head[09.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
17173-30020 |
US $19.66 |
||
|
17177
|
17177
17177-0L010
Gasket, Intake Manifold To Head, No.1
[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
17177-0L010 |
— | ||
|
17177
|
17177
17177-30010
Gasket, Intake Manifold To Head, No.1
[10.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
17177-30010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-30011 Gasket, Intake Manifold To Head, No.1[10.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
17177-30011 |
from US $6.79 |
||
|
17201
|
17201
17201-0L010
Turbocharger Sub-Assy
[01.2003 - 11.2004] 1KDFTV..KDN166..SRWGN |
17201-0L010 |
— | ||
|
17201
|
17201
17201-30050
Turbocharger Sub-Assy
[08.2002 - 01.2003] 1KDFTV..KDN151,166 |
17201-30050 |
— | ||
| replacement | |||||
|
17201
|
17201
17201-0L010
Turbocharger Sub-Assy
[08.2002 - 01.2003] 1KDFTV..KDN151,166 |
17201-0L010 |
— | ||
|
17230
|
17230
17230-09020
Actuator Assy, W/bracket
[01.2004 - 11.2004] 1KDFTV..KDN151,166 |
17230-09020 |
— | ||
| replacement | |||||
|
17230
|
17230
17230-39035
Actuator Assy, W/bracket
[01.2004 - 11.2004] 1KDFTV..KDN151,166 |
17230-39035 |
— | ||
|
17230
|
17230
17230-39035
Actuator Assy, W/bracket
[08.2002 - 01.2004] 1KDFTV..KDN151,166 |
17230-39035 |
— | ||
|
17230B
|
17230B
90201-06042 Washer, Plate(For Repair Actuator Set)[08.2002 - 11.2004] 1KDFTV,2KDFTV..KDN16#,190..SRWGN T=0.5 |
90201-06042 |
US $0.73 |
||
|
17230B
|
17230B
90201-06043 Washer, Plate(For Repair Actuator Set)[08.2002 - 11.2004] 1KDFTV,2KDFTV..KDN16#,190..SRWGN T=1.0 |
90201-06043 |
US $1.08 |
||
|
17230B
|
17230B
90201-06044 Washer, Plate(For Repair Actuator Set)[08.2002 - 11.2004] 1KDFTV,2KDFTV..KDN16#,190..SRWGN T=2.0 |
90201-06044 |
US $1.10 |
||
|
17230B
|
17230B
90201-06045 Washer, Plate(For Repair Actuator Set)[08.2002 - 11.2004] 1KDFTV,2KDFTV..KDN16#,190..SRWGN T=3.0 |
90201-06045 |
US $1.02 |
||
|
17230C
|
17230C
91621-60620 Bolt, W/washer(For Repair Actuator Set)[08.2002 - 11.2004] 1KDFTV,2KDFTV..KDN16#,190..SRWGN |
91621-60620 |
US $0.69 |
||
|
17278
|
17278
17278-67010 Gasket, Turbo To Exhaust Manifold[08.2002 - 11.2004] 1KDFTV..KDN166..SRWGN |
17278-67010 |
from US $8.79 |
||
|
17279
|
17279
17279-30020 Gasket, Turbine Outlet Elbow[08.2002 - 11.2004] 1KDFTV..KDN151,166 |
17279-30020 |
from US $3.76 |
||
|
17291
|
17291
17291-30020 Elbow, Turbine OutletTURBINE OUTLET [08.2002 - 11.2004] 1KDFTV..KDN151,166 |
17291-30020 |
US $173.26 |
||
|
17294
|
17294
90445-12151 Hose, Actuator[10.2001 - 01.2003] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
90445-12151 |
US $2.91 |
||
|
17294
|
17294
90445-T0001
Hose, Actuator
[01.2003 - 07.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
90445-T0001 |
— | ||
| replacement | |||||
|
17294
|
17294
90445-T0010
Hose, Actuator
[01.2003 - 07.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
90445-T0010 |
— | ||
|
17294
|
17294
90445-T0010
Hose, Actuator
[07.2004 - 11.2004] 1KDFTV,2KDFTV..KDN16#,190..SRWGN |
90445-T0010 |
— | ||
|
17294A
|
17294A
90466-T0001
Clip(For Actuator Hose)
[01.2003 - 07.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
90466-T0001 |
— | ||
| replacement | |||||
|
17294A
|
17294A
90466-T0008
Clip(For Actuator Hose)
[01.2003 - 07.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
90466-T0008 |
— | ||
|
17294A
|
17294A
90466-T0008
Clip(For Actuator Hose)
[07.2004 - 11.2004] 1KDFTV,2KDFTV..KDN16#,190..SRWGN |
90466-T0008 |
— | ||
|
17294A
|
17294A
96132-51100 Clip (For Hose)[09.2001 - 01.2003] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
96132-51100 |
from US $1.42 |
||
|
17299
|
17299
17299-0L010 Stay, Turbine Outlet ElbowTURBINE OUTLET ELBOW [08.2002 - 11.2004] 1KDFTV..KDN166..SRWGN |
17299-0L010 |
US $8.79 |
||
| replacement | |||||
|
17299
|
17299
17299-30030
Stay, Turbine Outlet Elbow
[08.2002 - 11.2004] 1KDFTV..KDN166..SRWGN |
17299-30030 |
— | ||
|
90119T0236
|
90119T0236
90119-T0236
New Genuine Part
|
90119-T0236 |
— | ||
|
90126T0009
|
90126T0009
90126-T0009
STUD HEXALOBULAR
|
90126-T0009 |
— | ||
|
90177T0006
|
90177T0006
90177-T0006 Nut, Exhaust Pipe Set Stud Bolt |
90177-T0006 |
from US $1.01 |
||
| replacement | |||||
|
90177T0006
|
90177T0006
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
|
9008017130
|
9008017130
90080-17130 Nut (For Transmission Control Cable) |
90080-17130 |
US $0.21 |
||
|
9011608405
|
9011608405
90116-08405 New Genuine Part |
90116-08405 |
US $4.08 |
||
|
9011610219
|
9011610219
90116-10219
Bolt, Stud(For Turbocharger)
|
90116-10219 |
— | ||
|
9011906748
|
9011906748
90119-06748 BOLT WWASHER |
90119-06748 |
US $1.97 |
||
|
9011910778
|
9011910778
90119-10778 BOLT W-WASHER |
90119-10778 |
US $2.51 |
||
|
9017906298
|
9017906298
90179-06298 NUT |
90179-06298 |
US $1.61 |
||
|
9017908101
|
9017908101
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
|
9020110109
|
9020110109
90201-10109 WASHER PLATE |
90201-10109 |
US $1.97 |
||
|
9038710171
|
9038710171
90387-10171 Collar(For Exhaust Manifold) |
90387-10171 |
US $3.58 |
||
|
9151180822
|
9151180822
91511-80822
New Genuine Part
|
91511-80822 |
— | ||
|
9153160814
|
9153160814
91531-60814 New Genuine Part |
91531-60814 |
US $1.75 |
||
|
9164180814
|
9164180814
91641-80814 BOLTWWASHER |
91641-80814 |
US $1.97 |
||
|
9164281045
|
9164281045
91642-81045 BOLT WWASHER |
91642-81045 |
US $6.12 |
||
|
9418401041
|
9418401041
94184-01041 Nut |
94184-01041 |
from US $0.78 |
||
