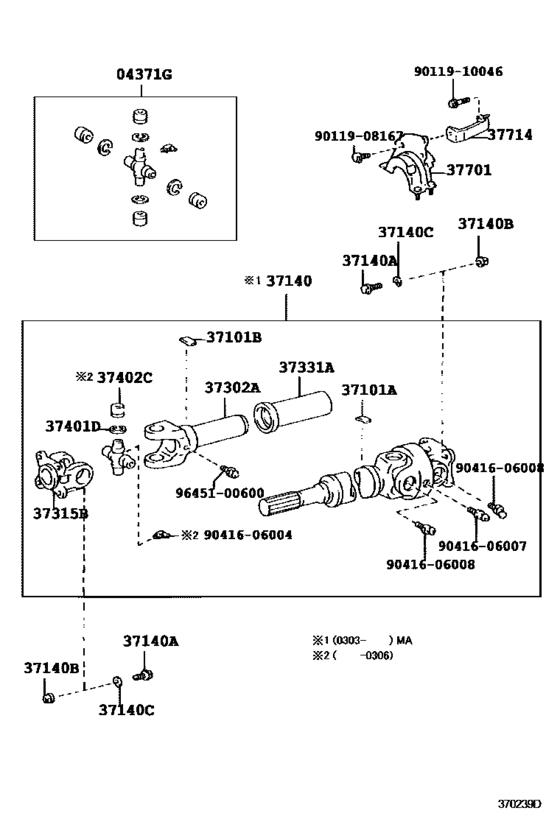

Propeller Shaft & Universal Joint ([08.1997 - ] FRONT (9708- )KDN16#,KZN165) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- KDN166
- grade
- SR
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- TH
- CAB
- SRWGN
- Model
- HILUX
- From
- 08.2002
- To
- 11.2004
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04371G
|
04371G
04371-60070 Spider Kit, Propeller Shaft Universal Joint[06.2003 - 08.2005] KDN16#,KZN165,LN16#,17#,RZN16#,VZN167,172..ARL,GEN,MA,SA,TH |
04371-60070 |
from US $48.65 |
||
|
37101A
|
37101A
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 10G,L=20.7 |
90937-01132 |
US $3.94 |
||
|
37101A
|
37101A
90937-01136 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 20G,L=41.4 |
90937-01136 |
US $3.20 |
||
|
37101A
|
37101A
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 2G,T=2.0 |
90937-01147 |
US $2.04 |
||
|
37101A
|
37101A
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 4G,T=2.0 |
90937-01148 |
US $2.51 |
||
|
37101A
|
37101A
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 6G,L=12.4 |
90937-01149 |
US $2.51 |
||
|
37101A
|
37101A
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 8G,L=16.6 |
90937-01150 |
US $2.51 |
||
|
37101A
|
37101A
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 12G,L=24.9 |
90937-01151 |
US $2.69 |
||
|
37101A
|
37101A
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 14G,L=29.0 |
90937-01152 |
US $2.51 |
||
|
37101A
|
37101A
90937-01153 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 16G,L=33.2 |
90937-01153 |
US $1.31 |
||
|
37101A
|
37101A
90937-01154 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 18G,L=37.3 |
90937-01154 |
US $1.75 |
||
|
37101A
|
37101A
90937-01155 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 22G,L=45.6 |
90937-01155 |
US $1.75 |
||
|
37101A
|
37101A
90937-01156 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 24G,L=49.7 |
90937-01156 |
US $1.75 |
||
|
37101A
|
37101A
90937-01157 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 26G,L=53.9 |
90937-01157 |
US $1.75 |
||
|
37101A
|
37101A
90937-01158 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 28G,L=58.1 |
90937-01158 |
US $1.75 |
||
|
37101A
|
37101A
90937-01201 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 30G,T=4.5,L=27.4 |
90937-01201 |
US $6.55 |
||
|
37101A
|
37101A
90937-01202 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 32G,T=4.5,L=29.2 |
90937-01202 |
US $6.55 |
||
|
37101A
|
37101A
90937-01203 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 34G,T=4.5,L=31.0 |
90937-01203 |
US $6.55 |
||
|
37101A
|
37101A
90937-01204 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 36G,T=4.5,L=32.9 |
90937-01204 |
US $6.55 |
||
|
37101A
|
37101A
90937-01205 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 38G,T=4.5,L=34.7 |
90937-01205 |
US $6.55 |
||
|
37101A
|
37101A
90937-01206 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 40G,T=4.5,L=36.5 |
90937-01206 |
US $6.55 |
||
|
37101A
|
37101A
90937-01207 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 42G,T=4.5,L=38.4 |
90937-01207 |
US $6.55 |
||
|
37101A
|
37101A
90937-01208 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 44G,T=4.5,L=40.2 |
90937-01208 |
US $6.55 |
||
|
37101A
|
37101A
90937-01209 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 46G,T=4.5,L=42.0 |
90937-01209 |
US $6.55 |
||
|
37101A
|
37101A
90937-01210 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 48G,T=4.5,L=43.8 |
90937-01210 |
US $6.55 |
||
|
37101A
|
37101A
90937-01211 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#,190..SRWGN 50G,T=4.5,L=45.7 |
90937-01211 |
US $6.55 |
||
|
37101B
|
37101B
90937-01184 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 4G,T=1.6 |
90937-01184 |
US $1.31 |
||
|
37101B
|
37101B
90937-01191 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 8G,T=1.6 |
90937-01191 |
US $2.18 |
||
|
37101B
|
37101B
90937-01192 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 12G,T=4.5 |
90937-01192 |
US $2.77 |
||
|
37101B
|
37101B
90937-01193 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 16G,T=4.5 |
90937-01193 |
US $2.91 |
||
|
37101B
|
37101B
90937-01194 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 20G,T=4.5 |
90937-01194 |
US $3.06 |
||
|
37101B
|
37101B
90937-01198 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 24G,T=4.5,L=25.1 |
90937-01198 |
US $3.06 |
||
|
37101B
|
37101B
90937-01199 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 28G,T=6,L=22.7 |
90937-01199 |
US $4.12 |
||
|
37101B
|
37101B
90937-01200 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 32G,T=6,L=24.3 |
90937-01200 |
US $4.95 |
||
|
37101B
|
37101B
90937-01268 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 36G,L=23.1,T=8.0 |
90937-01268 |
US $4.37 |
||
|
37101B
|
37101B
90937-01269 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 40G,L=25.6 |
90937-01269 |
US $4.37 |
||
|
37101B
|
37101B
90937-01270 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 44G,L=22.6 |
90937-01270 |
US $4.37 |
||
|
37101B
|
37101B
90937-01271 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 48G,L=24.6 |
90937-01271 |
US $4.37 |
||
|
37101B
|
37101B
90937-01272 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 52G,L=26.7 |
90937-01272 |
US $4.37 |
||
|
37101B
|
37101B
90937-01273 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 56G,L=28.7 |
90937-01273 |
US $4.37 |
||
|
37101B
|
37101B
90937-01274 Piece, Balance, No.1 (For Propeller Shaft)[08.2001 - 11.2004] KDN16#..SRWGN 60G,L=28.7 |
90937-01274 |
US $4.37 |
||
|
37140A
|
37140A
90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.2001 - 11.2004] KDN16#..SRWGN |
90105-10085 |
from US $1.17 |
||
|
37140B
|
37140B
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)[08.2001 - 11.2004] KDN16#..SRWGN |
90179-10059 |
from US $2.24 |
||
|
37140C
|
37140C
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
[08.2001 - 11.2004] KDN16#..SRWGN |
90204-10002 |
— | ||
| replacement | |||||
|
37140C
|
37140C
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)[08.2001 - 11.2004] KDN16#..SRWGN |
90560-10H00 |
from US $1.93 |
||
|
37302A
|
37302A
37302-35050 Yoke Sub-Assy, Universal Joint Sleeve[10.2001 - 11.2004] KDN16#..SRWGN |
37302-35050 |
from US $139.09 |
||
|
37315B
|
37315B
37315-35070 Yoke, Universal Joint Flange[08.2001 - 11.2004] KDN16#..SRWGN |
37315-35070 |
from US $60.33 |
||
|
37331A
|
37331A
37305-35020 Cover Sub-Assy, Sliding Shaft Dust[08.2001 - 11.2004] KDN16#..SRWGN |
37305-35020 |
US $20.27 |
||
|
37401D
|
37401D
90520-25039 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.29,MARK 1 |
90520-25039 |
US $1.61 |
||
|
37401D
|
37401D
90520-25040 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.31,MARK 2 |
90520-25040 |
US $1.16 |
||
|
37401D
|
37401D
90520-25041 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.33,NO MARK |
90520-25041 |
US $1.10 |
||
|
37401D
|
37401D
90520-25042 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.35,BROWN |
90520-25042 |
US $1.61 |
||
|
37401D
|
37401D
90520-25043 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.37,BLUE |
90520-25043 |
US $1.61 |
||
|
37401D
|
37401D
90520-25044 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.39,MARK 6 |
90520-25044 |
US $1.16 |
||
|
37401D
|
37401D
90520-25045 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.41,MARK 7 |
90520-25045 |
US $1.61 |
||
|
37401D
|
37401D
90520-25046 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.43,MARK 8 |
90520-25046 |
US $1.61 |
||
|
37401D
|
37401D
90520-25047 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.45,MARK 9 |
90520-25047 |
US $1.61 |
||
|
37401D
|
37401D
90520-25048 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.47,MARK 10 |
90520-25048 |
US $1.16 |
||
|
37401D
|
37401D
90520-25049 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.49,MARK A |
90520-25049 |
US $1.16 |
||
|
37401D
|
37401D
90520-25050 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.51,MARK B |
90520-25050 |
US $1.61 |
||
|
37401D
|
37401D
90520-25051 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.53,MARK C |
90520-25051 |
US $1.16 |
||
|
37401D
|
37401D
90520-25052 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.55,MARK D |
90520-25052 |
US $1.61 |
||
|
37401D
|
37401D
90520-25053 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.57,MARK E |
90520-25053 |
US $1.61 |
||
|
37401D
|
37401D
90520-25054 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.19,MARK D |
90520-25054 |
US $0.44 |
||
|
37401D
|
37401D
90520-25055 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.21,MARK E |
90520-25055 |
US $0.73 |
||
|
37401D
|
37401D
90520-25056 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.23,MARK F |
90520-25056 |
US $0.69 |
||
|
37401D
|
37401D
90520-25057 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.25,MARK G |
90520-25057 |
US $0.69 |
||
|
37401D
|
37401D
90520-25058 Ring, Hole Snap (For Spider Bearing)[08.2001 - 11.2004] KDN16#..SRWGN T=2.27,MARK H |
90520-25058 |
US $0.69 |
||
|
37402C
|
37402C
37402-30011
Bearing Sub-Assy, Universal Joint Spider
[08.2002 - 06.2003] KDN166..ATM |
37402-30011 |
— | ||
| replacements | |||||
|
37402C
|
37402C
04371-60070 Spider Kit, Propeller Shaft Universal Joint[08.2002 - 06.2003] KDN166..ATM |
04371-60070 |
from US $48.65 |
||
|
37402C
|
37402C
04371-60100 Spider Kit, Universal Joint(For Propeller Shaft)[08.2002 - 06.2003] KDN166..ATM |
04371-60100 |
from US $49.16 |
||
|
37701
|
37701
37701-35110 Cover Sub-Assy, Propeller Shaft Dust[09.2001 - 11.2004] KDN16#..SRWGN |
37701-35110 |
US $78.62 |
||
|
37714
|
37714
37714-04010
Stay, Propeller Shaft Dust Cover
[09.2001 - 11.2004] KDN16#..SRWGN |
37714-04010 |
— | ||
|
9011908167
|
9011908167
90119-08167 New Genuine Part |
90119-08167 |
US $1.79 |
||
|
9011910046
|
9011910046
90119-10046 Bolt, No.1 (For Center Support Bearing) |
90119-10046 |
US $2.15 |
||
|
9041606004
|
9041606004
90416-06004 FITTING |
90416-06004 |
from US $5.38 |
||
|
9041606007
|
9041606007
90416-06007 New Genuine Part |
90416-06007 |
US $7.34 |
||
|
9041606008
|
9041606008
90416-06008 New Genuine Part |
90416-06008 |
US $5.77 |
||
|
9645100600
|
9645100600
96451-00600 Fitting, Grease Small(For Tail Gate Lock Link) |
96451-00600 |
from US $1.44 |
||
