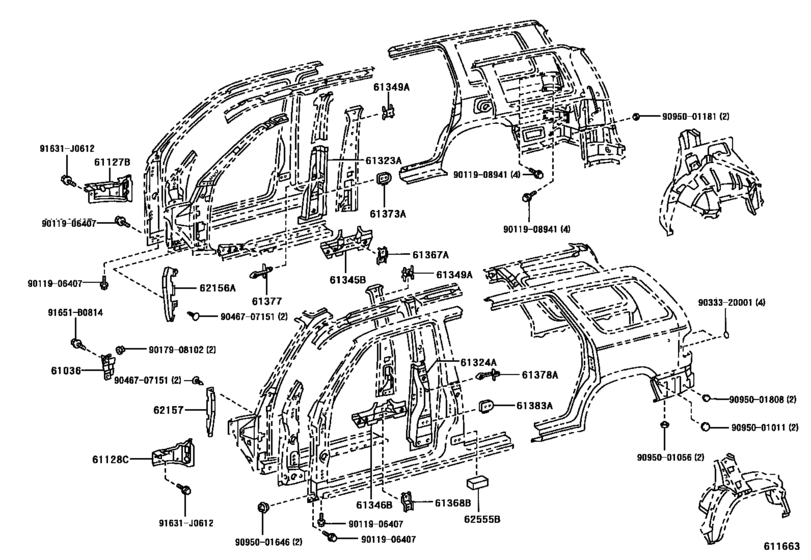

Side Member ([08.2002 - ] (0208- )SRWGN) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- KDN166
- grade
- SR
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- TH
- CAB
- SRWGN
- Model
- HILUX
- From
- 08.2002
- To
- 11.2004
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61036
|
61036
61036-35010 Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh[08.2001 - 11.2004] KDN16#,190..SRWGN |
61036-35010 |
US $44.12 |
||
|
61127B
|
61127B
61127-35040 Reinforcement, Cowl Side Panel, No.2 RhCOWL SIDE PANEL, NO.2 RH [08.2001 - 08.2004] LN150..DLX;LN145..DCB..TH;KDN145,15#,16#,190..TH..CBU |
61127-35040 |
from US $30.89 |
||
|
61128C
|
61128C
61128-35040 Reinforcement, Cowl Side Panel, No.2 LhCOWL SIDE PANEL, NO.2 LH [08.2001 - 08.2004] LN150..DLX;LN145..DCB..TH;KDN145,15#,16#,190..TH..CBU |
61128-35040 |
from US $30.89 |
||
|
61323A
|
61323A
61323-35030 Reinforcement, Center Body Pillar, Lower Rh[08.2001 - 08.2004] KDN145,16#,190,LN145..(DCB,SRWGN)..TH |
61323-35030 |
US $96.10 |
||
|
61324A
|
61324A
61324-35030 Reinforcement, Center Body Pillar, Lower Lh[08.2001 - 11.2004] KDN16#,190..SRWGN |
61324-35030 |
from US $96.10 |
||
|
61345B
|
61345B
61345-35030 Pillar, Center Body, Inner Lower Rh[08.2001 - 08.2004] KDN145,16#,190,LN145..(DCB,SRWGN)..TH |
61345-35030 |
from US $66.03 |
||
|
61346B
|
61346B
61346-35030 Pillar, Center Body, Inner Lower Lh[08.2001 - 11.2004] KDN16#,190..SRWGN |
61346-35030 |
from US $66.03 |
||
|
61349A
|
61349A
61349-35050 Patch, Belt Anchor To Center PillarBELT ANCHOR TO CENTER PILLAR [08.2001 - 08.2004] KDN145,16#,190,LN145..(DCB,SRWGN)..TH |
61349-35050 |
US $13.54 |
||
|
61367A
|
61367A
61367-35020 Reinforcement, Belt Anchor To Center Pillar, Lower Rh[08.2001 - 08.2004] KDN145,16#,190,LN145..(DCB,SRWGN)..TH |
61367-35020 |
US $11.21 |
||
|
61368B
|
61368B
61368-35020 Reinforcement, Belt Anchor To Center Pillar, Lower Lh[08.2001 - 11.2004] KDN16#,190..SRWGN |
61368-35020 |
US $11.21 |
||
|
61373A
|
61373A
61373-35010 Reinforce, Center Pillar Lower Hinge, No.1 Rh[08.2001 - 08.2004] KDN145,16#,190,LN145..(DCB,SRWGN)..TH |
61373-35010 |
US $9.61 |
||
|
61377
|
61377
61377-35010 Bracket, Rear Door Check Arm, Rh[08.2001 - 08.2004] KDN145,16#,190,LN145..(DCB,SRWGN)..TH |
61377-35010 |
US $8.15 |
||
|
61378A
|
61378A
61377-35010 Bracket, Rear Door Check Arm, Rh[08.2001 - 11.2004] KDN16#,190..SRWGN |
61377-35010 |
US $8.15 |
||
|
61383A
|
61383A
61373-35010 Reinforce, Center Pillar Lower Hinge, No.1 Rh[08.2001 - 11.2004] KDN16#,190..SRWGN |
61373-35010 |
US $9.61 |
||
|
62156A
|
62156A
62156-35020 Insulator, Cowl Side, Rh[08.2001 - 11.2004] KDN16#,190..SRWGN |
62156-35020 |
US $11.07 |
||
|
62157
|
62157
62157-35020 Insulator, Cowl Side, Lh[08.2001 - 11.2004] KDN16#,190..SRWGN |
62157-35020 |
US $11.07 |
||
|
62555B
|
62555B
62555-35010 Pad, Pillar, No.5[08.2001 - 11.2004] KDN16#,190..SRWGN |
62555-35010 |
US $10.05 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9011906407
|
9011906407
90119-06407 New Genuine Part |
90119-06407 |
US $2.15 |
||
|
9011908941
|
9011908941
90119-08941 BOLT, W/WASHER |
90119-08941 |
US $3.40 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.87 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.21 |
||
|
9046707151
|
9046707151
90467-07151 Clip(For Luggage Compartment Trim Inner Cover) |
90467-07151 |
US $1.89 |
||
|
9095001011
|
9095001011
90950-01011 Grommet(For Upper Back Panel) |
90950-01011 |
US $3.05 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $1.99 |
||
|
9095001181
|
9095001181
90950-01181 Plug, Hole(For Front Fender Apron) |
90950-01181 |
US $3.94 |
||
|
9095001646
|
9095001646
90950-01646 New Genuine Part |
90950-01646 |
US $1.97 |
||
|
9095001808
|
9095001808
90950-01808 PLUG HOLE |
90950-01808 |
US $1.97 |
||
