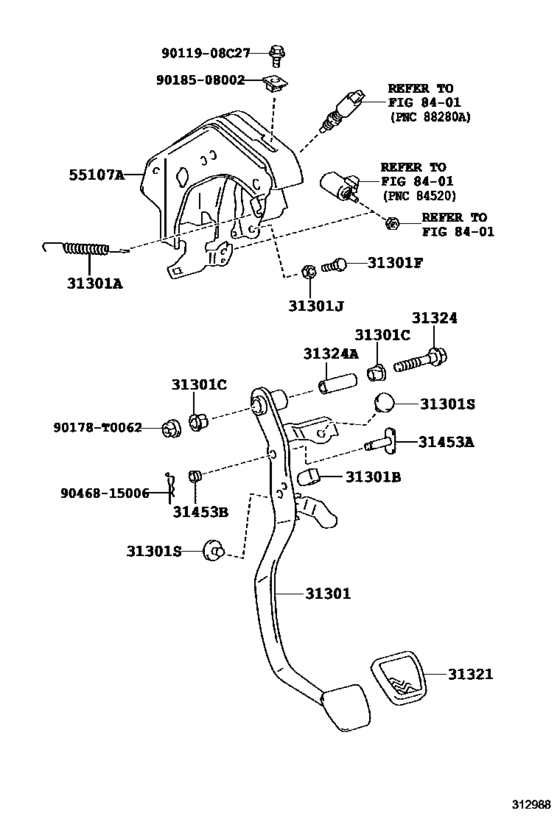

Clutch Pedal & Flexible Hose ([05.2015 - ] CLUTCH PEDAL (1505- )KUN112,122,TGN110,120,121,136..RHD..5 F) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- KUN122
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- CAB
- THSCB
- Model
- HILUX
- From
- 05.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Model Mark
- S
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-KK020
Pedal Sub-Assy, Clutch
[05.2015 - 07.2017] KUN122..RHD..(H,S) |
31301-KK020 |
— | ||
|
31301A
|
31301A
90507-T0001 Spring(For Clutch Pedal)[05.2015 - 07.2017] KUN112..S;KUN122..RHD..(H,S) |
90507-T0001 |
US $1.40 |
||
|
31301B
|
31301B
90541-T0004
Cushion, No.1(For Clutch Pedal)
[05.2015 - 07.2017] KUN122..RHD..(H,S) |
90541-T0004 |
— | ||
|
31301C
|
31301C
90386-13015 Bush(For Clutch Pedal)[05.2015 - 07.2017] KUN122..RHD..(H,S);GUN126,135,KUN112,126,135..(M,S)..(GCC,VN) |
90386-13015 |
from US $0.64 |
||
|
31301F
|
31301F
90101-T0005
Bolt(For Clutch Pedal Stopper)
[05.2015 - 07.2017] KUN122..RHD..(H,S);GUN126,135,KUN112,126,135..(M,S)..(GCC,VN) |
90101-T0005 |
— | ||
|
31301J
|
31301J
90170-T0011
Nut(For Clutch Pedal Stopper)
[05.2015 - 07.2017] KUN122..RHD..(H,S);GUN126,135,KUN112,126,135..(M,S)..(GCC,VN) |
90170-T0011 |
— | ||
|
31301S
|
31301S
90541-06036 Cushion, No.1(For Clutch Pedal)[05.2015 - 07.2017] KUN122..RHD..(H,S);GUN126,135,KUN112,126,135..(M,S)..(GCC,VN) |
90541-06036 |
from US $0.94 |
||
| replacement | |||||
|
31301S
|
31301S
90541060361
CUSHION
[05.2015 - 07.2017] KUN122..RHD..(H,S);GUN126,135,KUN112,126,135..(M,S)..(GCC,VN) |
90541060361 |
— | ||
|
31321
|
31321
31321-02020
Pad, Clutch Pedal
[05.2015 - 07.2017] KUN122..RHD..(H,S);GUN126,135,KUN112,126,135..(M,S)..(GCC,VN) |
31321-02020 |
— | ||
|
31324
|
31324
90105-T0112 Shaft, Clutch Pedal[05.2015 - 07.2017] KUN122..RHD..(H,S);GUN126,135,KUN112,126,135..(M,S)..(GCC,VN) |
90105-T0112 |
US $1.44 |
||
|
31324A
|
31324A
90387-10003 Collar, Clutch Pedal Shaft[05.2015 - 07.2017] KUN122..RHD..(H,S);GUN126,135,KUN112,126,135..(M,S)..(GCC,VN) |
90387-10003 |
from US $3.94 |
||
|
31453A
|
31453A
90240-T0002
Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
[05.2015 - 07.2017] KUN122..RHD..(H,S);GUN126,135,KUN112,126,135..(M,S)..(GCC,VN) L=31.9 |
90240-T0002 |
— | ||
|
31453B
|
31453B
90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)[05.2015 - 07.2017] KUN122..RHD..(H,S);GUN126,135,KUN112,126,135..(M,S)..(GCC,VN) |
90386-08002 |
from US $3.22 |
||
|
55107A
|
55107A
55107-KK020
Support Sub-Assy, Clutch Pedal
[05.2015 - 07.2017] KUN112..S;KUN122..RHD..(H,S) |
55107-KK020 |
— | ||
|
90178T0062
|
90178T0062
90178-T0062 NUT FLANGE |
90178-T0062 |
US $1.40 |
||
|
9011908C27
|
9011908C27
90119-08C27 BOLT WWASHER |
90119-08C27 |
US $1.61 |
||
|
9018508002
|
9018508002
90185-08002 New Genuine Part |
90185-08002 |
US $2.62 |
||
|
9046815006
|
9046815006
90468-15006 New Genuine Part |
90468-15006 |
US $1.02 |
||
