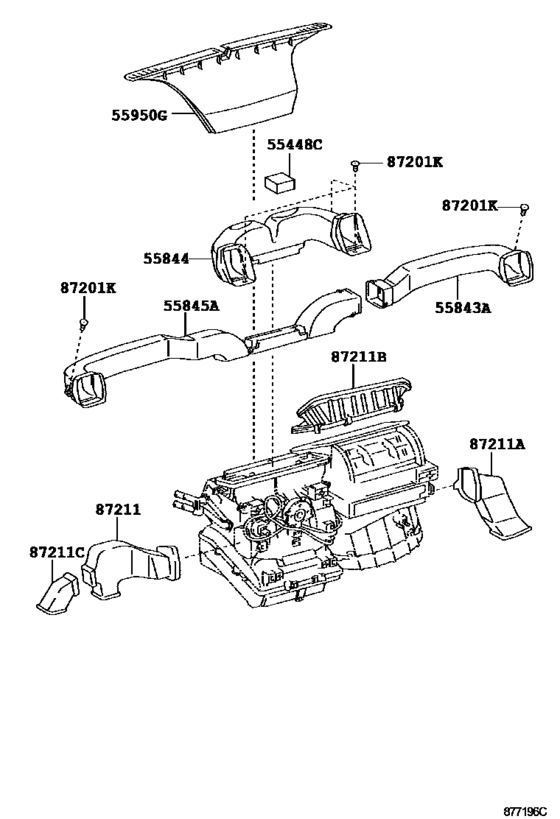

Heating & Air Conditioning - Control & Air Duct ([11.2004 - ] AIR DUCT (0411- )LHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2010 - 2011
- Sales region
- U.S.A.
- Frame
- KUN15
- grade
- STD
- ENGINE
- 2KDFTV
- DESTINATION
- PHL
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2010
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55448C
|
55448C
55448-0K010
Cushion, Instrument Panel, No.1
[08.2008 -] KUN26..IDN,PHL,TH;KUN15,16,25,3#,TGN10,15,16,26..(DCB,SCB,SMT,XTR)..(GEN,IDN,MA,PH L,TH) |
55448-0K010 |
— | ||
|
55843A
|
55843A
55843-0K010 Duct, Heater To Register, No.1HEATER TO REGISTER, NO.1 [08.2008 -] GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC, SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA) ;GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,S |
55843-0K010 |
US $37.44 |
||
|
55844
|
55844
55844-0K020 Duct, Heater To Register, No.2HEATER TO REGISTER, NO.2 [08.2008 - 07.2011] TGN36..4FC..DLX..LA;KUN15,2#,35,TGN15,16,26..LHD..(DCB,SCB,XTR)..(GEN,PHL) |
55844-0K020 |
US $29.56 |
||
|
55845A
|
55845A
55845-0K010
Duct, Heater To Register, No.3
[08.2008 - 09.2011] TGN16..XTR;KUN26,TGN16..PHL,TH;KUN16..(SCB,SMT)..CBU;KUN16,TGN36..4FC..(LA,TH);KUN 15,25,3#,TGN10,15,26..(DCB,SCB,SMT,XTR)..(GEN,IDN,MA,PHL,TH) |
55845-0K010 |
— | ||
|
87201K
|
87201K
90467-T0002-B0 Clip, Instrument PanelINSTRUMENT PANEL [08.2008 - 04.2012] TGN36..CBU;GGN25..5FC..SA;TGN16..SMT..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN2 6..LHD..(GEN,LA,SA);KUN15,35..(DLX,STD)..PHL;GGN25,TGN10..ANCOM,ARL,IDN,LA;TGN16.. (DCB,SCB,XTR)..(ARL,GEN,SA,TH);GGN15,35,KUN15,16,2#,3#,LAN15,25,35,TG |
90467-T0002-B0 |
US $0.61 |
||
|
87211
|
87211
87211-0K030 Duct, Air, No.1AIR, NO.1 [08.2008 - 07.2011] KUN10,15,2#,35,TGN1#,26..LHD..(GCC,GEN,PHL) |
87211-0K030 |
US $38.51 |
||
|
87211A
|
87211A
87211-0K040 Duct, Air, No.2AIR, NO.2 [08.2008 - 07.2011] KUN10,15,2#,35,TGN1#,26..LHD..(GCC,GEN,PHL) |
87211-0K040 |
US $24.55 |
||
|
87211B
|
87211B
87211-0K150
Duct, Air, No.3
[08.2008 - 07.2011] KUN10,15,2#,35,TGN1#,26..LHD..(GCC,GEN,PHL) |
87211-0K150 |
— | ||
|
87211C
|
87211C
87211-0K330
Duct, Air, No.4
[08.2008 - 07.2011] KUN10,15,2#,35,TGN1#,26..LHD..(GCC,GEN,PHL) |
87211-0K330 |
— |
