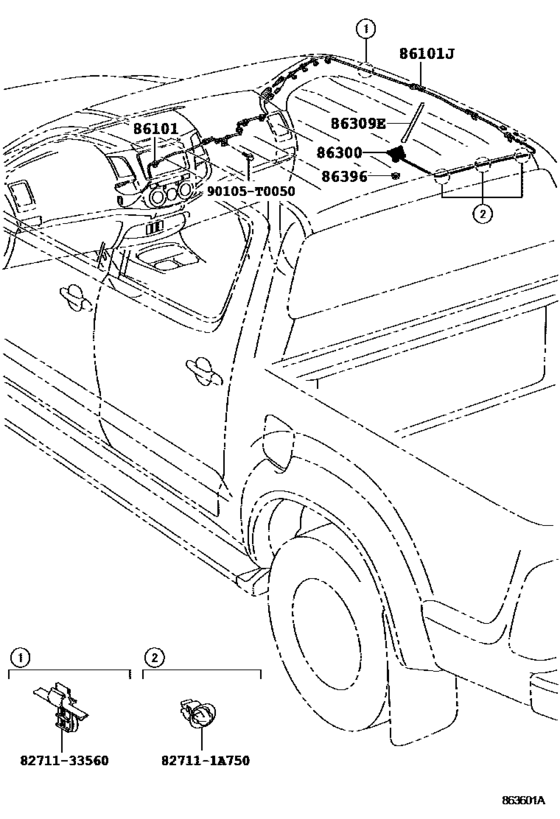

Antenna ([10.2008 - ] POLE ANTENNA (0810- )DCB,SCB..SA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- KUN26
- grade
- SR
- ENGINE
- 1KDFTV
- DESTINATION
- SA
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 04.2005
- To
- 08.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86101
|
86101
86101-0K010
Cord Sub-Assy, Antenna
[01.2005 - 09.2010] TGN36..SCB;KUN26..4FC..LA;KUN25..SCB..MA;TGN26..ANCOM,SA;TGN36..DCB..(ANCOM,SA);KU N26..DCB..5F..(LA,SA);KUN35..DLX..(ANCOM,LA,SA);TGN26,36..DCB..5F..DLX..LA;GGN25,K UN25..SR..(ANCOM,MA);GGN25,KUN15,25,36,LAN15,25,35,TGN15,16..(DCB,SCB |
86101-0K010 |
— | ||
|
86101
|
86101
86101-0K250
Cord Sub-Assy, Antenna
[10.2008 - 08.2011] KUN25,35..RHD..SCB..SA;GGN25,35,KUN26,3#,TGN36..(DCB,SCB)..SR..SA; KUN15,TGN15..RHD..DLX..SA AUDIO-AM/FM CD RDS 2SPEAKER |
86101-0K250 |
— | ||
|
86101J
|
86101J
86101-0K110
Cord Sub-Assy, Antenna, No.2
[10.2008 - 08.2011] GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA |
86101-0K110 |
— | ||
|
86300
|
86300
86300-0K010 Antenna Assy, W/holder[01.2005 - 09.2010] TGN36..SCB;KUN26..4FC..LA;KUN25..SCB..MA;TGN26..ANCOM,SA;TGN36..DCB..(ANCOM,SA);KU N26..DCB..5F..(LA,SA);KUN35..DLX..(ANCOM,LA,SA);TGN26,36..DCB..5F..DLX..LA;GGN25,K UN25..SR..(ANCOM,MA);GGN25,KUN15,25,36,LAN15,25,35,TGN15,16..(DCB,SCB |
86300-0K010 |
from US $50.80 |
||
|
86300
|
86300
86300-71020
Antenna Assy, W/holder
[10.2008 - 08.2011] GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA |
86300-71020 |
— | ||
|
86309E
|
86309E
86309-48040
Pole Sub-Assy, Pillar Antenna
[10.2008 - 08.2011] GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA |
86309-48040 |
— | ||
|
86396
|
86396
86396-20040 Nut, Antenna[10.2008 - 08.2011] GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA |
86396-20040 |
US $10.21 |
||
|
90105T0050
|
90105T0050
90105-T0050
New Genuine Part
|
90105-T0050 |
— | ||
|
827111A750
|
827111A750
82711-1A750 Clamp, No.1(For Back Door Lock Control Cable) |
82711-1A750 |
US $1.08 |
||
|
8271133560
|
8271133560
82711-33560 Wire, Fuse To Fuse(for Combustion Heater) |
82711-33560 |
US $2.33 |
