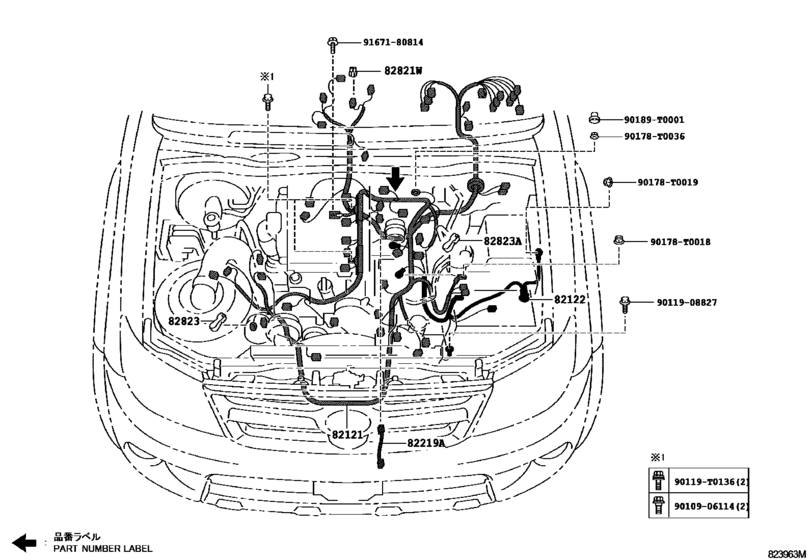

Wiring & Clamp ([08.2004 - ] ENGINE (0408- )KUN1#,2#,3#) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Frame
- KUN26
- grade
- SR
- ENGINE
- 1KDFTV
- DESTINATION
- SA
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 10.2008
- To
- 08.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-0K663
Wire, Engine
[10.2008 - 10.2009] KUN26..5F..SA |
82121-0K663 |
— | ||
|
82121
|
82121
82121-0KR41
Wire, Engine
[10.2010 - 08.2011] KUN26..5F..(IDN,SA,TH) |
82121-0KR41 |
— | ||
|
82121
|
82121
82121-0KY30
Wire, Engine
[10.2009 - 10.2010] KUN26..(DCB,SCB)..5F..SA |
82121-0KY30 |
— | ||
|
82122
|
82122
82122-0K110
Wire, Engine, No.2
[10.2008 - 08.2011] KUN15..SCB..SA;KUN2#,3#..(DCB,SCB)..5F..SA |
82122-0K110 |
— | ||
|
82823
|
82823
82823-22050 Cap, Terminal, No.1[08.2008 -] GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;KUN15..LHD..SCB ..SA;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;KUN15..LHD..(GCC,GEN,PHL);GGN25..D CB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR |
82823-22050 |
US $6.99 |
||
|
82823A
|
82823A
82823-35050 Cap, Terminal, No.1[08.2008 -] KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..LHD..SCB..SA;K UN15..LHD..(GCC,GEN,PHL);KUN26,36..ARL,GEN,LA,PHL,SA,TH;KUN15..RHD..(DCB,SCB,SMT). .(DLX,SR);KUN10,25,35,LAN15,25,35..5F..(DLX,SR) |
82823-35050 |
US $6.99 |
||
|
90119T0136
|
90119T0136
90119-T0136
New Genuine Part
|
90119-T0136 |
— | ||
|
90178T0018
|
90178T0018
90178-T0018 NUT FLANGE |
90178-T0018 |
US $0.76 |
||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.92 |
||
|
90178T0036
|
90178T0036
90178-T0036
New Genuine Part
|
90178-T0036 |
— | ||
|
90189T0001
|
90189T0001
90189-T0001
Grommet, Screw(For Glow Plug)
|
90189-T0001 |
— | ||
|
9010906114
|
9010906114
90109-06114 New Genuine Part |
90109-06114 |
US $1.46 |
||
|
9011908827
|
9011908827
90119-08827 New Genuine Part |
90119-08827 |
US $1.61 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.43 |
