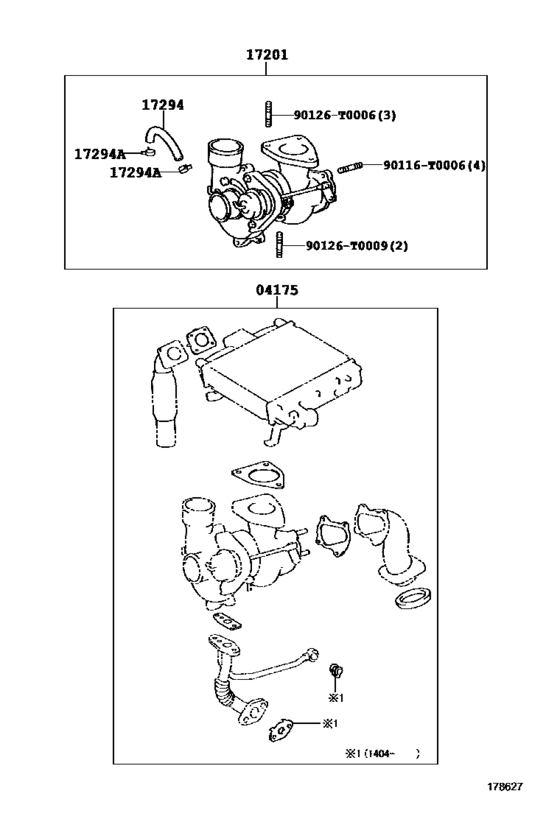

Manifold ([10.2001 - ] *130,EURO 4 REGULATION (0110- )2KDFTV..KUN25,35..LA ; (1311- )2KD FTV..KUN15..SMT..SR ; (1311- )2K DFTV..KUN15,35..D LX..TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- KUN35
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- LA
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 10.2011
- To
- 10.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-0L011
Gasket Kit, Turbocharger
[10.2011 - 10.2012] 2KDFTV..KUN25,35..LA BRAZIL SPEC |
04175-0L011 |
— | ||
| replacement | |||||
|
04175
|
04175
04175-0L012
Gasket Kit, Turbocharger
[10.2011 - 10.2012] 2KDFTV..KUN25,35..LA BRAZIL SPEC |
04175-0L012 |
— | ||
|
04175
|
04175
04175-0L121
Gasket Kit, Turbocharger
[07.2011 - 04.2014] 2KDFTV..KUN25,35..LA |
04175-0L121 |
— | ||
| replacement | |||||
|
04175
|
04175
04175-0L122
Gasket Kit, Turbocharger
[07.2011 - 04.2014] 2KDFTV..KUN25,35..LA |
04175-0L122 |
— | ||
|
04175
|
04175
04175-0L122
Gasket Kit, Turbocharger
[04.2014 - 10.2015] 2KDFTV..KUN25,35..LA |
04175-0L122 |
— | ||
|
17201
|
17201
17201-0L030 Turbocharger Sub-Assy[10.2011 - 10.2012] 2KDFTV..KUN25,35..LA BRAZIL SPEC,*130 |
17201-0L030 |
US $2,381.42 |
||
|
17201
|
17201
17201-0L080
Turbocharger Sub-Assy
[10.2011 - 10.2015] 2KDFTV..KUN25,35..LA *130 |
17201-0L080 |
— | ||
|
17294
|
17294
90445-T0010
Hose, Actuator
[10.2011 - 10.2012] 2KDFTV..KUN25,35..LA BRAZIL SPEC,*130 |
90445-T0010 |
— | ||
|
17294
|
17294
90445-T0011
Hose, Actuator
[07.2011 - 10.2015] 2KDFTV..KUN25,35..LA *130 |
90445-T0011 |
— | ||
|
17294A
|
17294A
90466-T0008
Clip(For Actuator Hose)
[07.2011 - 10.2015] 2KDFTV..KUN25,35..LA *130 |
90466-T0008 |
— | ||
|
90116T0006
|
90116T0006
90116-T0006
New Genuine Part
|
90116-T0006 |
— | ||
|
90126T0006
|
90126T0006
90126-T0006
STUD HEXALOBULAR
|
90126-T0006 |
— | ||
|
90126T0009
|
90126T0009
90126-T0009
STUD HEXALOBULAR
|
90126-T0009 |
— | ||
