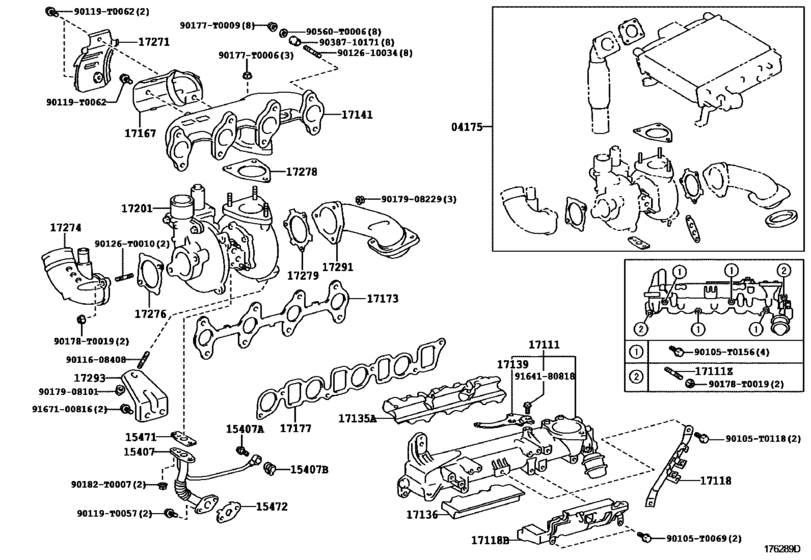

Manifold ([08.2009 - ] (0908- )2KDFTV..KUN25,35..SR..TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Frame
- KUN35
- grade
- SR
- ENGINE
- 2KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2009
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-0L041
Gasket Kit, Turbocharger
[04.2009 - 10.2011] 2KDFTV..KUN35..SR..TH;1KDFTV..KUN16,26,36..IDN,LA,PHL,TH |
04175-0L041 |
— | ||
| replacement | |||||
|
04175
|
04175
04175-0L043
Gasket Kit, Turbocharger
[04.2009 - 10.2011] 2KDFTV..KUN35..SR..TH;1KDFTV..KUN16,26,36..IDN,LA,PHL,TH |
04175-0L043 |
— | ||
|
15407
|
15407
15407-0L050
Pipe Sub-Assy, Turbo Oil Inlet
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH (L) |
15407-0L050 |
— | ||
|
15407
|
15407
15407-30120
Pipe Sub-Assy, Turbo Oil Inlet
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH (J) |
15407-30120 |
— | ||
| replacement | |||||
|
15407
|
15407
15407-30130
Pipe Sub-Assy, Turbo Oil Inlet
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH (J) |
15407-30130 |
— | ||
|
15407A
|
15407A
90401-T0004
Bolt, Union(For Turbo Oil Inlet Pipe)
[10.2008 -] 2KDFTV..KUN25,35..LA;2KDFTV..KUN35..SR..TH |
90401-T0004 |
— | ||
|
15407B
|
15407B
90430-T0006
Gasket(For Turbo Oil Inlet Pipe)
[10.2008 -] 2KDFTV..KUN25,35..LA;2KDFTV..KUN35..SR..TH |
90430-T0006 |
— | ||
|
15471
|
15471
15471-0L011 Gasket, Turbo Oil Inlet[04.2009 -] 2KDFTV..KUN25,35..LA;2KDFTV..KUN35..SR..TH; 1KDFTV..KUN16..4FC;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,3 6..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN35..DLX..(ANCOM,PHL,TH);1KDFTV ,2KDFTV..KUN10,15,36..GCC,GEN,LA, |
15471-0L011 |
US $3 |
||
|
15472
|
15472
15472-0L010 Gasket, Turbo Oil Outlet, No.1TURBO OIL OUTLET, NO.1 [10.2008 -] 2KDFTV..KUN25,35..LA;2KDFTV..KUN35..SR..TH |
15472-0L010 |
US $3.69 |
||
|
17111
|
17111
17101-0L030
Manifold, Intake
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH |
17101-0L030 |
— | ||
|
17111Z
|
17111Z
90116-T0011
Bolt, Stud(For Intake Manifold To Cylinder Head)
[08.2008 -] 1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16.. (SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDF TV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH) *130 |
90116-T0011 |
— | ||
|
17118
|
17118
17118-0L050
Stay, Manifold
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH |
17118-0L050 |
— | ||
|
17118B
|
17118B
17853-0L010
Insulator, Intake Manifold
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH |
17853-0L010 |
— | ||
|
17135A
|
17135A
17135-0L010
Insulator, Intake Manifold, No.1
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH |
17135-0L010 |
— | ||
|
17136
|
17136
17136-0L010
Insulator, Intake Manifold, No.2
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH |
17136-0L010 |
— | ||
|
17139
|
17139
17139-0L010
Stay, Manifold, No.2
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH |
17139-0L010 |
— | ||
|
17141
|
17141
17141-0L030
Manifold, Exhaust
[08.2008 -] 1KDFTV..KUN16..4FC;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN26,36..LA,PHL,TH;2KDFTV..K UN15,25,35..HDCR..TH;1KDFTV..KUN16..(SCB,SMT)..CBU *130 |
17141-0L030 |
— | ||
|
17167
|
17167
17167-0L010
Insulator, Exhaust Manifold Heat, No.1
[08.2008 -] 1KDFTV..KUN16..4FC;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN26,36..LA,PHL,TH;2KDFTV..K UN15,25,35..HDCR..TH;1KDFTV..KUN16..(SCB,SMT)..CBU *130 |
17167-0L010 |
— | ||
|
17173
|
17173
17173-0L020
Gasket, Exhaust Manifold To Head
[08.2008 - 10.2011] 1KDFTV..KUN36..LA,TH;1KDFTV..KUN26..5F..LA;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16 ,26..IDN,PHL,TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
17173-0L020 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-0L021
Gasket, Exhaust Manifold To Head
[08.2008 - 10.2011] 1KDFTV..KUN36..LA,TH;1KDFTV..KUN26..5F..LA;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16 ,26..IDN,PHL,TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
17173-0L021 |
— | ||
|
17177
|
17177
17177-0L011
Gasket, Intake Manifold To Head, No.1
[10.2008 -] 2KDFTV..KUN25,35..LA;2KDFTV..KUN35..SR..TH |
17177-0L011 |
— | ||
|
17201
|
17201
17201-0L070
Turbocharger Sub-Assy
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH |
17201-0L070 |
— | ||
| replacement | |||||
|
17201
|
17201
17201-0L071 Turbocharger Sub-Assy[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH |
17201-0L071 |
US $2,333.94 |
||
|
17271
|
17271
17271-0L020 Insulator, Turbo, No.1TURBO, NO.1 [08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH |
17271-0L020 |
US $37.71 |
||
|
17274
|
17274
17274-0L010
Elbow, Compressor Inlet
[10.2008 - 10.2011] 1KDFTV..KUN26,36..LA;2KDFTV..KUN35..SR..TH |
17274-0L010 |
— | ||
|
17276
|
17276
17276-0L010
Gasket, Compressor Inlet
[10.2008 -] 1KDFTV..KUN26,36..LA;2KDFTV..KUN35..SR..TH |
17276-0L010 |
— | ||
|
17278
|
17278
17278-0L010
Gasket, Turbo To Exhaust Manifold
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH |
17278-0L010 |
— | ||
|
17279
|
17279
17279-0L010
Gasket, Turbine Outlet Elbow
[10.2008 - 10.2011] 1KDFTV..KUN26,36..LA;2KDFTV..KUN35..SR..TH |
17279-0L010 |
— | ||
| replacement | |||||
|
17279
|
17279
17279-0L011
Gasket, Turbine Outlet Elbow
[10.2008 - 10.2011] 1KDFTV..KUN26,36..LA;2KDFTV..KUN35..SR..TH |
17279-0L011 |
— | ||
|
17291
|
17291
17291-0L060
Elbow, Turbine Outlet
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH |
17291-0L060 |
— | ||
|
17293
|
17293
17293-0L050
Stay, Turbocharger
[08.2009 - 07.2011] 2KDFTV..KUN25,35..SR..TH |
17293-0L050 |
— | ||
|
90105T0069
|
90105T0069
90105-T0069
New Genuine Part
|
90105-T0069 |
— | ||
|
90105T0118
|
90105T0118
90105-T0118 BOLT FLANGE |
90105-T0118 |
US $0.92 |
||
|
90105T0156
|
90105T0156
90105-T0156
New Genuine Part
|
90105-T0156 |
— | ||
|
90119T0057
|
90119T0057
90119-T0057
New Genuine Part
|
90119-T0057 |
— | ||
|
90119T0062
|
90119T0062
90119-T0062 BOLTWWSH |
90119-T0062 |
US $1.02 |
||
|
90126T0010
|
90126T0010
90126-T0010
New Genuine Part
|
90126-T0010 |
— | ||
|
90177T0006
|
90177T0006
90177-T0006 Nut, Exhaust Pipe Set Stud Bolt |
90177-T0006 |
from US $1.01 |
||
| replacement | |||||
|
90177T0006
|
90177T0006
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
|
90177T0009
|
90177T0009
90177-T0009
New Genuine Part
|
90177-T0009 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.92 |
||
|
90182T0007
|
90182T0007
90182-T0007
New Genuine Part
|
90182-T0007 |
— | ||
|
90560T0006
|
90560T0006
90560-T0006
New Genuine Part
|
90560-T0006 |
— | ||
|
9011608408
|
9011608408
90116-08408 BOLT STUD |
90116-08408 |
US $1.25 |
||
|
9012610034
|
9012610034
90126-10034 Bolt, Stud(For Exhaust Manifold, Rh) |
90126-10034 |
US $2.15 |
||
|
9017908101
|
9017908101
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9017908229
|
9017908229
90179-08229 NUT |
90179-08229 |
from US $1.19 |
||
|
9038710171
|
9038710171
90387-10171 Collar(For Exhaust Manifold) |
90387-10171 |
US $3.58 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
|
9167100816
|
9167100816
91671-00816 New Genuine Part |
91671-00816 |
US $1.97 |
||
