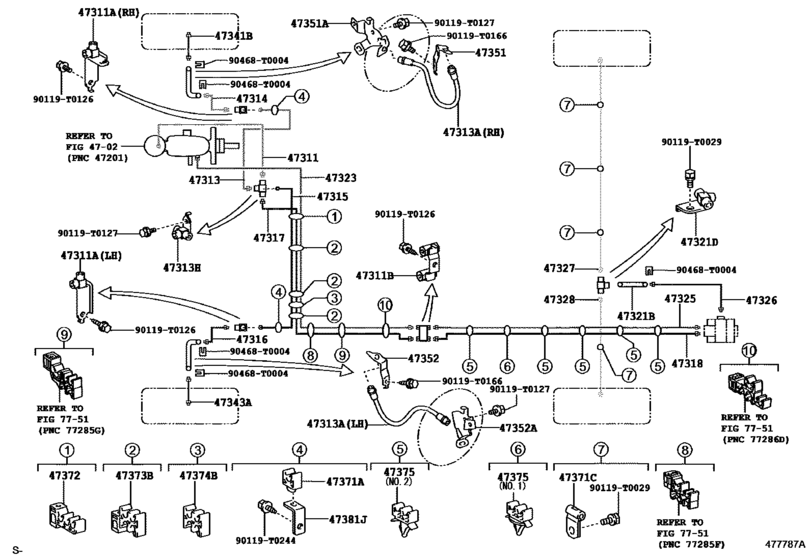

Brake Tube & Clamp ([07.2011 - ] (1107- )SMT..5FC ; (1107- )KUN25,35..DLX.. MA,TH ; (1107- )KUN25,TGN26..RHD ..GEN,IDN,PKN,TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- KUN35
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- SMT
- Model
- HILUX
- From
- 07.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-0K010
Tube, Front Brake, No.1
[07.2011 -] GGN25..5F;KUN35..XTR;GGN25..5FC..DLX;KUN26..RHD..(DCB,SCB)..4FC..(ARL,GEN,MA);KUN2 6..RHD..(DCB,SMT)..(5F,5FC)..(GEN,TH);GGN15,KUN1#,25,3#,TGN10,16,26..RHD..(ARL,GEN ,IDN,MA,PKN,TH) |
47311-0K010 |
— | ||
|
47311A
|
47311A
90412-10251
Way(For Front Brake Tube)
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 RH |
90412-10251 |
— | ||
|
47311A
|
47311A
90412-10252
Way(For Front Brake Tube)
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 LH |
90412-10252 |
— | ||
|
47311B
|
47311B
90412-10253
Way, No.1(For Front Brake Tube)
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 |
90412-10253 |
— | ||
|
47313
|
47313
47313-0K010
Tube, Front Brake, No.3
[07.2011 - 08.2013] KUN26..5F..ARL;GGN25..5FC..SR..ARL; KUN35..5FC;KUN25..IDN,TH;TGN16..SR..TH;KUN15..SMT..SR;KUN35..DLX..TH;KUN15,TGN26.. RHD..(DCB,SCB)..(HDCR,HTWC) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
47313-0K010 |
— | ||
|
47313
|
47313
47313-0K020
Tube, Front Brake, No.3
[07.2011 - 08.2013] KUN35..5FC;KUN35..DLX..TH;KUN10,25,TGN10,16..IDN,TH;KUN15,TGN26..RHD..(HDCR,HTWC). .(GEN,TH) |
47313-0K020 |
— | ||
|
47313A
|
47313A
90080-94029 Hose, Flexible, No.1(For Front)FLEXIBLE, NO.1(FOR FRONT) [07.2011 -] GGN25,35,KUN2#,3#,LAN25,35,TGN26,36 |
90080-94029 |
from US $15.54 |
||
|
47313H
|
47313H
90413-10309
Way, No.3(For Front Brake Tube)
[07.2011 - 08.2013] KUN26..5F..ARL;GGN25..5FC..SR..ARL; KUN35..5FC;KUN25..IDN,TH;TGN16..SR..TH;KUN15..SMT..SR;KUN35..DLX..TH;KUN15,TGN26.. RHD..(DCB,SCB)..(HDCR,HTWC) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
90413-10309 |
— | ||
|
47313H
|
47313H
90414-10055
Way, No.3(For Front Brake Tube)
[07.2011 - 08.2013] KUN35..5FC;KUN35..DLX..TH;KUN15..PHL..IV3;KUN10,25,TGN10,16..IDN,TH;KUN15,TGN26..R HD..(HDCR,HTWC)..(GEN,TH) |
90414-10055 |
— | ||
|
47314
|
47314
47314-0K030 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [07.2011 -] KUN26..CBU;KUN26..SCB..5FC;KUN26..(4FC,5F)..IV3;GGN25,35,KUN25,3#,LAN25,35,TGN26,3 6..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH |
47314-0K030 |
from US $3.72 |
||
|
47315
|
47315
47315-0K010
Tube, Front Brake, No.5
[07.2011 - 08.2013] KUN26..5F..ARL;GGN25..5FC..SR..ARL; KUN35..5FC;KUN25..IDN,TH;TGN16..SR..TH;KUN15..SMT..SR;KUN35..DLX..TH;KUN15,TGN26.. RHD..(DCB,SCB)..(HDCR,HTWC) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
47315-0K010 |
— | ||
|
47315
|
47315
47315-0K020
Tube, Front Brake, No.5
[07.2011 - 08.2013] KUN35..5FC;KUN35..DLX..TH;KUN10,25,TGN10,16..IDN,TH;KUN15,TGN26..RHD..(HDCR,HTWC). .(GEN,TH) |
47315-0K020 |
— | ||
|
47316
|
47316
47316-0K030 Tube, Front Brake, No.6FRONT BRAKE, NO.6 [07.2011 -] KUN26..CBU;KUN26..SCB..5FC;KUN26..(4FC,5F)..IV3;GGN25,35,KUN25,3#,LAN25,35,TGN26,3 6..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH |
47316-0K030 |
from US $3.80 |
||
|
47317
|
47317
47317-0K010
Tube, Front Brake, No.7
[07.2011 -] GGN25..5F;KUN35..XTR;GGN25..5FC..DLX;KUN26..RHD..(DCB,SCB)..4FC..(ARL,GEN,MA);KUN2 6..RHD..(DCB,SMT)..(5F,5FC)..(GEN,TH);GGN15,KUN1#,25,3#,TGN10,16,26..RHD..(ARL,GEN ,IDN,MA,PKN,TH) |
47317-0K010 |
— | ||
|
47318
|
47318
47318-0K020
Tube, Front Brake, No.8
[07.2011 - 12.2015] GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..(ARL,GEN,PHL,SA);GGN25,KUN26..(5F,5FC)..(GEN ,PHL,SA,TH);GGN15,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..ARL,GCC,GEN,IDN,PHL,S A,TH |
47318-0K020 |
— | ||
|
47321B
|
47321B
90947-T2015 Hose, Flexible(For Rear Brake Tube)FLEXIBLE(FOR REAR BRAKE TUBE) [07.2011 -] GGN25..5F;KUN36..RHD;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GE N,MA,PHL,SA);KUN26..(5F,5FC)..(CO,GEN,PHL,SA,TH);GGN25,KUN2#,35,LAN25,35,TGN26,36. .(DEFI,HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH) |
90947-T2015 |
US $27.92 |
||
|
47321D
|
47321D
90413-10308
Way, No.1(For Rear Brake Tube)
[07.2011 -] GGN25..5F;KUN36..RHD;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GE N,MA,PHL,SA);KUN26..(5F,5FC)..(CO,GEN,PHL,SA,TH);GGN25,KUN2#,35,LAN25,35,TGN26,36. .(DEFI,HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH) |
90413-10308 |
— | ||
|
47323
|
47323
47323-0K010
Tube, Rear Brake, No.3
[07.2011 - 08.2013] KUN26..5F..ARL;GGN25..5FC..SR..ARL; KUN35..5FC;KUN25..IDN,TH;TGN16..SR..TH;KUN15..SMT..SR;KUN35..DLX..TH;KUN15,TGN26.. RHD..(DCB,SCB)..(HDCR,HTWC) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
47323-0K010 |
— | ||
|
47323
|
47323
47323-0K020
Tube, Rear Brake, No.3
[07.2011 - 08.2013] KUN35..5FC;KUN35..DLX..TH;KUN10,25,TGN10,16..IDN,TH;KUN15,TGN26..RHD..(HDCR,HTWC). .(GEN,TH) |
47323-0K020 |
— | ||
|
47325
|
47325
47325-0K020 Tube, Rear Brake, No.5REAR BRAKE, NO.5 [07.2011 - 12.2015] GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..(ARL,GEN,PHL,SA);GGN25,KUN26..(5F,5FC)..(GEN ,PHL,SA,TH);GGN15,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..ARL,GCC,GEN,IDN,PHL,S A,TH |
47325-0K020 |
US $26.68 |
||
|
47326
|
47326
47329-0K021 Tube, Rear Brake, No.6REAR BRAKE, NO.6 [07.2011 -] GGN25..5F;KUN36..RHD;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GE N,MA,PHL,SA);KUN26..(5F,5FC)..(CO,GEN,PHL,SA,TH);GGN25,KUN2#,35,LAN25,35,TGN26,36. .(DEFI,HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH) |
47329-0K021 |
US $5.27 |
||
|
47327
|
47327
47327-0K021 Tube, Rear Brake, No.7[07.2011 -] GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL.; GGN25..5F;KUN36..GEN,TH;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO ,GEN,PHL);KUN26..(5F,5FC)..(CO,GEN,PHL,TH);KUN2#,35,TGN26,36..(HDCR,HTWC,HTWCF,IAR T)..(CO,GCC,GEN,ID |
47327-0K021 |
US $16.44 |
||
|
47328
|
47328
47328-0K021 Tube, Rear Brake, No.8[07.2011 -] GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL.; GGN25..5F;KUN36..GEN,TH;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO ,GEN,PHL);KUN26..(5F,5FC)..(CO,GEN,PHL,TH);KUN2#,35,TGN26,36..(HDCR,HTWC,HTWCF,IAR T)..(CO,GCC,GEN,ID |
47328-0K021 |
US $7.25 |
||
|
47341B
|
47341B
47341-0K010 Tube, Wheel Cylinder, Front Rh No.1WHEEL CYLINDER, FRONT RH NO.1 [07.2011 - 03.2012] KUN26..SMT;KUN26..(DCB,SCB,XTR)..(ARL,GEN,PHL);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT) ..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
47341-0K010 |
US $4 |
||
|
47341B
|
47341B
47341-0K030 Tube, Wheel Cylinder, Front Rh No.1WHEEL CYLINDER, FRONT RH NO.1 [03.2012 -] KUN26..SMT;KUN26..5F..PHL;KUN25..SCB..GEN;KUN35..5F..(PHL,TH);TGN26..DCB..5F..GEN; KUN26..RHD..DCB..GEN;KUN26..4FC..(ARL,PHL);KUN36,TGN26..(4FC,5F)..(GCC,TH);GGN25,K UN25..(4FC,5FC)..DLX..(ARL,PKN);GGN25,KUN25..(DCB,SMT)..5F..(ARL,GCC,GEN,IDN, |
47341-0K030 |
US $4.02 |
||
|
47343A
|
47343A
47343-0K010 Tube, Wheel Cylinder, Front Lh No.1WHEEL CYLINDER, FRONT LH NO.1 [07.2011 - 03.2012] KUN26..SMT;KUN26..(DCB,SCB,XTR)..(ARL,GEN,PHL);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT) ..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
47343-0K010 |
US $3.71 |
||
|
47343A
|
47343A
47343-0K030 Tube, Wheel Cylinder, Front Lh No.1WHEEL CYLINDER, FRONT LH NO.1 [03.2012 -] KUN26..SMT;KUN26..5F..PHL;KUN25..SCB..GEN;KUN35..5F..(PHL,TH);TGN26..DCB..5F..GEN; KUN26..RHD..DCB..GEN;KUN26..4FC..(ARL,PHL);KUN36,TGN26..(4FC,5F)..(GCC,TH);GGN25,K UN25..(4FC,5FC)..DLX..(ARL,PKN);GGN25,KUN25..(DCB,SMT)..5F..(ARL,GCC,GEN,IDN, |
47343-0K030 |
from US $3.71 |
||
|
47351
|
47351
47351-0K010
Bracket, Flexible Hose(For Front Rh)
[07.2011 -] GGN25,35,KUN2#,3#,LAN25,35,TGN26,36 |
47351-0K010 |
— | ||
|
47351A
|
47351A
47353-0K020
Bracket, Flexible Hose, Front Rh No.1
[07.2011 -] GGN25,35,KUN2#,3#,LAN25,35,TGN26,36 |
47353-0K020 |
— | ||
|
47352
|
47352
47352-0K030
Bracket, Flexible Hose(For Front Lh)
[07.2011 -] GGN25,35,KUN2#,3#,LAN25,35,TGN26,36 |
47352-0K030 |
— | ||
|
47352A
|
47352A
47354-0K020
Bracket, Flexible Hose, Front Lh No.1
[07.2011 -] GGN25,35,KUN2#,3#,LAN25,35,TGN26,36 |
47354-0K020 |
— | ||
|
47371A
|
47371A
90949-T1011
Clamp, Brake Tube, No.1
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
90949-T1011 |
— | ||
|
47371C
|
47371C
90461-T0001
Clamp, Brake Tube, No.7
[07.2011 -] KUN25..CO,GCC,GEN,IDN,LA,PKN,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36 ..ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
90461-T0001 |
— | ||
|
47372
|
47372
90949-T1014
Clamp, Brake Tube, No.2
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
90949-T1014 |
— | ||
|
47373B
|
47373B
90949-T1008
Clamp, Brake Tube, No.3
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
90949-T1008 |
— | ||
|
47374B
|
47374B
90949-T1009
Clamp, Brake Tube, No.4
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
90949-T1009 |
— | ||
|
47375
|
47375
90469-T0007
Clamp, Brake Tube, No.5
[07.2011 - 12.2015] KUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN1#,2#,35,LAN15,25,35,TGN1#,2 6,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.1 |
90469-T0007 |
— | ||
|
47375
|
47375
90949-T1006 Clamp, Brake Tube, No.8BRAKE TUBE, NO.5 [07.2011 - 12.2015] KUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN15,16,2#,35,LAN15,25,35,TGN1 5,16,26,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.2 |
90949-T1006 |
US $1.46 |
||
|
47381J
|
47381J
90949-T2001
Bracket, Brake Tube Clamp, No.2
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
90949-T2001 |
— | ||
|
90119T0029
|
90119T0029
90119-T0029 Bolt (For Transmission Control Cable Bracket) |
90119-T0029 |
US $1.02 |
||
|
90119T0126
|
90119T0126
90119-T0126
BOLT WWASHER
|
90119-T0126 |
— | ||
|
90119T0127
|
90119T0127
90119-T0127
New Genuine Part
|
90119-T0127 |
— | ||
|
90119T0166
|
90119T0166
90119-T0166
BOLT WWASHER
|
90119-T0166 |
— | ||
|
90119T0244
|
90119T0244
90119-T0244
BOLT WWASHER
|
90119-T0244 |
— | ||
|
90468T0004
|
90468T0004
90468-T0004
CLIP
|
90468-T0004 |
— |
