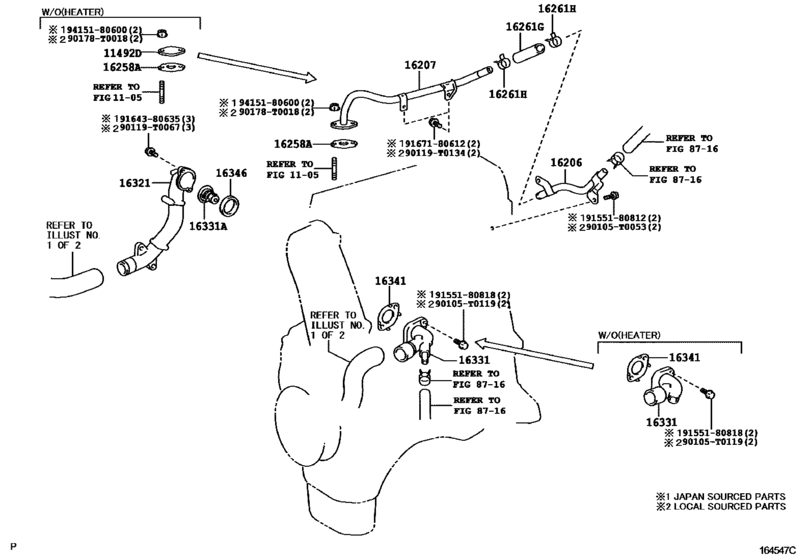

Radiator & Water Outlet ([07.2011 - ] EXCEPT EURO 4 REGULATION (1107- )2KDFTV..KUN10,35..DLX..CO,GCC,IDN,LA, SA,TH ; (1107- )2KDFTV..KUN15..S CB,SMT,XTR..SR,ST D..PHL,SA,TH ; (1109-1210)2KDFTV..KUN25..MA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- KUN35
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- SMT
- Model
- HILUX
- From
- 07.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11492D
|
11492D
11492-0L010
Plate, Seal, No.1
[07.2011 - 04.2015] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15..SR..PHL;2KDFTV..KUN35..DLX..TH;2KDFTV..KUN10 ,15..(DLX,STD)..(IDN,PHL,TH) *130 |
11492-0L010 |
— | ||
|
11492D
|
11492D
11492-30010 Plate, Seal, No.1[07.2011 - 04.2015] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15..SR..PHL;2KDFTV..KUN35..DLX..TH;2KDFTV..KUN10 ,15..(DLX,STD)..(IDN,PHL,TH) *360 |
11492-30010 |
US $6.70 |
||
|
16258A
|
16258A
16258-0L010
Gasket(For Heater Return)
[07.2011 -] 2KDFTV..KUN15..RHD..(GEN,PKN,TH);2KDFTV..KUN25..GCC,GEN,IDN,PKN,TH;2KDFTV..KUN35.. (4FC,5F)..(PHL,TH);2KDFTV..KUN15..LHD..SCB..DCR..(GCC,GEN,PHL);2KDFTV..KUN15..LHD. .(DCB,XTR)..(GCC,GEN,PHL);1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,PHL,TH;1KDFT |
16258-0L010 |
— | ||
|
16258A
|
16258A
16258-67010 Gasket(For Heater Return)[07.2011 - 10.2016] 2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..5F..SR..PHL;2KDFTV.. KUN35..DLX..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#,36..4FC. .(IDN,TH);2KDFTV..KUN15..LHD..SCB..DCR..(GCC,GEN);2KDFTV..KUN15..RHD. |
16258-67010 |
from US $2.36 |
||
|
16321
|
16321
16321-0L010
Inlet, Water
[07.2011 -] 2KDFTV..KUN15..RHD..(GEN,PKN,TH);2KDFTV..KUN25..GCC,GEN,IDN,PKN,TH;2KDFTV..KUN35.. (4FC,5F)..(PHL,TH);2KDFTV..KUN15..LHD..SCB..DCR..(GCC,GEN,PHL);2KDFTV..KUN15..LHD. .(DCB,XTR)..(GCC,GEN,PHL);1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,PHL,TH;1KDFT |
16321-0L010 |
— | ||
|
16321
|
16321
16321-30040
Inlet, Water
[07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
16321-30040 |
— | ||
|
16331
|
16331
16304-0L020
Outlet, Water
[11.2013 - 04.2015] 2KDFTV..KUN15,25,35..5F..TH *360; 1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
16304-0L020 |
— | ||
|
16331
|
16331
16331-0L030
Outlet, Water
[07.2011 - 12.2011] 2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFT V,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
16331-0L030 |
— | ||
|
16331
|
16331
16331-30100
Outlet, Water
[07.2011 - 08.2012] 2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV.. KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
16331-30100 |
— | ||
|
16331A
|
16331A
90916-03118 Thermostat*WAX 82-95C [07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
90916-03118 |
from US $20.63 |
||
|
16341
|
16341
16341-0L010
Gasket, Water Outlet
[07.2011 - 08.2012] 1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
16341-0L010 |
— | ||
|
16341
|
16341
16341-30020 Gasket, Water Outlet[07.2011 - 08.2012] 2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..HDCR..TH *360 |
16341-30020 |
from US $2.46 |
||
|
16346
|
16346
16346-0K010 Gasket, Thermostat[07.2011 - 12.2011] 1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN, IDN,MA,PHL,SA,TH *130 |
16346-0K010 |
from US $3.28 |
||
|
16346
|
16346
16346-67010
Gasket, Thermostat
[07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
16346-67010 |
— | ||
| replacement | |||||
|
16346
|
16346
16346-30010 Gasket, Thermostat[07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
16346-30010 |
from US $2.93 |
||
|
90105T0053
|
90105T0053
90105-T0053
New Genuine Part
|
90105-T0053 |
— | ||
|
90105T0119
|
90105T0119
90105-T0119
BOLT FLANGE
|
90105-T0119 |
— | ||
|
90119T0067
|
90119T0067
90119-T0067
New Genuine Part
|
90119-T0067 |
— | ||
|
90119T0134
|
90119T0134
90119-T0134
BOLT WWASHER
|
90119-T0134 |
— | ||
|
90178T0018
|
90178T0018
90178-T0018 NUT FLANGE |
90178-T0018 |
US $0.76 |
||
|
9155180812
|
9155180812
91551-80812 BOLT FLANGE |
91551-80812 |
US $1.43 |
||
|
9155180818
|
9155180818
91551-80818 Bolt, Union(For Clutch Master Cylinder) |
91551-80818 |
US $1.43 |
||
|
9164380635
|
9164380635
91643-80635 New Genuine Part |
91643-80635 |
US $1.97 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
