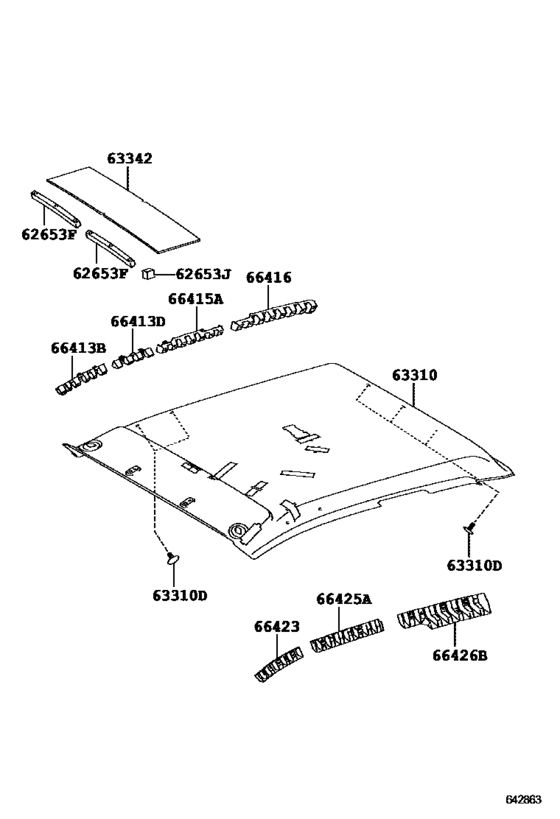

Roof Headlining & Silencer Pad ([07.2011 - ] (1107- )SMT) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- KUN35
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- SMT
- Model
- HILUX
- From
- 07.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62653F
|
62653F
62653-0K250
Packing (For Roof Headlining)
[07.2011 -] GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,MA,P HL,PKN,TH) |
62653-0K250 |
— | ||
|
62653J
|
62653J
62653-0K280
Packing
[07.2011 -] KUN26..4FC..CO;GGN15,25,35..DCB,XTR;KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DC B,SADCB,SMT,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) 30X45X30 |
62653-0K280 |
— | ||
|
63310
|
63310
63310-0K480-B0
Headlining Assy, Roof
[07.2011 - 04.2015] KUN2#,3#..SMT;KUN15..SMT..SR LT. GRAY,TRIM1#,2# |
63310-0K480-B0 |
— | ||
|
63310
|
63310
63310-0K480-E0
Headlining Assy, Roof
[07.2011 - 04.2015] KUN15..SMT..SR;KUN16,2#,3#..SMT SAND BEIGE,TRIM4# |
63310-0K480-E0 |
— | ||
|
63310D
|
63310D
90467-T0004-B0 Clip[07.2011 - 01.2016] KUN35..CO,LA,TH;TGN26..4FC..GEN;GGN15,KUN16..XTR;KUN35..LHD..DLX..(GEN,PHL);KUN36. .(5F,5FC)..(GEN,LA,TH);KUN26,TGN36..CO,GEN,LA,MA,PHL,TH;KUN15,TGN16,26..(SCB,THDCB )..GEN;GGN15,KUN15,16,35..DCB..SR..(ARL,GEN);KUN25..(SCB,THDCB,THSCB, |
90467-T0004-B0 |
US $0.90 |
||
|
63310D
|
63310D
90467-T0004-E1
Clip
[07.2011 - 09.2016] KUN15..SMT..SR;KUN35..LHD..SR;KUN36,TGN26..RHD..(GEN,TH);KUN26..(DCB,SMT)..(GEN,PH L,TH);KUN15,TGN16..DCB..(HDCR,HTWC)..TH;KUN25,35..(DCB,SMT)..(IDN,PKN,TH);KUN15,16 ..(4FC,5F)..SR..DCR..(GEN,PHL,TH) SAND BEIGE,TRIM4# |
90467-T0004-E1 |
— | ||
|
63342
|
63342
63342-0K010
Pad, Roof Silencer, No.2
[07.2011 - 08.2013] KUN15..(SMT,XTR)..HDCR..(GEN,TH);KUN2#,3#..(SMT,XTR)..(ARL,GEN,TH);GGN15,KUN16,TGN 16..(SMT,XTR)..DLX 200X800 |
63342-0K010 |
— | ||
|
66413B
|
66413B
66413-0K010
Spacer, Side Rail, Front Rh
[07.2011 -] KUN26..(DCB,SMT,THDCB)..(GEN,MA,PHL,TH);GGN15,KUN1#,25,3#,TGN1#,26,36..ARL,GCC,GEN ,IDN,MA,PHL,PKN,TH |
66413-0K010 |
— | ||
|
66413D
|
66413D
66414-0K010
Spacer, Side Rail
[07.2011 -] KUN35..PHL,TH;KUN35..LHD..GEN;TGN16..ARL..IV3;TGN26..4FC..GEN;KUN16..SCB,SMT,XTR;K UN15,25,TGN26..GCC,IDN,MA,PKN,TH;GGN15,KUN15,16..DCB..SR..(DCR,HTWC)..(ARL,GEN,PHL ,TH);GGN15,KUN15,25,TGN26..(SCB,THDCB,THSCB,XTR)..(ARL,GEN,PHL);KUN10,26,36,T |
66414-0K010 |
— | ||
|
66415A
|
66415A
66415-0K090
Spacer, Side Rail, Rear No.2 Rh
[07.2011 - 04.2015] KUN15,16,2#,3#,TGN16..SMT |
66415-0K090 |
— | ||
|
66416
|
66416
66416-0K120
Spacer, Side Rail, Rear No.3 Rh
[07.2011 - 04.2015] KUN15,16,2#,3#,TGN16..SMT |
66416-0K120 |
— | ||
|
66423
|
66423
66423-0K010
Spacer, Side Rail, Front Lh
[07.2011 -] KUN26..(DCB,SMT,THDCB)..(GEN,MA,PHL,TH);GGN15,KUN1#,25,3#,TGN1#,26,36..ARL,GCC,GEN ,IDN,MA,PHL,PKN,TH |
66423-0K010 |
— | ||
|
66425A
|
66425A
66425-0K040
Spacer, Side Rail, Rear No.2 Lh
[07.2011 - 04.2015] KUN15,16,2#,3#,TGN16..SMT |
66425-0K040 |
— | ||
|
66426B
|
66426B
66426-0K120
Spacer, Side Rail, Rear No.3 Lh
[07.2011 - 04.2015] KUN15,16,2#,3#,TGN16..SMT |
66426-0K120 |
— |
