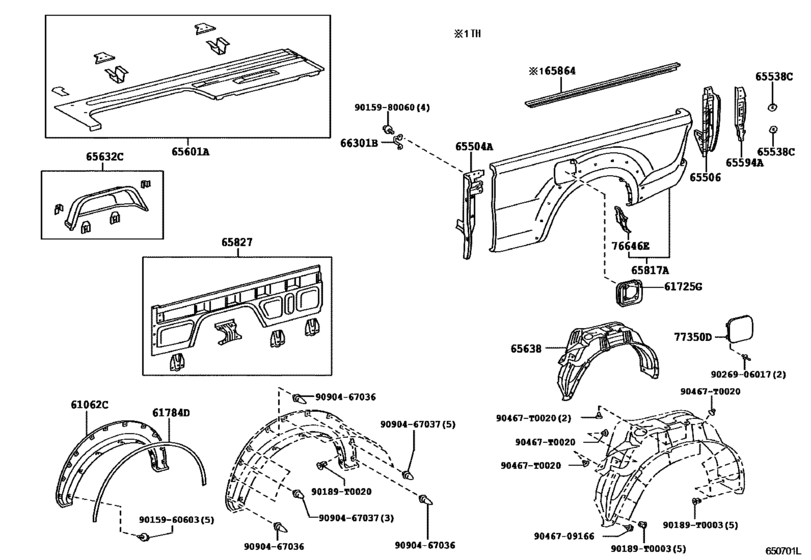

Rear Body Side Panel ([08.2004 - ] LH (0408- )SMT,XTR..CBU) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Frame
- KUN35
- grade
- SR
- ENGINE
- 2KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- SMT
- Model
- HILUX
- From
- 08.2009
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61062C
|
61062C
61682-0K904 Extension Sub-Assy, Rear Wheel Opening, No.1 LhREAR WHEEL OPENING, NO.1 LH [08.2008 - 08.2011] KUN2#,3#..(SMT,XTR)..CBU |
61682-0K904 |
US $40.91 |
||
|
61725G
|
61725G
61725-0K010
Box, Fuel Inlet, No.1
[08.2008 -] KUN15,TGN16..XTR..DLX;TGN26,36..LHD..SCB..CBU;KUN26,36..(SMT,XTR)..CBU;KUN15..(SCB ,SMT)..(DLX,SR)..CBU;TGN16..(SCB,SMT)..(GCC,SA,TH)..CBU;GGN15,KUN10,16,25,35,LAN15 ,25,TGN10,11,15..(SCB,SMT,THSCB,XTR)..(DLX,SR)..CBU |
61725-0K010 |
— | ||
|
61784D
|
61784D
61784-0K041-B0 Pad, Rear Wheel Opening Extension, No.2REAR WHEEL OPENING EXTENSION, NO.2 [08.2008 -] KUN36;KUN35..TH;GGN25..5FC..SA;KUN26..LHD..DLX;KUN35..SR..(PHL,SA);TGN36..4FC..DLX ..LA;GGN25..DCB..SR..(ARL,LA);GGN35,KUN2#,TGN26,36..SR..(ARL,GEN,LA,PHL,SA,TH) GRAY,040 ,1C0 ,4P9 |
61784-0K041-B0 |
US $12.23 |
||
|
61784D
|
61784D
61784-0K041-C0 Pad, Rear Wheel Opening Extension, No.2REAR WHEEL OPENING EXTENSION, NO.2 [08.2008 - 08.2011] KUN35..TH;GGN25..5FC..SA;KUN26..DLX..GEN;GGN25..DCB..SR..ARL;KUN35..SR..(PHL,SA);G GN35,KUN2#,36,TGN26,36..SR..(ARL,GEN,PHL,SA,TH) BLACK,1E9 ,209 ,3E5 ,6S3 ,8T7; KUN26..DLX..ARL..CBU;TGN26..LHD..DLX..(GCC,GEN,SA);GGN25,KUN25,35,LAN25,3 |
61784-0K041-C0 |
from US $12.23 |
||
|
65504A
|
65504A
65504-0K030
Post Sub-Assy, Side Panel Front End, Lh
[08.2008 - 08.2011] GGN15,KUN15,16,2#,3#,TGN16..(SMT,XTR)..CBU |
65504-0K030 |
— | ||
|
65506
|
65506
65506-0K040
Post Sub-Assy, Side Panel Rear End, Lh
[08.2008 -] GGN25..5FC..SA;KUN16..SMT,XTR;KUN26..LHD..DLX;TGN16..(DCB,SMT)..(SA,TH);GGN25..DCB ..SR..(ANCOM,ARL,LA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SMT)..(GEN,PHL,SA ,TH);GGN15,KUN15,TGN16..XTR..(ARL,GEN,TH);KUN26..(DCB,SMT,THDCB,XTR)..SR..(AR |
65506-0K040 |
— | ||
|
65538C
|
65538C
65537-0K010
Patch, Side Panel Reinforcement, Rh
[08.2008 -] GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25.. DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GG N15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB, |
65537-0K010 |
— | ||
|
65594A
|
65594A
65594-0K010
Plate, Side Panel Rear End Post Inside, Lh
[08.2008 -] GGN25..5FC..SA;KUN16..SMT,XTR;KUN26..LHD..DLX;TGN16..(DCB,SMT)..(SA,TH);GGN25..DCB ..SR..(ANCOM,ARL,LA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SMT)..(GEN,PHL,SA ,TH);GGN15,KUN15,TGN16..XTR..(ARL,GEN,TH);KUN26..(DCB,SMT,THDCB,XTR)..SR..(AR |
65594-0K010 |
— | ||
|
65601A
|
65601A
65318-0K913
Panel Sub-Assy, Rear Body Side, Lh
[08.2008 - 08.2011] GGN15,KUN15,16,2#,3#,TGN16..(SMT,XTR)..CBU |
65318-0K913 |
— | ||
|
65632C
|
65632C
65632-0K901
Panel, Wheel House, Lh
[08.2008 -] GGN15,KUN16..DCB..DLX;TGN16..(ARL,GCC,TH)..CBU;KUN26,36,TGN16..XTR..(GEN,SA);GGN15 ,KUN16..(SCB,SMT,XTR)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,26..(ARL,GCC,GEN, PHL,TH)..CBU;GGN25,KUN10,25,3#,TGN10,11,15,26..(DCB,SCB,SMT,THDCB,THSCB)..(AR |
65632-0K901 |
— | ||
| replacement | |||||
|
65632C
|
65632C
65632-0K907
Panel, Wheel House, Lh
[08.2008 -] GGN15,KUN16..DCB..DLX;TGN16..(ARL,GCC,TH)..CBU;KUN26,36,TGN16..XTR..(GEN,SA);GGN15 ,KUN16..(SCB,SMT,XTR)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,26..(ARL,GCC,GEN, PHL,TH)..CBU;GGN25,KUN10,25,3#,TGN10,11,15,26..(DCB,SCB,SMT,THDCB,THSCB)..(AR |
65632-0K907 |
— | ||
|
65638
|
65638
65638-0K010 Liner, Rear Wheel House, LhREAR WHEEL HOUSE, LH [08.2008 -] GGN15..DCB..DLX;TGN16..(ARL,GCC,TH)..CBU;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16 ..(SCB,SMT,XTR)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,2#,3#..(DLX,SR)..(ANCOM ,ARL,GCC,GEN,LA,MA,PHL,PKN,TH)..CBU;GGN25,KUN10,16,TGN10,11,15,26,36..(DCB,SC |
65638-0K010 |
US $66.40 |
||
|
65817A
|
65817A
65817-0K907
Panel, Rear Body Side, Lh
[08.2008 - 08.2011] KUN2#,3#..(SMT,XTR)..CBU |
65817-0K907 |
— | ||
|
65827
|
65827
65827-0K911
Panel, Rear Body Side, Inner Lh
[08.2008 - 07.2011] KUN15,16,2#,3#,TGN16..(SMT,XTR)..TH |
65827-0K911 |
— | ||
|
65864
|
65864
65863-0K020
Panel, Rear Body Side, Upper Rh
[08.2008 - 07.2011] KUN15,16,2#,3#,TGN16..(SMT,XTR)..TH |
65863-0K020 |
— | ||
|
66301B
|
66301B
66312-0K010 Hook Sub-Assy, RopeROPE [08.2008 -] GGN25..5FC..SA;KUN16..SMT,XTR;KUN26..DLX..GEN;TGN16..(DCB,SMT)..(SA,TH);GGN25..DCB ..SR..(ANCOM,ARL);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN15,TGN16..XTR..(ARL,GEN ,TH);KUN26,36..(DCB,SMT,THDCB,XTR)..SR..(ARL,GEN,PHL,SA,TH);GGN35,KUN15,25,35 |
66312-0K010 |
US $8.60 |
||
|
76646E
|
76646E
76646-0K010
Bracket, Rr Body Mudguard, Lh
[08.2008 -] GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25.. DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GG N15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB, |
76646-0K010 |
— | ||
|
77350D
|
77350D
77350-0K050 Lid Assy, Fuel Filler OpeningFUEL FILLER OPENING [08.2008 -] TGN26..LHD..SCB..CBU;KUN15,TGN16..XTR..DLX;KUN15..(SCB,SMT)..(DLX,SR)..CBU;TGN16.. (SCB,SMT)..(GCC,SA,TH)..CBU;GGN15,KUN10,16,2#,3#,LAN15,25,TGN10,11,15,36..(SCB,SMT ,THSCB,XTR)..(DLX,SR)..CBU |
77350-0K050 |
US $44.69 |
||
|
90189T0003
|
90189T0003
90189-T0003 GROMMET SCREW |
90189-T0003 |
from US $0.66 |
||
|
90189T0020
|
90189T0020
90189-T0020 GROMMET SCREW |
90189-T0020 |
US $0.98 |
||
|
90467T0020
|
90467T0020
90467-T0020 CLIP |
90467-T0020 |
from US $0.70 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.64 |
||
|
9015980060
|
9015980060
90159-80060 SCREW WWASHER |
90159-80060 |
from US $0.66 |
||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.15 |
||
|
9046709166
|
9046709166
90467-09166 CLIP |
90467-09166 |
from US $1.17 |
||
|
9090467036
|
9090467036
90904-67036 Clip, Outside Moulding, No.1 |
90904-67036 |
from US $1.11 |
||
|
9090467037
|
9090467037
90904-67037 Clip, Outside Moulding, No.1 |
90904-67037 |
from US $1.13 |
||
