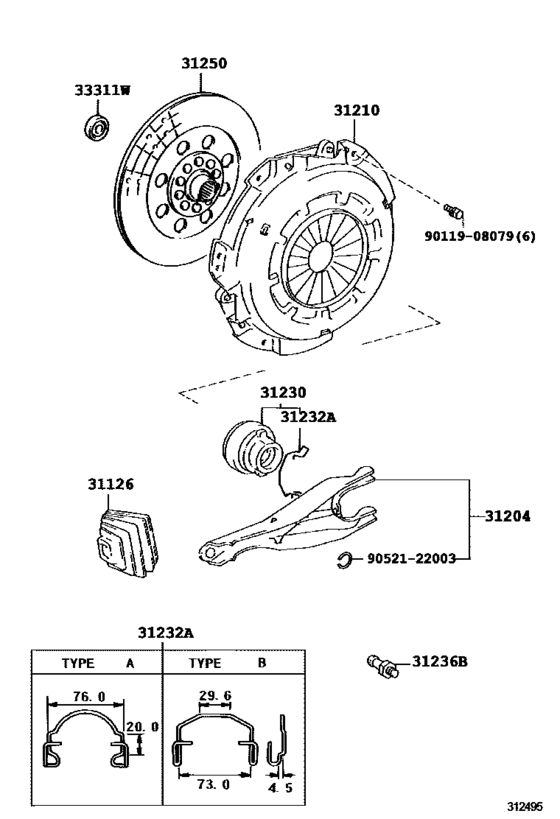

Clutch & Release Fork ([08.1999 - 04.2005] (9908-0504)KDN151,16#,KZN165,190..MTM) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2000 - 2002
- Sales region
- General
- Frame
- KZN190
- grade
- DLX
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- CAB
- DCB
- Model
- HILUX
- From
- 07.2000
- To
- 03.2002
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- TDE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-60080
Boot, Clutch Release Fork
[09.1999 - 03.2001] KZN165,190 |
31126-60080 |
— | ||
| replacement | |||||
|
31126
|
31126
31126-60081 Boot, Clutch Release Fork[09.1999 - 03.2001] KZN165,190 |
31126-60081 |
from US $13.80 |
||
|
31126
|
31126
31126-60081 Boot, Clutch Release Fork[03.2001 - 03.2002] KZN165..(THDCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA) |
31126-60081 |
from US $13.80 |
||
|
31204
|
31204
31204-60090 Fork Sub-Assy, Clutch Release[09.1999 - 03.2002] KZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA) |
31204-60090 |
from US $76.94 |
||
|
31210
|
31210
31210-35260 Cover Assy, ClutchCLUTCH [07.2000 - 03.2002] KZN165..XTR;KZN165,190..SA;KZN165..(DCB,SCB)..DLX |
31210-35260 |
US $266.45 |
||
| replacement | |||||
|
31210
|
31210
31210-35270 Cover Assy, ClutchCLUTCH [07.2000 - 03.2002] KZN165..XTR;KZN165,190..SA;KZN165..(DCB,SCB)..DLX |
31210-35270 |
US $155.79 |
||
|
31230
|
31230
31230-60170 Bearing Assy, Clutch Release[09.1999 - 03.2002] KZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA) |
31230-60170 |
from US $31.58 |
||
|
31232A
|
31232A
31232-36030 Clip Or Spring, Release Bearing Hub[09.1999 - 03.2002] KZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA) TYPE A:REFER ILLUST. |
31232-36030 |
from US $1.44 |
||
|
31232A
|
31232A
31232-60030 Clip, Release Bearing Hub[09.1999 - 03.2002] KZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA) TYPE B:REFER ILLUST. |
31232-60030 |
US $3.58 |
||
|
31236B
|
31236B
31236-60060 Support, Release Fork[09.1999 - 03.2002] KZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA) |
31236-60060 |
from US $9.98 |
||
|
31250
|
31250
31250-26171 Disc Assy, Clutch[09.1999 - 03.2002] KZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA) |
31250-26171 |
US $311.58 |
||
| replacement | |||||
|
31250
|
31250
31250-26241 Disc Assy, Clutch[09.1999 - 03.2002] KZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA) |
31250-26241 |
from US $252.27 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[06.2000 - 03.2002] LN192;LN167..DSL;LN152..DEFI..IV3;LN145..RHD..(IV1,IV3);LN167..DLX..DEFI..ARL;KZN1 65..(DCB,SCB)..(ARL,SA);LN152,167..MTM..DEFI..(SA,TH);KZN190,LN147,157,172,YN140.. DLX;KZN165,LN150..(THDCB,THSCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..M |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[06.2000 - 03.2002] LN192;LN167..DSL;LN152..DEFI..IV3;LN145..RHD..(IV1,IV3);LN167..DLX..DEFI..ARL;KZN1 65..(DCB,SCB)..(ARL,SA);LN152,167..MTM..DEFI..(SA,TH);KZN190,LN147,157,172,YN140.. DLX;KZN165,LN150..(THDCB,THSCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..M |
90363-12024 |
from US $5.67 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
|
9052122003
|
9052122003
90521-22003 Ring, Snap(For Clutch Release Hub) |
90521-22003 |
US $1.79 |
||
