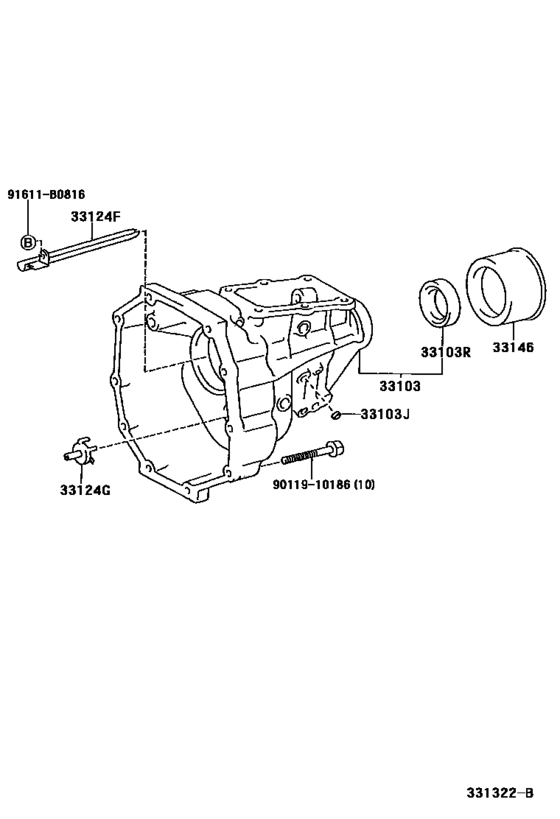

Extension Housing (Mtm) ([07.2000 - ] R151 (0007- )KDN151,KZN190) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2000 - 2002
- Sales region
- General
- Frame
- KZN190
- grade
- DLX
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- CAB
- SCB
- Model
- HILUX
- From
- 07.2000
- To
- 03.2002
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- TDE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33103
|
33103
33103-35180 Housing Sub-Assy, Extension(Mtm)EXTENSION(MTM) [07.2000 - 03.2002] KZN190 |
33103-35180 |
US $174.72 |
||
|
33103J
|
33103J
90341-10065 Plug, Straight, No.1[07.2000 - 03.2002] KZN190 |
90341-10065 |
US $3.94 |
||
|
33103R
|
33103R
90311-40001 Seal, Oil(For Extension Housing)[07.2000 - 03.2002] KZN190 |
90311-40001 |
from US $7.17 |
||
|
33124F
|
33124F
33124-35100 Pipe, Oil Receiver(For Transfer)[07.2000 - 03.2002] KZN190 |
33124-35100 |
from US $5.91 |
||
|
33124G
|
33124G
33124-35090 Pipe, Oil Receiver, No.2(For Extension Housing)[07.2000 - 03.2002] KZN190 |
33124-35090 |
US $3.84 |
||
|
33146
|
33146
33146-30010
Deflector, Extension Housing Dust(Mtm)
[08.1997 - 05.2001] KZN190,LN14#,15#,19#,RZN144,148,149,154,19#,YN140..MTM |
33146-30010 |
— | ||
| replacement | |||||
|
33146
|
33146
33146-30020 Deflector, Extension Housing Dust(Mtm)[08.1997 - 05.2001] KZN190,LN14#,15#,19#,RZN144,148,149,154,19#,YN140..MTM |
33146-30020 |
from US $17.74 |
||
|
33146
|
33146
33146-30020 Deflector, Extension Housing Dust(Mtm)[05.2001 - 06.2002] RZN144,149,154..CBR;RZN154,194..RHD..MTM;KZN190,RZN148,149,193..MTM..DLX..(EFI,TDE )..(ARL,GEN,SA) |
33146-30020 |
from US $17.74 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9011910186
|
9011910186
90119-10186 BOLT |
90119-10186 |
US $2.51 |
||
