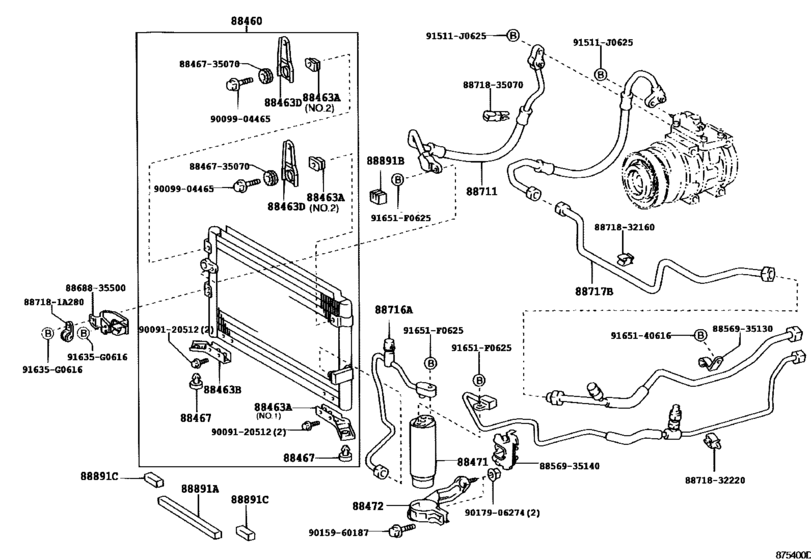

Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )KZN165,190..SA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- KZN190
- grade
- SR
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- CAB
- SCB
- Model
- HILUX
- From
- 03.2002
- To
- 04.2005
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- TDE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-35270
Condenser Assy, Cooler
[08.2001 - 06.2005] KZN165,190,RZN169,194..SR..SA;LN145,166,RZN147,169..RHD..(GEN,MA)..CBU |
88460-35270 |
— | ||
|
88463A
|
88463A
88463-35100
Bracket, Cooler Condenser, No.2
[08.2001 - 11.2005] LN145..LHD..IV3;RZN149..SCB..GCC;KZN165,190,RZN169,194..SR..SA;LN145,RZN148,149..L HD..DCB..(CO,GCC,TH);LN145,166,RZN147,148,169..(GCC,GEN,MA)..CBU;LN141,146,155,171 ,191,RZN142,144,154,168,193..LHD..CBU NO.1 |
88463-35100 |
— | ||
|
88463A
|
88463A
88463-35120
Bracket, Cooler Condenser, No.1
[08.2001 - 11.2005] LN145..LHD..IV3;RZN148,149..DCB..CO;RZN142,147,148,169..GEN..CBU;KZN165,190,RZN169 ,194..SR..SA;LN141,145,146,166,171,191,RZN154,168,193..(CO,GCC,GEN,MA)..CBU NO.2 |
88463-35120 |
— | ||
|
88463B
|
88463B
88463-35110
Bracket, Cooler Condenser, No.3
[08.2001 - 11.2005] LN145..LHD..IV3;RZN149..SCB..GCC;KZN165,190,RZN169,194..SR..SA;LN145,RZN148,149..L HD..DCB..(CO,GCC,TH);LN145,166,RZN147,148,169..(GCC,GEN,MA)..CBU;LN141,146,155,171 ,191,RZN142,144,154,168,193..LHD..CBU |
88463-35110 |
— | ||
|
88463D
|
88463D
88463-35180
Bracket, Cooler Condenser, No.5
[08.2001 - 11.2005] KZN190..SR;LN147..IV3;RZN149..ARL;RZN147..ARL,GEN;LN145..LHD..IV3;LN147..DCB,THDCB ;RZN169..ARL,GEN,SA;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148,149..LHD..DCB..( CO,TH);LN155,RZN142,168..LHD..(CO,GEN,TH)..CBU;KZN165,LN141,146,16#,1 |
88463-35180 |
— | ||
|
88467
|
88467
88467-35030
Cushion, Cooler Condenser, No.1
[08.2001 - 11.2005] KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL ,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148, 149..LHD..DCB..(CO,TH);KZN165,LN141,146,16#,17#,19#,RZN144,154,169,17 |
88467-35030 |
— | ||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[08.2001 -] KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL ,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148, 149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169 |
88471-34010 |
from US $47.25 |
||
|
88472
|
88472
88472-35050
Bracket, Receiver Tank, No.1
[08.2001 - 06.2005] KZN190..SR;LN147..IV3;LN147..DCB,THDCB;RZN147..RHD..(ARL,GEN);LN145,152..RHD..(ARL ,GEN)..CBU;KZN165,LN16#,172,192,RZN149,154,169,174,194..RHD..(ARL,GEN,MA,SA) |
88472-35050 |
— | ||
|
88711
|
88711
88711-35600
Hose, Cooler Refrigerant Discharge, No.1
[09.2001 - 04.2005] KZN165,190..SR..SA |
88711-35600 |
— | ||
|
88716A
|
88716A
88716-35600 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [09.2001 - 04.2005] KZN190..SR;KZN165..ARL,SA |
88716-35600 |
US $85.90 |
||
|
88717B
|
88717B
88727-35050 Pipe, Cooler Refrigerant Suction, BCOOLER REFRIGERANT SUCTION, B [09.2001 - 04.2005] KZN165,190..SR..SA |
88727-35050 |
US $142.69 |
||
|
88891A
|
88891A
88578-89119
Packing A (For Cooler)
[08.2001 - 11.2005] LN145..GEN..CBU;LN145..LHD..IV3;RZN149..SCB..GCC;KZN165,190..SR..SA;RZN148,149..DC B..(CO,GCC);RZN142,147,148,154..LHD..(GCC,GEN)..CBU;LN141,145,146,155,166,RZN144,1 69..LHD..(GCC,TH) |
88578-89119 |
— | ||
|
88891B
|
88891B
88578-35120
Packing B (For Cooler)
[09.2001 - 04.2005] KZN190..SR;KZN165..ARL,SA |
88578-35120 |
— | ||
|
88891C
|
88891C
88578-89111
Packing B (For Cooler)
[08.2001 - 08.2005] KZN190..SR;RZN169..GCC;RZN142,147,149..MTM..(GCC,GEN);KZN165,LN141,146,166,RZN144. .ARL,GCC,SA |
88578-89111 |
— | ||
|
91511J0625
|
91511J0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.78 |
||
|
91635G0616
|
91635G0616
91635-G0616 BOLTWWASHER |
91635-G0616 |
US $1.08 |
||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
887181A280
|
887181A280
88718-1A280
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A280 |
— | ||
|
8846735070
|
8846735070
88467-35070
Cushion, Cooler Condenser, No.1
|
88467-35070 |
— | ||
|
8856935130
|
8856935130
88569-35130
Clamp (for Cooler Relay)
|
88569-35130 |
— | ||
|
8856935140
|
8856935140
88569-35140
Clamp (for Cooler Relay)
|
88569-35140 |
— | ||
|
8868835500
|
8868835500
88688-35500
Bracket, Cooler Diaphragm
|
88688-35500 |
— | ||
|
8871832160
|
8871832160
88718-32160
Pipe, Cooler Refrigerant Suction, No.2
|
88718-32160 |
— | ||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.46 |
||
|
8871835070
|
8871835070
88718-35070
Pipe, Cooler Refrigerant Suction, No.2
|
88718-35070 |
— | ||
|
9009120512
|
9009120512
90091-20512 BOLT WWASHER |
90091-20512 |
US $0.28 |
||
|
9009904465
|
9009904465
90099-04465
New Genuine Part
|
90099-04465 |
— | ||
|
9015960187
|
9015960187
90159-60187 SCREW |
90159-60187 |
from US $0.86 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
