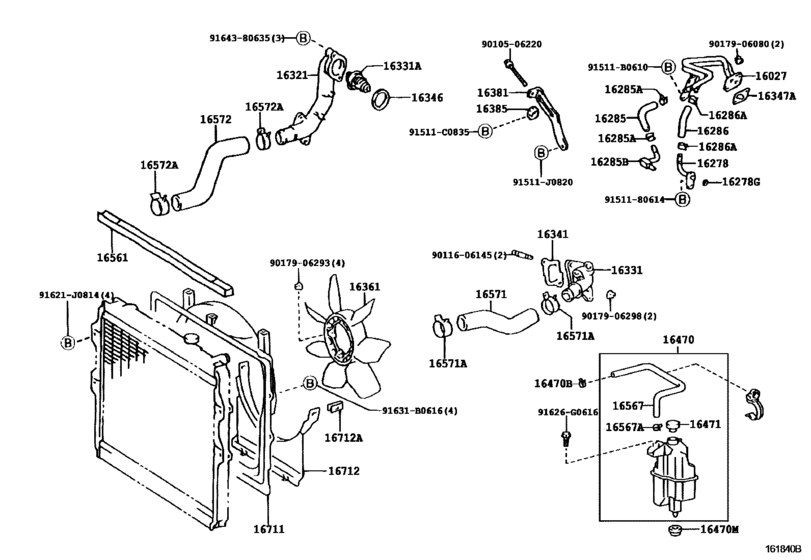

Radiator & Water Outlet ([02.2003 - ] (0302- )1KZTE..SA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- KZN190
- grade
- SR
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- CAB
- SCB
- Model
- HILUX
- From
- 03.2002
- To
- 04.2005
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- TDE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16027
|
16027
16027-67011 Pipe Sub-Assy, Turbo Water, No.1[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16027-67011 |
US $52.94 |
||
|
16278
|
16278
16278-67010 Pipe, Water By-Pass, No.2[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16278-67010 |
US $13.61 |
||
|
16278G
|
16278G
96761-24010 Ring, O(For Water By-Pass No.2 Pipe)[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
96761-24010 |
US $4.66 |
||
|
16285
|
16285
16285-67010 Hose, Turbo Water, No.2[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16285-67010 |
from US $11.27 |
||
|
16285A
|
16285A
90467-15022 Clip Or Clamp(For Ventilation Hose)[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
90467-15022 |
from US $1.07 |
||
|
16285B
|
16285B
90405-10044 Union(For Turbo Water Hose No.2)[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
90405-10044 |
US $8.96 |
||
|
16286
|
16286
16284-67020 Hose, Turbo Water, No.3[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16284-67020 |
US $8.39 |
||
|
16286A
|
16286A
90467-15022 Clip Or Clamp(For Ventilation Hose)[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
90467-15022 |
from US $1.07 |
||
|
16321
|
16321
16321-0K010 Inlet, Water[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR;2KDFTV..KDN165,190..IV1 (L) |
16321-0K010 |
from US $19.95 |
||
|
16321
|
16321
16321-67011
Inlet, Water
[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR;2KDFTV..KDN165,190..IV1 (J) |
16321-67011 |
— | ||
| replacement | |||||
|
16321
|
16321
16321-0K010 Inlet, Water[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR;2KDFTV..KDN165,190..IV1 (J) |
16321-0K010 |
from US $19.95 |
||
|
16331
|
16331
16331-67020 Outlet, Water[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16331-67020 |
US $74.95 |
||
|
16331A
|
16331A
90916-03121 Thermostat[02.2002 - 04.2005] 1KZTE..KZN190..SR;1KZTE..KZN165..(DCB,SCB)..(ARL,SA) *WAX 71-85 |
90916-03121 |
from US $34.10 |
||
|
16341
|
16341
16341-67020 Gasket, Water Outlet[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16341-67020 |
from US $5.85 |
||
|
16346
|
16346
16346-0K010 Gasket, Thermostat[01.2004 - 04.2005] 1K#,2KDFTV..KDN145,15#,16#,190,KZN165,190 (L) |
16346-0K010 |
from US $3.28 |
||
|
16346
|
16346
16346-67010
Gasket, Thermostat
[10.2001 - 04.2005] 1KZTE..KZN165..DCB..IV3;1KZTE..KZN165,190..SR..SA;1KDFTV,2KDFTV..KDN145,15#,16#,19 0 (J) |
16346-67010 |
— | ||
| replacement | |||||
|
16346
|
16346
16346-30010 Gasket, Thermostat[10.2001 - 04.2005] 1KZTE..KZN165..DCB..IV3;1KZTE..KZN165,190..SR..SA;1KDFTV,2KDFTV..KDN145,15#,16#,19 0 (J) |
16346-30010 |
from US $2.94 |
||
|
16347A
|
16347A
16347-67010 Gasket(For Turbo Water Pipe)[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16347-67010 |
US $1.61 |
||
|
16361
|
16361
16361-67040 Fan[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16361-67040 |
from US $84.48 |
||
|
16381
|
16381
16381-67020 Bar, Fan Belt Adjusting[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16381-67020 |
US $21.50 |
||
|
16385
|
16385
16385-67010 Slider, Fan Belt Adjusting[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16385-67010 |
US $15.59 |
||
|
16470
|
16470
16470-30020 Tank Assy, Radiator ReserveRADIATOR RESERVE [02.2003 - 04.2005] 1KZTE..KZN165,190..SA |
16470-30020 |
from US $154.34 |
||
|
16470
|
16470
16470-75060 Tank Assy, Radiator Reserve[09.2001 - 02.2003] 1KZTE..KZN165,190..SR..SA |
16470-75060 |
US $64.30 |
||
|
16470B
|
16470B
96135-51300 Clamp, Hose[02.2003 - 04.2005] 1KZTE..KZN165,190..SA |
96135-51300 |
from US $2.13 |
||
|
16470M
|
16470M
90480-25025 Grommet, Radiator Reserve Tank Hose[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR;2KDFTV..KDN165,190..MA;2KDFTV..KDN165,190..IV1 |
90480-25025 |
US $2.33 |
||
|
16471
|
16471
16401-53010
Cap Sub-Assy, Radiator Reserve Tank
[02.2003 - 04.2005] 1KZTE..KZN165,190..SA |
16401-53010 |
— | ||
| replacements | |||||
|
16471
|
16471
16475-51010
Cap Sub-Assy, Radiator Reserve Tank
[02.2003 - 04.2005] 1KZTE..KZN165,190..SA |
16475-51010 |
— | ||
|
16471
|
16471
16475-28140 Cap Sub-Assy, Radiator Reserve Tank[02.2003 - 04.2005] 1KZTE..KZN165,190..SA |
16475-28140 |
from US $20.16 |
||
|
16471
|
16471
16405-75050
Cap Sub-Assy, Reserve Tank
[09.2001 - 02.2003] 1KZTE..KZN165,190..SR..SA |
16405-75050 |
— | ||
|
16561
|
16561
16561-54050 Seal, Radiator To Support, No.1[09.2001 -] 1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU PLANT NO.P11; 1KZTE..KZN165,190..SR..SA |
16561-54050 |
US $48.05 |
||
|
16567
|
16567
16567-67010 Hose(For Radiator Reserve Tank)[02.2003 - 04.2005] 1KZTE..KZN165,190..SA |
16567-67010 |
US $17.33 |
||
|
16567A
|
16567A
96135-51300 Clamp, Hose[02.2003 - 04.2005] 1KZTE..KZN165,190..SA |
96135-51300 |
from US $2.13 |
||
|
16571
|
16571
16571-67100
Hose, Radiator, Inlet
[09.2001 -] 1KZTE..KZN165,190..SR..SA |
16571-67100 |
— | ||
|
16571A
|
16571A
90466-41008 Clamp, Hose(For Radiator Hose)[09.2001 - 04.2005] 1KZTE..KZN165,190..SR..SA |
90466-41008 |
from US $4.17 |
||
|
16572
|
16572
16572-67100
Hose, Radiator, Outlet
[09.2001 -] 1KZTE..KZN165,190..SR..SA |
16572-67100 |
— | ||
|
16572A
|
16572A
90466-41008 Clamp, Hose(For Radiator Hose)[09.2001 - 04.2005] 1KZTE..KZN165,190..SR..SA |
90466-41008 |
from US $4.17 |
||
|
16711
|
16711
16711-67090
Shroud, Fan
[09.2001 -] 1KZTE..KZN165,190..SR..SA |
16711-67090 |
— | ||
|
16712
|
16712
16712-67060 Shroud, Fan, No.2FAN, NO.2 [09.2001 -] 1KZTE..KZN165,190..SR..SA |
16712-67060 |
US $59.11 |
||
|
16712A
|
16712A
90468-06092 Clip(For Fan Shroud No.2)[09.2001 -] 1KZTE..KZN165,190..SR..SA |
90468-06092 |
from US $1.58 |
||
|
91511B0610
|
91511B0610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
91511C0835
|
91511C0835
91511-C0835 Bolt(For Transaxle Case & Engine Setting) |
91511-C0835 |
from US $0.84 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.92 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
91626G0616
|
91626G0616
91626-G0616 BOLT WWASHER |
91626-G0616 |
US $1.97 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
|
9010506220
|
9010506220
90105-06220 BOLT WASHER BASED |
90105-06220 |
US $1.79 |
||
|
9011606145
|
9011606145
90116-06145 Bolt, Stud(For Oil Pan) |
90116-06145 |
US $2.15 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.47 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.84 |
||
|
9017906298
|
9017906298
90179-06298 NUT |
90179-06298 |
US $1.61 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
|
9164380635
|
9164380635
91643-80635 New Genuine Part |
91643-80635 |
US $1.97 |
||
