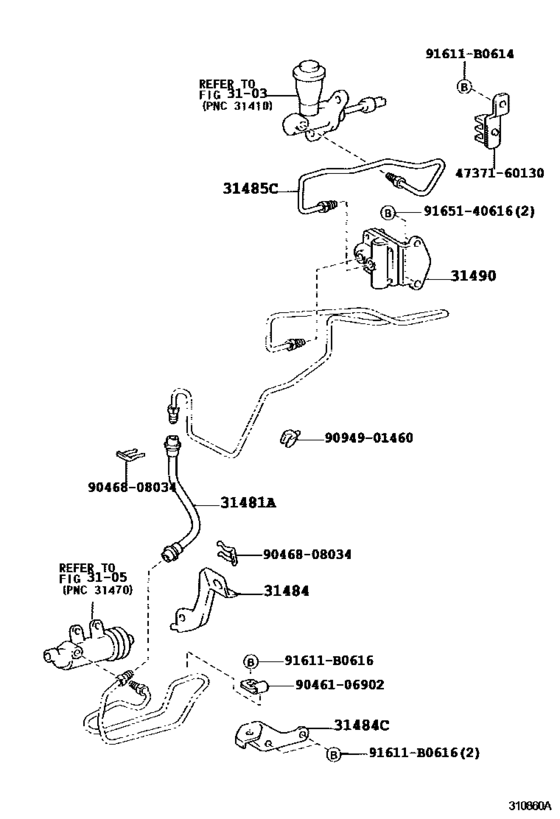

Clutch Pedal & Flexible Hose ([08.2001 - ] (0108- )KZN205) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- KZN205
- grade
- SR5
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX
- From
- 08.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31481A
|
31481A
96814-50190
Hose, Clutch, No.1
[08.2001 -] KZN205 |
96814-50190 |
— | ||
|
31484
|
31484
31484-35211
Bracket, Flexible Hose(For Clutch)
[08.2001 -] KZN205 |
31484-35211 |
— | ||
|
31484C
|
31484C
31484-35260
Bracket, Clutch Tube, No.1
[08.2001 -] KZN205 |
31484-35260 |
— | ||
|
31485C
|
31485C
31485-35150 Tube, Clutch Master Cylinder To AccumulatorCLUTCH MASTER CYLINDER TO ACCUMULATOR [08.2001 -] KZN205 |
31485-35150 |
US $11.36 |
||
|
31490
|
31490
31490-35070
Accumulator Assy, Clutch
[08.2001 -] KZN205 |
31490-35070 |
— | ||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
4737160130
|
4737160130
47371-60130
Bracket, Connector
|
47371-60130 |
— | ||
|
9046106902
|
9046106902
90461-06902 Clamp, Brake Tube, No.3 |
90461-06902 |
US $1.49 |
||
|
9046808034
|
9046808034
90468-08034 CLIP |
90468-08034 |
from US $0.96 |
||
|
9094901460
|
9094901460
90949-01460 New Genuine Part |
90949-01460 |
US $2.97 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
