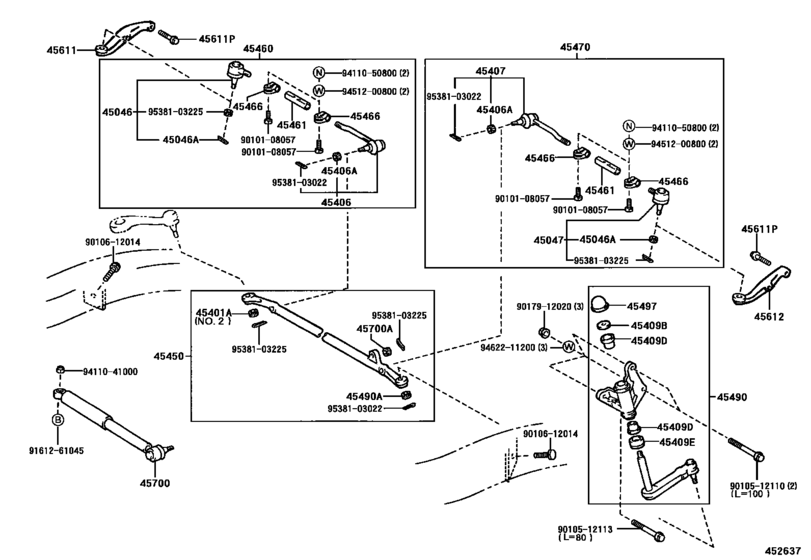

Front Steering Gear & Link ([06.2001 - ] (0106- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- KZN205
- grade
- SR5
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX
- From
- 08.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-39385 End Sub-Assy, Tie Rod[06.2001 - 12.2004] KZN205,LN205 |
45046-39385 |
from US $44.11 |
||
|
45046A
|
45046A
90171-14042 Nut, Castle(For Pitman Arm)[06.2001 -] KZN205,LN205 |
90171-14042 |
from US $2.11 |
||
|
45047
|
45047
45046-39385 End Sub-Assy, Tie Rod[06.2001 - 12.2004] KZN205,LN205 |
45046-39385 |
from US $44.11 |
||
|
45401A
|
45401A
90171-14042 Nut, Castle(For Pitman Arm)[06.2001 -] KZN205,LN205 |
90171-14042 |
from US $2.11 |
||
|
45406
|
45406
45406-39185 Rod Sub-Assy, Tie[06.2001 - 12.2004] KZN205,LN205 |
45406-39185 |
from US $68.06 |
||
|
45406A
|
45406A
90171-14042 Nut, Castle(For Pitman Arm)[06.2001 - 12.2004] KZN205,LN205 |
90171-14042 |
from US $2.11 |
||
|
45407
|
45407
45406-39185 Rod Sub-Assy, Tie[06.2001 - 12.2004] KZN205,LN205 |
45406-39185 |
from US $68.06 |
||
|
45409B
|
45409B
90201-14010 Washer, Plate(For Idler Arm Rubber Bush)[06.2001 - 12.2004] KZN205,LN205 |
90201-14010 |
from US $2.77 |
||
|
45409D
|
45409D
90389-21004 Bush(For Idler Arm)[06.2001 - 12.2004] KZN205,LN205 |
90389-21004 |
from US $2.06 |
||
|
45409E
|
45409E
90304-31012 Seal, Dust(For Idler Arm Support)[06.2001 - 12.2004] KZN205,LN205 |
90304-31012 |
from US $7.13 |
||
|
45450
|
45450
45451-39605
Rod Assy, Steering Relay
[06.2001 -] KZN205,LN205 |
45451-39605 |
— | ||
|
45460
|
45460
45460-39505 Rod Assy, Tie, Rh[06.2001 - 12.2004] KZN205,LN205 |
45460-39505 |
from US $96.76 |
||
|
45461
|
45461
45465-35040 Rod, Steering Tie[06.2001 - 12.2004] KZN205,LN205 |
45465-35040 |
from US $16.15 |
||
|
45466
|
45466
45466-30020 Clamp, Tie Rod End[06.2001 - 12.2004] KZN205,LN205 |
45466-30020 |
from US $3.39 |
||
|
45470
|
45470
45460-39505 Rod Assy, Tie, Rh[06.2001 -] KZN205,LN205 |
45460-39505 |
from US $96.76 |
||
|
45490
|
45490
45490-39455
Arm Assy, Steering Idler
[06.2001 - 06.2002] KZN205,LN205 |
45490-39455 |
— | ||
| replacement | |||||
|
45490
|
45490
45490-39456 Arm Assy, Steering IdlerSTEERING IDLER [06.2001 - 06.2002] KZN205,LN205 |
45490-39456 |
from US $173.26 |
||
|
45490
|
45490
45490-39456 Arm Assy, Steering IdlerSTEERING IDLER [06.2002 - 01.2004] KZN205,LN205 |
45490-39456 |
from US $173.26 |
||
|
45490
|
45490
45490-39515 Arm Assy, Steering Idler[01.2004 -] KZN205,LN205 |
45490-39515 |
US $161.62 |
||
| replacement | |||||
|
45490
|
45490
45490-39456 Arm Assy, Steering IdlerSTEERING IDLER [01.2004 -] KZN205,LN205 |
45490-39456 |
from US $173.26 |
||
|
45490A
|
45490A
90171-12028 Nut, Castle(For Pitman Arm)[06.2001 - 12.2004] KZN205,LN205 |
90171-12028 |
from US $1.35 |
||
|
45497
|
45497
45497-28010 Cap, Idler Arm Bracket[06.2001 - 12.2004] KZN205,LN205 |
45497-28010 |
US $7.69 |
||
|
45611
|
45611
45611-35130 Arm, Steering Knuckle, Rh[06.2001 -] KZN205,LN205 |
45611-35130 |
from US $76.28 |
||
|
45611P
|
45611P
90105-14043 Bolt(For Steering Knuckle Arm Rh)[06.2001 -] KZN205,LN205 |
90105-14043 |
US $6.99 |
||
|
45612
|
45612
45612-35150 Arm, Steering Knuckle, Lh[06.2001 -] KZN205,LN205 |
45612-35150 |
US $85.90 |
||
|
45700
|
45700
45700-39046
Damper Assy, Steering
[06.2001 - 01.2004] KZN205,LN205 |
45700-39046 |
— | ||
| replacement | |||||
|
45700
|
45700
45700-39085 Damper Assy, Steering[06.2001 - 01.2004] KZN205,LN205 |
45700-39085 |
from US $177.70 |
||
|
45700
|
45700
45700-39085 Damper Assy, Steering[01.2004 -] KZN205,LN205 |
45700-39085 |
from US $177.70 |
||
|
45700A
|
45700A
90171-12028 Nut, Castle(For Pitman Arm)[06.2001 -] KZN205,LN205 |
90171-12028 |
from US $1.35 |
||
|
9010108057
|
9010108057
90101-08057 BOLT |
90101-08057 |
US $1.43 |
||
|
9010512110
|
9010512110
90105-12110 BOLT |
90105-12110 |
US $7.35 |
||
|
9010512113
|
9010512113
90105-12113 New Genuine Part |
90105-12113 |
US $7.35 |
||
|
9010612014
|
9010612014
90106-12014 New Genuine Part |
90106-12014 |
US $4.08 |
||
|
9017912020
|
9017912020
90179-12020 Nut(For Parking Brake Plate To Rear Axle Housing) |
90179-12020 |
US $2.87 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9462211200
|
9462211200
94622-11200 WASHER |
94622-11200 |
US $3.58 |
||
|
9538103022
|
9538103022
95381-03022 Cotter pin |
95381-03022 |
US $1.97 |
||
|
9538103225
|
9538103225
95381-03225 PIN COTTER |
95381-03225 |
from US $0.70 |
||
