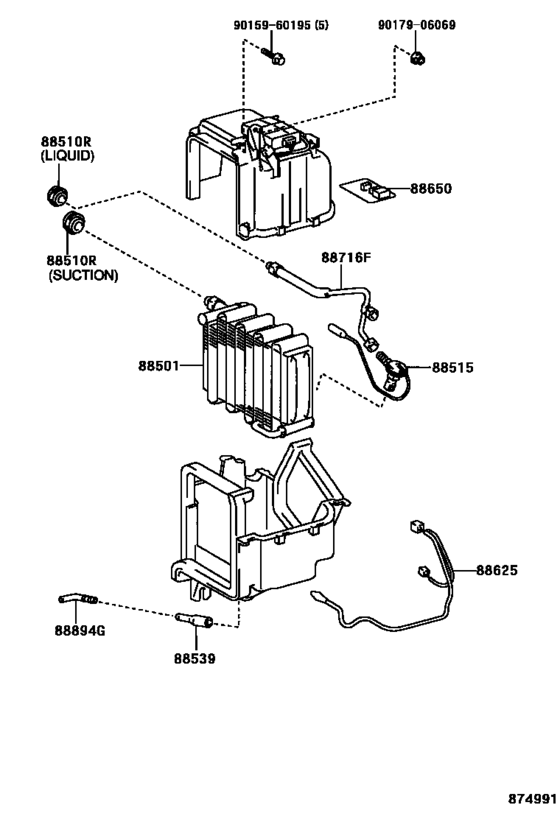

Heating & Air Conditioning - Cooler Unit ([08.2001 - ] (0108- )KZN205) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- KZN205
- grade
- SR5
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX
- From
- 08.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-34010
Evaporator Sub-Assy, Cooler, No.1
[08.2001 -] KZN205 |
88501-34010 |
— | ||
|
88510R
|
88510R
90480-26027
Grommet (For Cooler Unit)
[06.2001 -] KZN205,LN205 LIQUID |
90480-26027 |
— | ||
|
88510R
|
88510R
90480-36019
Grommet (For Cooler Unit)
[06.2001 -] KZN205,LN205 SUCTION |
90480-36019 |
— | ||
|
88515
|
88515
88515-34010 Valve, Cooler Expansion[08.2001 -] KZN205 |
88515-34010 |
from US $89.52 |
||
|
88539
|
88539
88539-89108
Hose, Cooler Unit Drain, No.1
[08.2001 -] KZN205 |
88539-89108 |
— | ||
|
88625
|
88625
88625-34010
Thermistor, Cooler, No.1
[08.2001 -] KZN205 |
88625-34010 |
— | ||
|
88650
|
88650
88650-35060 Amplifier Assy, Cooler Stabilizer[08.2001 - 12.2004] KZN205,LN205 |
88650-35060 |
from US $126.40 |
||
|
88716F
|
88716F
88716-34010
Pipe, Cooler Refrigerant Liquid, F
[08.2001 -] KZN205 |
88716-34010 |
— | ||
|
88894G
|
88894G
88894-04130
Connector, Drain Hose
[08.2001 -] KZN205 |
88894-04130 |
— | ||
|
9015960195
|
9015960195
90159-60195 New Genuine Part |
90159-60195 |
US $0.52 |
||
|
9017906069
|
9017906069
90179-06069
Direct
|
90179-06069 |
— | ||
| replacement | |||||
|
9017906069
|
9017906069
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
