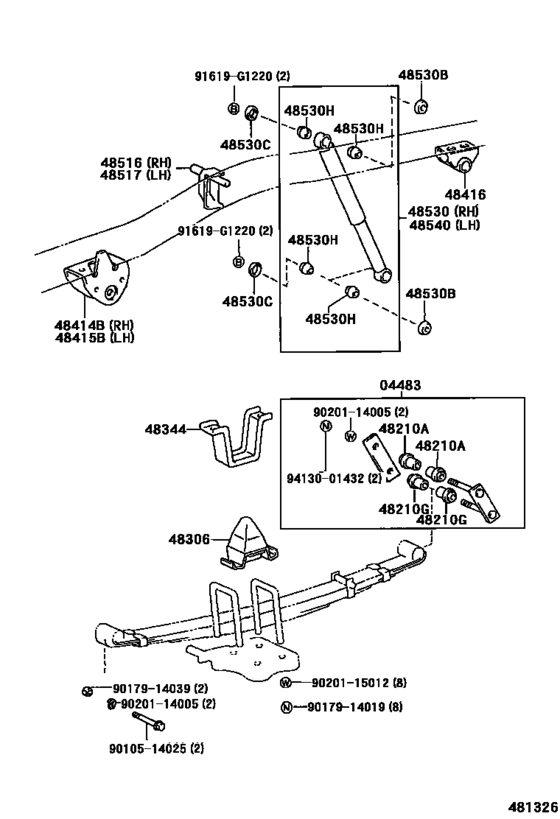

Rear Spring & Shock Absorber ([05.2001 - ] (0105- )KZN205,LN205) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- KZN205
- grade
- SR5
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX
- From
- 08.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-35120 Shackle Kit, Rear Spring[06.2001 -] KZN205,LN205 |
04483-35120 |
from US $90.20 |
||
|
48210A
|
48210A
90385-18019 Bush(For Rear Spring Shackle Upper)[06.2001 -] KZN205,LN205 |
90385-18019 |
from US $3.67 |
||
|
48210G
|
48210G
90385-18020 Bush(For Rear Spring Pin)[06.2001 -] KZN205,LN205 |
90385-18020 |
from US $3.32 |
||
|
48306
|
48306
48306-35190 Bumper Sub-Assy, Rear Spring[06.2001 -] KZN205,LN205 |
48306-35190 |
from US $29.29 |
||
|
48344
|
48344
48344-35020 Stopper, Bumper, Rear[06.2001 -] KZN205,LN205 |
48344-35020 |
US $25.51 |
||
|
48414B
|
48414B
48414-35130
Bracket, Spring, No.3 Rh
[06.2001 -] KZN205,LN205 |
48414-35130 |
— | ||
|
48415B
|
48415B
48415-35060
Bracket, Spring, No.3 Lh
[06.2001 -] KZN205,LN205 |
48415-35060 |
— | ||
|
48416
|
48416
48416-35080 Bracket, Spring, No.4[06.2001 -] KZN205,LN205 |
48416-35080 |
US $27.37 |
||
|
48516
|
48516
48505-35070
Bracket, Rear Shock Absorber, Upper Rh
[06.2001 -] KZN205,LN205 |
48505-35070 |
— | ||
|
48517
|
48517
48506-35010
Bracket, Rear Shock Absorber, Upper Lh
[06.2001 -] KZN205,LN205 |
48506-35010 |
— | ||
|
48530
|
48530
48531-80669 Absorber Assy, Shock, Rear[06.2001 -] KZN205,LN205 MARK 48531-3D061 |
48531-80669 |
from US $79.85 |
||
|
48530B
|
48530B
90948-03011 Washer, Front Shock Absorber Cushion, No.1[06.2001 -] KZN205,LN205 |
90948-03011 |
from US $2.33 |
||
|
48530C
|
48530C
90948-03020 Washer, Rear Shock Absorber Cushion, No.1[06.2001 -] KZN205,LN205 |
90948-03020 |
US $6.27 |
||
|
48530H
|
48530H
90385-19007 Bush, Rear Shock Absorber[06.2001 -] KZN205,LN205 |
90385-19007 |
from US $2.03 |
||
|
48540
|
48540
48541-39316 Absorber Assy, Shock, Rear Lh[06.2001 -] KZN205,LN205 MARK 48541-35231 |
48541-39316 |
from US $41.52 |
||
|
91619G1220
|
91619G1220
91619-G1220 New Genuine Part |
91619-G1220 |
US $4.30 |
||
|
9010514025
|
9010514025
90105-14025 BOLT |
90105-14025 |
from US $4.49 |
||
|
9017914019
|
9017914019
90179-14019 Nut |
90179-14019 |
from US $1.40 |
||
|
9017914039
|
9017914039
90179-14039 NUT |
90179-14039 |
from US $1.72 |
||
|
9020114005
|
9020114005
90201-14005 Washer, Plate |
90201-14005 |
US $4.30 |
||
|
9020115012
|
9020115012
90201-15012 Washer(For Rear Spring U Bolt) |
90201-15012 |
from US $1.21 |
||
|
9413001432
|
9413001432
94130-01432 NUT |
94130-01432 |
from US $0.94 |
