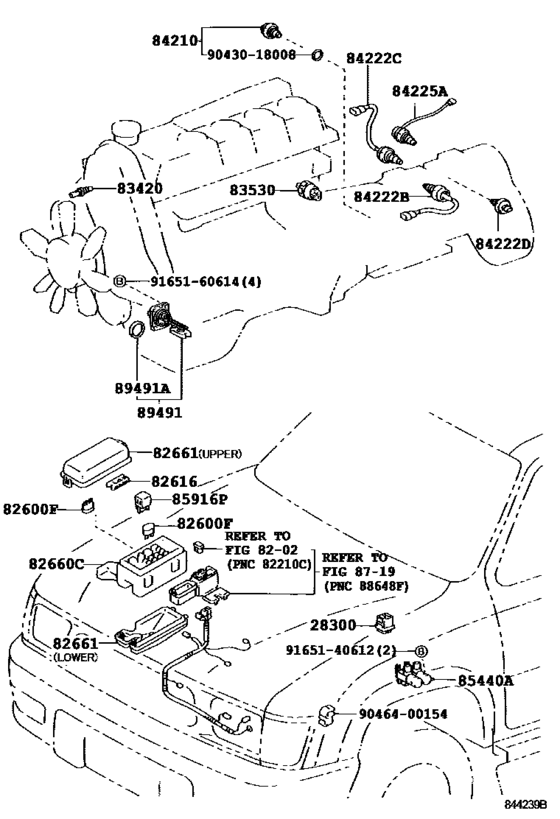

Switch & Relay & Computer ([06.2001 - ] ENGINE & TRASMISSION (0106- )KZN205) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- KZN205
- grade
- SR5
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX
- From
- 08.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-46010 Relay Assy, Starter[06.2001 -] 1KZTE,5L..KZN205,LN205 |
28300-46010 |
from US $57.15 |
||
|
82600F
|
82600F
90080-82012
Fuse, Fuse Block
[08.2001 - 12.2004] KZN205 10A,(L) |
90080-82012 |
— | ||
|
82600F
|
82600F
90080-82013 Fuse, Fuse Block[08.2001 - 12.2004] KZN205 15A,(L) |
90080-82013 |
US $1.60 |
||
|
82600F
|
82600F
90080-82015
Fuse, Fuse Block
[08.2001 - 12.2004] KZN205 7.5A |
90080-82015 |
— | ||
|
82600F
|
82600F
90982-09002 Fusible Link[05.2002 - 12.2004] KZN205 10A,(J) |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[05.2002 - 12.2004] KZN205 15A,(J) |
90982-09003 |
from US $0.90 |
||
|
82616
|
82616
82616-89102
Puller, Fuse
[06.2001 -] KZN205,LN205 |
82616-89102 |
— | ||
|
82660C
|
82660C
82660-35030
Block Assy, Relay
[08.2001 - 12.2004] KZN205 |
82660-35030 |
— | ||
|
82661
|
82661
82662-35780 Cover, Relay Block, No.1[05.2002 - 12.2004] KZN205 UPPER |
82662-35780 |
US $27.81 |
||
|
82661
|
82661
82663-35010
Cover, Relay Block, No.1
[08.2001 - 12.2004] KZN205 LOWER |
82663-35010 |
— | ||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[11.2001 - 12.2004] KZN205 |
83420-16040 |
from US $28.76 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[11.2001 -] KZN205 |
83530-60010 |
from US $23.65 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[06.2001 - 12.2004] KZN205,LN205 |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[06.2001 - 12.2004] KZN205,LN205 |
84210-52050 |
from US $22.85 |
||
|
84222B
|
84222B
84222-35060 Switch, Transfer Indicator, No.1[11.2001 - 12.2004] KZN205 |
84222-35060 |
from US $48.75 |
||
|
84222C
|
84222C
84222-35080 Switch, Transfer Indicator, No.1[11.2001 - 12.2004] KZN205 |
84222-35080 |
from US $52.83 |
||
|
84222D
|
84222D
84222-35070 Switch, Transfer Indicator, No.3[11.2001 - 12.2004] KZN205 |
84222-35070 |
from US $47.66 |
||
|
84225A
|
84225A
84225-35010 Switch, Shift Position[08.2001 - 12.2004] KZN205 |
84225-35010 |
from US $27.96 |
||
|
85440A
|
85440A
85440-35090 Solenoid Assy, Four Wheel Drive ControlFOUR WHEEL DRIVE CONTROL [11.2001 -] KZN205 |
85440-35090 |
US $451.36 |
||
|
85916P
|
85916P
90987-02006 Relay[06.2001 -] KZN205,LN205 |
90987-02006 |
from US $26.75 |
||
|
89491
|
89491
89491-35040
Sensor, Engine Oil Level
[08.2001 -] KZN205 |
89491-35040 |
— | ||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[08.2001 -] KZN205 |
89493-60010 |
from US $2.51 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
|
9046400154
|
9046400154
90464-00154
New Genuine Part
|
90464-00154 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
