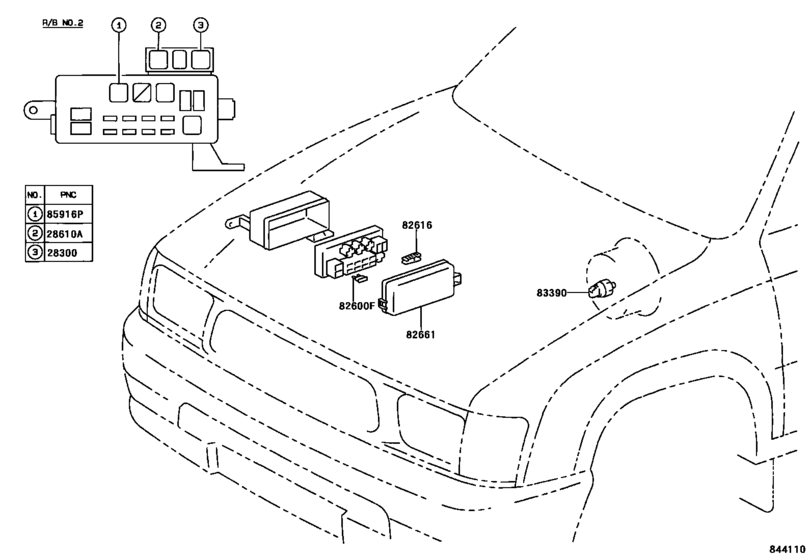

Switch & Relay & Computer ([06.2001 - ] ENGINE ROOM (0106- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- KZN205
- grade
- SR5
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX
- From
- 08.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-46010 Relay Assy, Starter[06.2001 -] 1KZTE,5L..KZN205,LN205 |
28300-46010 |
from US $57.15 |
||
|
28610A
|
28610A
28610-54360 Relay Assy, Glow Plug[06.2001 -] 1KZTE,5L..KZN205,LN205 |
28610-54360 |
from US $46.70 |
||
|
82600F
|
82600F
90080-82012
Fuse, Fuse Block
[08.2001 - 12.2004] KZN205 10A,(L) |
90080-82012 |
— | ||
|
82600F
|
82600F
90080-82013 Fuse, Fuse Block[08.2001 - 12.2004] KZN205 15A,(L) |
90080-82013 |
US $1.60 |
||
|
82600F
|
82600F
90080-82015
Fuse, Fuse Block
[08.2001 - 12.2004] KZN205 7.5A |
90080-82015 |
— | ||
|
82600F
|
82600F
90982-09002 Fusible Link[05.2002 - 12.2004] KZN205 10A,(J) |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[05.2002 - 12.2004] KZN205 15A,(J) |
90982-09003 |
from US $0.90 |
||
|
82616
|
82616
82616-89102
Puller, Fuse
[06.2001 -] KZN205,LN205 |
82616-89102 |
— | ||
|
82661
|
82661
82662-35780 Cover, Relay Block, No.1[05.2002 - 12.2004] KZN205 UPPER |
82662-35780 |
US $27.81 |
||
|
82661
|
82661
82663-35010
Cover, Relay Block, No.1
[08.2001 - 12.2004] KZN205 LOWER |
82663-35010 |
— | ||
|
83390
|
83390
83390-30100 Switch Assy, Vacuum Warning[06.2001 - 12.2004] KZN205,LN205 |
83390-30100 |
US $48.05 |
||
|
85916P
|
85916P
90987-02006 Relay[06.2001 -] KZN205,LN205 |
90987-02006 |
from US $26.75 |
