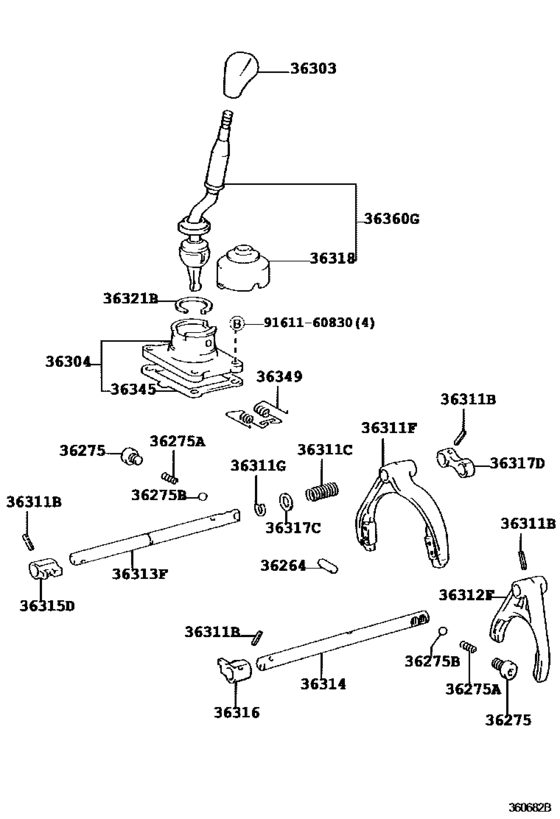

Transfer Lever & Shift Rod ([06.2001 - ] (0106- )SR5,SRV) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- KZN205
- grade
- SR5
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX
- From
- 08.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36264
|
36264
90250-10020 Pin Or Roller, Shift Inter-Lock[11.2001 - 12.2004] KZN205 L=25.7,OD=9.53 |
90250-10020 |
US $1.31 |
||
|
36275
|
36275
90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)[11.2001 - 12.2004] KZN205 |
90341-12014 |
from US $1.97 |
||
|
36275A
|
36275A
90501-16116 Spring, Compression (For Shift Detent Ball)[11.2001 - 12.2004] KZN205 L=23 |
90501-16116 |
US $1.10 |
||
|
36275B
|
36275B
90360-10003 Ball(For Transmission Oil Pump Cover)[11.2001 - 12.2004] KZN205 OD=9.52,STEEL |
90360-10003 |
from US $1.19 |
||
|
36303
|
36303
36303-35140-B3 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.2001 - 02.2002] KZN205 MD.GRAY,TRIM1# |
36303-35140-B3 |
US $30.14 |
||
| replacement | |||||
|
36303
|
36303
36303-35140-C0 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.2001 - 02.2002] KZN205 MD.GRAY,TRIM1# |
36303-35140-C0 |
US $32.18 |
||
|
36304
|
36304
36304-35051 Retainer Sub-Assy, Transfer Control Shift Lever[08.2001 - 12.2004] KZN205 |
36304-35051 |
from US $32.67 |
||
|
36311B
|
36311B
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[11.2001 - 12.2004] KZN205 L=22 |
90254-05001 |
from US $0.98 |
||
|
36311C
|
36311C
90501-20088 Spring, Compresion (For Shift Fork)[11.2001 - 12.2004] KZN205 |
90501-20088 |
US $1.31 |
||
|
36311F
|
36311F
36311-35030 Fork, Transfer Gear Shift, No.1[11.2001 - 12.2004] KZN205 |
36311-35030 |
US $70.76 |
||
|
36311G
|
36311G
90520-13002 Ring, Shaft Snap (For Shift Fork Shaft)[11.2001 - 12.2004] KZN205 |
90520-13002 |
from US $1.43 |
||
|
36312F
|
36312F
36312-35040 Fork, Transfer Gear Shift, No.2[11.2001 - 12.2004] KZN205 |
36312-35040 |
US $27.96 |
||
|
36313F
|
36313F
36313-35080
Shaft, Transfer Front Drive Shift Fork
[11.2001 - 12.2004] KZN205 |
36313-35080 |
— | ||
|
36314
|
36314
36314-35110
Shaft, Transfer High And Low Shift Fork
[11.2001 - 12.2004] KZN205 |
36314-35110 |
— | ||
|
36315D
|
36315D
36315-35010 Pin, Transfer Gear Shift Fork Shaft[11.2001 - 12.2004] KZN205 |
36315-35010 |
US $18 |
||
|
36316
|
36316
36316-35020 Head, Transfer Gear Shift, No.2[11.2001 - 12.2004] KZN205 |
36316-35020 |
US $19.57 |
||
|
36317C
|
36317C
36317-35020 Stopper, Transfer Shift Shaft[11.2001 - 12.2004] KZN205 |
36317-35020 |
from US $1.14 |
||
|
36317D
|
36317D
36317-35030 Stopper, Transfer Shift Shaft[11.2001 - 12.2004] KZN205 |
36317-35030 |
US $5.59 |
||
|
36318
|
36318
33555-35190 Boot, Transfer Front Drive Shift[08.2001 - 02.2002] KZN205 |
33555-35190 |
from US $5.20 |
||
|
36321B
|
36321B
90521-49003 Ring, Snap (For Shift Lever Spring Sheet)[06.2001 -] KZN205,LN205 |
90521-49003 |
from US $1.87 |
||
|
36345
|
36345
36345-35040 Gasket, Transfer Control Shift Lever Retainer[08.2001 - 12.2004] KZN205 |
36345-35040 |
from US $2.34 |
||
|
36349
|
36349
36349-35020 Spring, Transfer Select Return[08.2001 - 12.2004] KZN205 |
36349-35020 |
from US $6.09 |
||
|
36360G
|
36360G
36360-35181 Lever Assy, Transfer High & Low Shift[08.2001 -] KZN205 |
36360-35181 |
US $196.56 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.44 |
||
