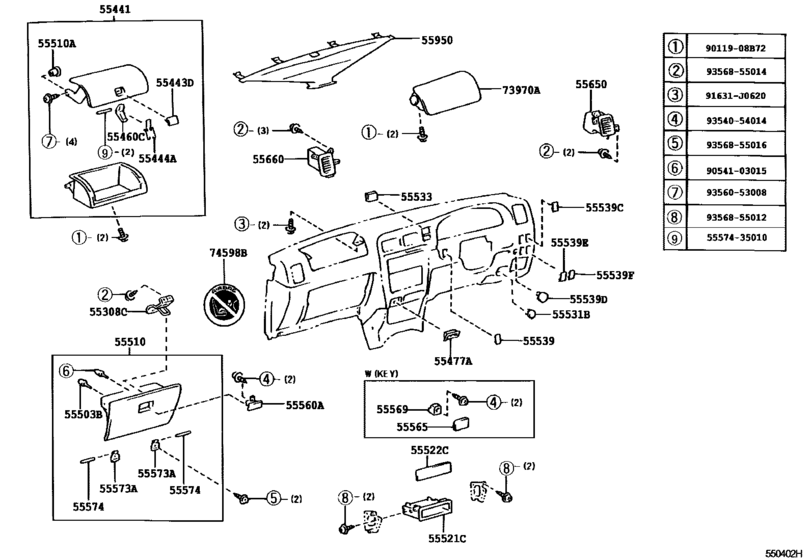

Instrument Panel & Glove Compartment ([08.1997 - ] (9708- )RHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- LN145
- grade
- DLX
- ENGINE
- 2L
- TRANSMISSION
- MTM
- CAB
- SCB
- Model
- HILUX
- From
- 08.1997
- To
- 08.1999
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55308C
|
55308C
55308-35020
Bracket Sub-Assy, Instrument Panel, Center
[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 |
55308-35020 |
— | ||
|
55441
|
55441
55440-35010-B0 Box, Instrument Panel[08.1997 - 08.2001] LN145,165..RHD MD.MOON MIST,TRIM1# |
55440-35010-B0 |
US $186.37 |
||
|
55443D
|
55443D
55443-35010-B0 Knob, Instrument Panel Box Door[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
55443-35010-B0 |
from US $9.34 |
||
|
55444A
|
55444A
55444-35010 Spring, Instrument Panel Box[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 |
55444-35010 |
from US $1.07 |
||
|
55460C
|
55460C
55460-35010 Lock Assy, Instrument Panel Box[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 |
55460-35010 |
from US $9.77 |
||
|
55477A
|
55477A
55477-35010 Bezel, Cigarette Lighter Hole[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 |
55477-35010 |
US $5.07 |
||
|
55503B
|
55503B
90541-05080 Cushion(For Glove Compartment)[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 |
90541-05080 |
from US $1.49 |
||
|
55510
|
55510
55550-35010-B0
Door Sub-Assy, Glove Compartment
[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 MD. MOON MIST,TRIM1# |
55550-35010-B0 |
— | ||
|
55510A
|
55510A
58871-30020
Cushion(For Glove Compartment Door)
[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 |
58871-30020 |
— | ||
|
55521C
|
55521C
55521-89102
Cover, Stereo Opening
[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 |
55521-89102 |
— | ||
| replacement | |||||
|
55521C
|
55521C
55521-37030 Cover, Stereo Opening[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 |
55521-37030 |
US $15.23 |
||
|
55522C
|
55522C
55522-89105
Cover, Radio Tuner Opening
[08.1997 - 05.1998] LN145,150,165,170,RZN168,173 |
55522-89105 |
— | ||
|
55533
|
55533
55533-35030 Cover, Auto Clock HoleAUTO CLOCK HOLE [08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 |
55533-35030 |
US $9.90 |
||
|
55539
|
55539
55539-32010-B2
Cover, Spare Switch Hole
[08.1997 - 08.2001] LN165..SCB;LN165..LHD..DCB;LN145,150,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
55539-32010-B2 |
— | ||
| replacement | |||||
|
55539
|
55539
55539-32010-C0 Cover, Cooler Switch Hole[08.1997 - 08.2001] LN165..SCB;LN165..LHD..DCB;LN145,150,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55539D
|
55539D
55539-35010-B0
Cover, Spare Switch Hole
[08.1997 - 08.2001] LN145,165..RHD MD.MOON MIST,TRIM1# |
55539-35010-B0 |
— | ||
|
55539E
|
55539E
55539-20080-B2
Cover, Spare Switch Hole
[08.1997 - 08.1999] LN145,150,165,170,RZN168,173 MD.MOON MIST,TRIM1# |
55539-20080-B2 |
— | ||
| replacement | |||||
|
55539E
|
55539E
55539-12130-B2
Cover, Spare Switch Hole
[08.1997 - 08.1999] LN145,150,165,170,RZN168,173 MD.MOON MIST,TRIM1# |
55539-12130-B2 |
— | ||
|
55539F
|
55539F
55539-20080-B2
Cover, Spare Switch Hole
[08.1997 - 08.1999] LN145,150,165,170,RZN168,173 MD.MOON MIST,TRIM1# |
55539-20080-B2 |
— | ||
| replacement | |||||
|
55539F
|
55539F
55539-12130-B2
Cover, Spare Switch Hole
[08.1997 - 08.1999] LN145,150,165,170,RZN168,173 MD.MOON MIST,TRIM1# |
55539-12130-B2 |
— | ||
|
55560A
|
55560A
55560-34020-B0 Lock Assy, Glove Compartment Door[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
55560-34020-B0 |
from US $21.64 |
||
|
55573A
|
55573A
55573-32010 Hinge Sub-Assy, Glove Compartment Door[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 |
55573-32010 |
US $5.07 |
||
|
55574
|
55574
90254-04016 Shaft, Glove Compartment Door Hinge[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 |
90254-04016 |
US $1.40 |
||
|
55650
|
55650
55650-35050
Register Assy, Instrument Panel, No.1
[08.1997 - 08.2001] LN145,165..RHD |
55650-35050 |
— | ||
|
55660
|
55660
55660-35070 Register Assy, Instrument Panel, No.2[08.1997 - 08.2001] LN145,165..RHD |
55660-35070 |
US $91.73 |
||
|
55950
|
55950
55950-35010 Nozzle Assy, Defroster[08.1997 - 08.2001] LN145,165..RHD |
55950-35010 |
US $77.17 |
||
|
73970A
|
73970A
73970-0W110-B0 Air Bag Assy, Instrument Panel Passenger[08.1997 - 08.2001] LN145,165..RHD MD. MOON MIST,TRIM1# |
73970-0W110-B0 |
US $1,776.32 |
||
|
74598B
|
74598B
74598-20010 Label, Driver & Passenger Air Bag Caution[08.1997 - 08.2001] LN145,150,165,170,190,RZN168,173 |
74598-20010 |
US $1.61 |
||
|
91631J0620
|
91631J0620
91631-J0620 New Genuine Part |
91631-J0620 |
US $0.69 |
||
|
9011908B72
|
9011908B72
90119-08B72 BOLT WWASHER |
90119-08B72 |
US $1.16 |
||
|
5557435010
|
5557435010
55574-35010 Shaft, Glove Compartment Door Hinge |
55574-35010 |
US $3.94 |
||
|
9054103015
|
9054103015
90541-03015 Cushion, Instrument Panel Box |
90541-03015 |
from US $1.56 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $0.98 |
||
|
9356053008
|
9356053008
93560-53008 New Genuine Part |
93560-53008 |
US $1.79 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
