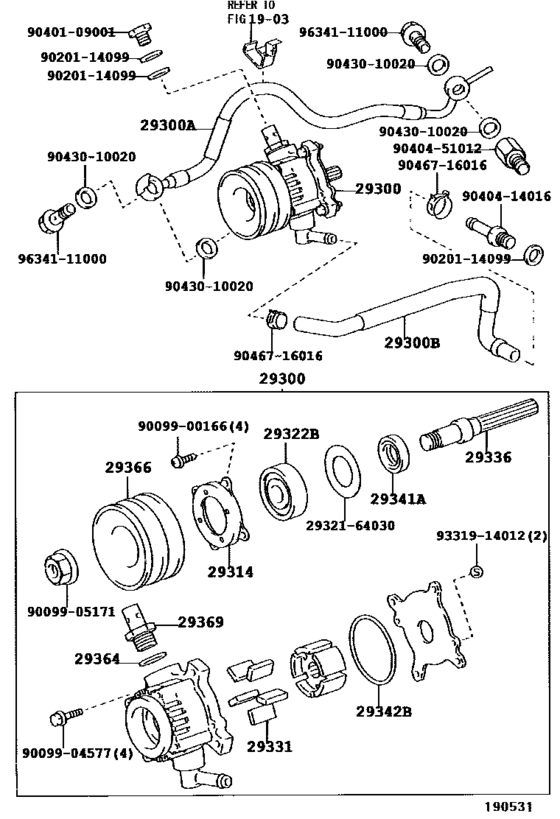

Vacuum Pump ([08.1997 - ] (9708- )2L) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- LN145
- grade
- DLX
- ENGINE
- 2L
- TRANSMISSION
- MTM
- CAB
- SCB
- Model
- HILUX
- From
- 08.1997
- To
- 08.1999
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
29300
|
29300
29300-54180 Pump Assy, Vacuum[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
29300-54180 |
from US $326.35 |
||
|
29300A
|
29300A
90923-02118 Hose, Vacuum Pump Oil Inlet[08.1997 - 08.2001] 2L..LN145,150 |
90923-02118 |
from US $87.15 |
||
|
29300B
|
29300B
29611-54050 Hose, Vacuum Pump Oil Outlet[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
29611-54050 |
from US $22.99 |
||
|
29314
|
29314
29314-64030
Ring, Stop
[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
29314-64030 |
— | ||
|
29322B
|
29322B
90099-10199 Bearing(For Alternator Drive End Frame)[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
90099-10199 |
from US $19.39 |
||
|
29331
|
29331
29331-54130 Blade, Vacuum Pump, A[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
29331-54130 |
US $4.54 |
||
|
29336
|
29336
29336-64031
Shaft, Vacuum Pump
[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
29336-64031 |
— | ||
|
29341A
|
29341A
29341-64030 Seal, Vacuum Pump Oil[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
29341-64030 |
from US $7.16 |
||
|
29342B
|
29342B
29342-64030 Packing, Vacuum Pump[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
29342-64030 |
from US $3.32 |
||
|
29364
|
29364
29364-66010 Washer, Vacuum Pump[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
29364-66010 |
US $3.23 |
||
|
29366
|
29366
29366-54110
Pulley, Vacuum Pump
[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
29366-54110 |
— | ||
|
29369
|
29369
29369-64030 Valve Sub-Assy, Check[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
29369-64030 |
US $23.76 |
||
|
2932164030
|
2932164030
29321-64030 Ring, Oil Seal Stop, Vacuum Pump |
29321-64030 |
US $1.46 |
||
|
9009900166
|
9009900166
90099-00166
New Genuine Part
|
90099-00166 |
— | ||
|
9009904577
|
9009904577
90099-04577
New Genuine Part
|
90099-04577 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.50 |
||
|
9040109001
|
9040109001
90401-09001 Bolt, Union(For Vacuum Pump Union) |
90401-09001 |
US $2.48 |
||
| replacement | |||||
|
9040109001
|
9040109001
90401-09003 Bolt, Union(For Vacuum Pump Union) |
90401-09003 |
from US $2.81 |
||
|
9040414016
|
9040414016
90404-14016 New Genuine Part |
90404-14016 |
US $3.30 |
||
|
9040451012
|
9040451012
90404-51012 UNION VACCUM HOSE |
90404-51012 |
US $2.48 |
||
|
9043010020
|
9043010020
90430-10020 GASKETROUND TYPE |
90430-10020 |
US $2.33 |
||
|
9046716016
|
9046716016
90467-16016
Clamp Or Crip, Hose
|
90467-16016 |
— | ||
| replacement | |||||
|
9046716016
|
9046716016
90467-15018 Clamp Or Crip, Hose |
90467-15018 |
US $4.48 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.25 |
||
|
9634111000
|
9634111000
96341-11000 Bolt, Union(For Turbo Oil Inlet Pipe) |
96341-11000 |
from US $2.77 |
||
