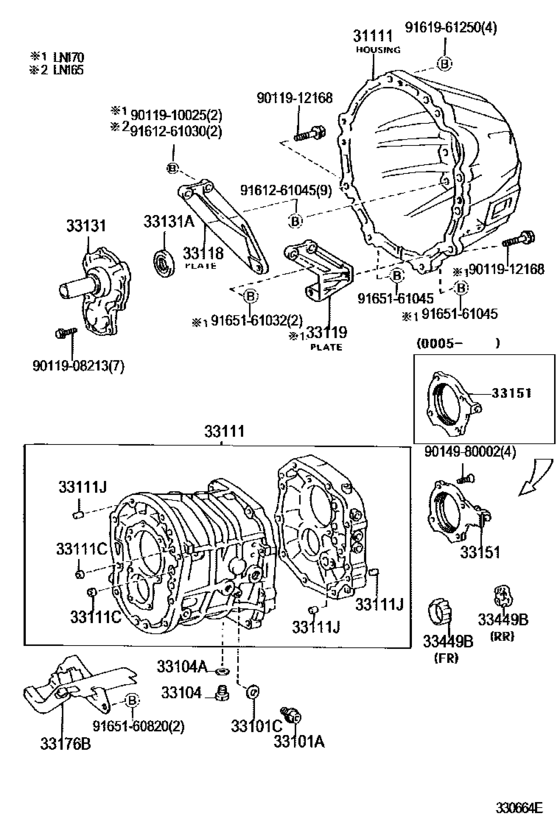

Clutch Housing & Transmission Case (Mtm) ([08.1997 - 08.2001] W56 (9708-0108)LN165,170) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1998 - 2001
- Sales region
- Europe
- Frame
- LN165
- grade
- DLX
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- CAB
- DCB
- Model
- HILUX
- From
- 05.1998
- To
- 08.2001
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-35032
Housing, Clutch
[08.1997 - 12.1998] LN165,170 |
31111-35032 |
— | ||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[08.1997 - 08.2001] LN145,150,165,170,RZN168,173 |
90341-18006 |
from US $3.23 |
||
|
33101C
|
33101C
90430-18008 Gasket[08.1997 - 08.2001] LN145,150,165,170,RZN168,173 |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1997 - 08.2001] LN145,150,165,170,RZN168,173 |
90430-T0021 |
US $1.01 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[08.1997 - 08.2001] LN165,170,RZN168,173 |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.1997 - 08.2001] LN145,150,165,170,RZN168,173 |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1997 - 08.2001] LN145,150,165,170,RZN168,173 |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-30071 Case, Manual Transmission[08.1997 - 08.2001] LN165,170,RZN168,173 |
33101-30071 |
US $394.58 |
||
|
33111C
|
33111C
96411-41800 Plug, Tight, No.1[08.1997 - 08.2001] LN165,170,RZN168,173 OD=18 |
96411-41800 |
from US $1.66 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[08.1997 - 08.2001] LN165,170,RZN168,173 L=16,OD=12 |
90250-12002 |
from US $1.27 |
||
|
33118
|
33118
33118-35060
Plate, Stiffener, Rh(Mtm)
[08.1997 - 08.2001] LN165,170 |
33118-35060 |
— | ||
|
33131
|
33131
33131-30080 Retainer, Bearing, Front(Mtm)[08.1997 - 08.2001] LN165,170,RZN168,173 |
33131-30080 |
US $61.85 |
||
|
33131A
|
33131A
90311-30014 Seal, Oil(For Transmission Front Bearing Retainer)[08.1997 - 08.2001] LN145,150,165,170,RZN168,173 |
90311-30014 |
from US $5.38 |
||
|
33151
|
33151
33107-30020
Retainer, Output Shaft Rear Bearing(Mtm)
[08.1997 - 10.2000] LN165,170,RZN168,173 |
33107-30020 |
— | ||
|
33151
|
33151
33151-30051 Retainer, Output Shaft Rear Bearing(Mtm)[10.2000 - 08.2001] LN165,170,RZN168,173 |
33151-30051 |
US $19.22 |
||
|
33176B
|
33176B
33176-30020
Separator, Transmission Oil(Mtm)
[08.1997 - 08.2001] LN165,170,RZN168,173 |
33176-30020 |
— | ||
|
33449B
|
33449B
33449-30010 Magnet, Transmission[08.1997 - 08.2001] LN165,170,RZN168,173 REAR |
33449-30010 |
US $4.80 |
||
|
33449B
|
33449B
33449-30020 Magnet, Transmission[08.1997 - 08.2001] LN165,170,RZN168,173 FRONT |
33449-30020 |
US $3.20 |
||
|
9011908213
|
9011908213
90119-08213 Bolt, W/washer(For Transmission Case Cover) |
90119-08213 |
US $3.23 |
||
|
9011910025
|
9011910025
90119-10025 Bolt (For Transmission Control Cable Bracket) |
90119-10025 |
US $1.89 |
||
| replacement | |||||
|
9011910025
|
9011910025
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9011912168
|
9011912168
90119-12168 Bolt(For Transaxle & Engine Setting) |
90119-12168 |
from US $2.01 |
||
|
9014980002
|
9014980002
90149-80002 BOLT |
90149-80002 |
US $0.51 |
||
|
9161261030
|
9161261030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9165161032
|
9165161032
91651-61032 BOLT |
91651-61032 |
US $2.06 |
||
|
9165161045
|
9165161045
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
