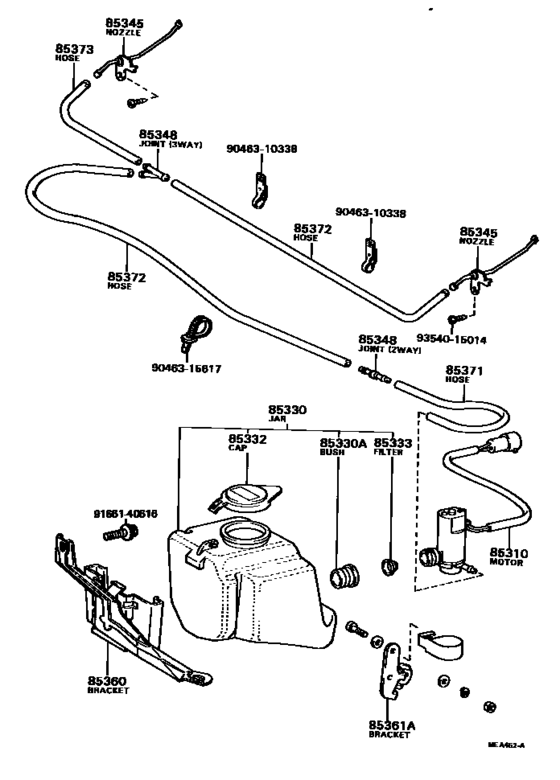

Windshield Washer ([03.1981 - 07.1983] (8103-8307)LN36,46..LHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1981 - 1983
- Sales region
- Europe
- Frame
- LN46
- grade
- STD
- body
- T1
- ENGINE
- L
- DESTINATION
- GEN
- CAB
- ECB
- Model
- HILUX
- From
- 03.1981
- To
- 07.1983
- Gear Shift Type
- 4F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85310
|
85310
85310-89103
Motor And Pump Assy, Windshield Washer
[03.1981 - 08.1981] LN36,46..LHD |
85310-89103 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-12310
Motor And Pump Assy, Windshield Washer
[03.1981 - 08.1981] LN36,46..LHD |
85330-12310 |
— | ||
|
85310
|
85310
85310-95110
Motor Assy, Rear Washer
[08.1981 - 07.1983] LN36,46..LHD |
85310-95110 |
— | ||
| replacement | |||||
|
85310
|
85310
85310-89115
Motor Assy, Rear Washer
[08.1981 - 07.1983] LN36,46..LHD |
85310-89115 |
— | ||
|
85330
|
85330
85330-89110
Jar Assy, Windshield Washer
[03.1981 - 08.1981] LN36,46..LHD |
85330-89110 |
— | ||
|
85330
|
85330
85330-95110
Jar Assy, Windshield Washer
[08.1981 - 07.1983] LN36,46..LHD |
85330-95110 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[08.1981 - 07.1983] LN36,46..LHD |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[08.1981 - 07.1983] LN36,46..LHD |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[08.1981 - 07.1983] LN36,46..LHD |
90068-32002 |
US $7.46 |
||
|
85330A
|
85330A
90099-32103
Bush, Windshield Washer Jar
[03.1981 - 08.1981] LN36,46..LHD |
90099-32103 |
— | ||
|
85332
|
85332
85332-16010
Cap Assy, Windshield Washer
[08.1981 - 07.1983] LN36,46..LHD |
85332-16010 |
— | ||
|
85332
|
85332
85332-20060
Cap Assy, Windshield Washer
[03.1981 - 08.1981] LN36,46..LHD |
85332-20060 |
— | ||
| replacement | |||||
|
85332
|
85332
85332-12320 Cap Assy, Windshield Washer[03.1981 - 08.1981] LN36,46..LHD |
85332-12320 |
US $2.10 |
||
|
85333
|
85333
85333-20020
Filter, Windshield Washer Jar
[03.1981 - 07.1983] LN36,46..LHD |
85333-20020 |
— | ||
|
85345
|
85345
85341-89104
Nozzle, Windshield Washer
[08.1978 - 03.1984] LN3#,4#,RN3#,4# |
85341-89104 |
— | ||
|
85348
|
85348
85349-20010
Joint, Windshield Washer Hose, No.1
[03.1981 - 08.1981] LN36,46..LHD 2WAY |
85349-20010 |
— | ||
| replacement | |||||
|
85348
|
85348
85334-22480 Joint, Windshield Washer Hose, No.1[03.1981 - 08.1981] LN36,46..LHD 2WAY |
85334-22480 |
from US $0.84 |
||
|
85348
|
85348
85355-14010
Joint, Windshield Washer Hose, No.1
[08.1978 - 03.1984] LN3#,4#,RN3#,4# 3 WAY |
85355-14010 |
— | ||
| replacement | |||||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[08.1978 - 03.1984] LN3#,4#,RN3#,4# 3 WAY |
85348-12250 |
from US $0.55 |
||
|
85360
|
85360
53752-89107
Bracket Assy, Windshield Washer
[03.1981 - 07.1983] LN36,46..LHD |
53752-89107 |
— | ||
|
85361A
|
85361A
53752-89106
Bracket, Windshield Washer, No.1
[03.1981 - 07.1983] LN36,46..LHD |
53752-89106 |
— | ||
|
85371
|
85371
90099-33346
Hose, Windshield Washer (From Motor To Joint)
[03.1981 - 08.1981] LN36,46..LHD *H,L=200 |
90099-33346 |
— | ||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1981 - 07.1983] LN36,46..LHD *H,L=200; LN46..RHD..EUR *H,L=400; RN3#,40,41;RN46..ARL..IV3;LN30,40..EUR,GEN;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA *H,L=400 |
90446-06013 |
from US $0.70 |
||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[03.1981 - 08.1981] LN36,46..LHD *H,L=710 |
90446-06013 |
from US $0.70 |
||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1978 - 03.1984] LN3#,4#,RN3#,4# *H,L=580 |
90446-06013 |
from US $0.70 |
||
|
9046310338
|
9046310338
90463-10338
Clamp(For Hood Lock Control Cable)
|
90463-10338 |
— | ||
|
9046315617
|
9046315617
90463-15617 New Genuine Part |
90463-15617 |
US $2.18 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.43 |
||
|
9354015014
|
9354015014
93540-15014 New Genuine Part |
93540-15014 |
from US $1.97 |
||
