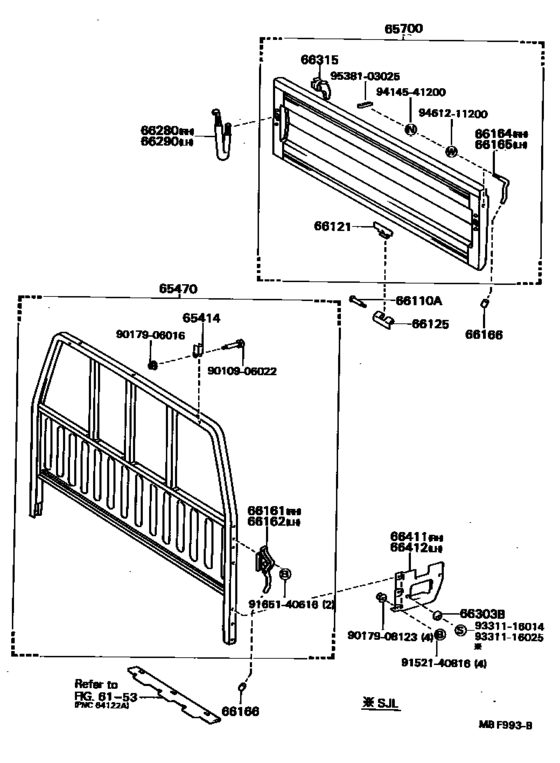

Rear Body Guard Frame & Tail Gate ([11.1983 - ] (8311- )SJL,T3) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- LN55
- grade
- DLX
- body
- T3
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- HILUX
- From
- 11.1983
- To
- 08.1985
- Gear Shift Type
- 5H
- Vehicle Model
- Hilux
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65414
|
65414
65414-89102 Stopper, Guard Frame[11.1983 - 03.1989] LN5#,60,65,YN5#,60,65..SJL,T1,T3,TW |
65414-89102 |
US $8.74 |
||
|
65470
|
65470
65470-89119 Board Assy, Header[11.1983 - 08.1988] LN55,56,YN56..T3 |
65470-89119 |
US $685.78 |
||
|
65700
|
65700
65700-95702 Gate Assy, Rear Body Tail[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
65700-95702 |
US $821.18 |
||
|
66110A
|
66110A
66113-87402 Cover, Tail Gate Service Hole[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
66113-87402 |
US $11.36 |
||
|
66121
|
66121
66111-87403 Hinge, Tail Gate, Male[11.1983 - 08.1986] LN55,56,YN56..T3 |
66111-87403 |
US $15.29 |
||
| replacement | |||||
|
66121
|
66121
66111-87404 Hinge, Tail Gate Male[11.1983 - 08.1986] LN55,56,YN56..T3 |
66111-87404 |
US $20.24 |
||
|
66125
|
66125
66112-87402 Hinge Assy, Tail Gate[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
66112-87402 |
US $11.36 |
||
|
66161
|
66161
66101-87401 Latch Sub-Assy, Gate[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
66101-87401 |
US $82.99 |
||
|
66162
|
66162
66102-87401 Latch Sub-Assy, Gate[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
66102-87401 |
US $82.99 |
||
|
66164
|
66164
66161-87403 Handle, Side Gate Latch, Rh[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
66161-87403 |
US $15.29 |
||
|
66165
|
66165
66162-87402 Handle, Side Gate Latch, Lh[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
66162-87402 |
US $15.43 |
||
|
66166
|
66166
66165-87402 Cap, Gate Latch Handle[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
66165-87402 |
US $5.38 |
||
|
66280
|
66280
66280-95700 Chain Assy, Tail Gate, Rh[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
66280-95700 |
US $28.83 |
||
|
66290
|
66290
66280-95700 Chain Assy, Tail Gate, Rh[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
66280-95700 |
US $28.83 |
||
|
66303B
|
66303B
66303-87403 Bumper, Tail Gate[11.1983 - 08.1988] LN55,56,YN56..T3 |
66303-87403 |
US $8.60 |
||
|
66315
|
66315
66311-87401 Rope Hook Set[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
66311-87401 |
US $5.97 |
||
|
66411
|
66411
66411-95700 Bracket, Guard Frame, Rh[11.1983 - 08.1988] LN55,56,YN56..T3 |
66411-95700 |
US $28.83 |
||
| replacement | |||||
|
66411
|
66411
66411-95701 Bracket Sub-Assy, Guad Frame, Rh[11.1983 - 08.1988] LN55,56,YN56..T3 |
66411-95701 |
US $29.12 |
||
|
66412
|
66412
66412-95700 Bracket, Guard Frame, Lh[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
66412-95700 |
US $28.83 |
||
| replacement | |||||
|
66412
|
66412
66412-95701 Bracket Sub-Assy, Guad Frame, Lh[11.1983 - 08.1988] LN55,56,YN56..SJL,T3 |
66412-95701 |
US $29.12 |
||
|
9010906022
|
9010906022
90109-06022
Bolt
|
90109-06022 |
— | ||
|
9017906016
|
9017906016
90179-06016 New Genuine Part |
90179-06016 |
US $1.05 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9152140816
|
9152140816
91521-40816 New Genuine Part |
91521-40816 |
US $1.89 |
||
| replacement | |||||
|
9152140816
|
9152140816
91511-B0816 BOLT |
91511-B0816 |
US $0.84 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9331116014
|
9331116014
93311-16014 Screw |
93311-16014 |
US $1.25 |
||
|
9331116025
|
9331116025
93311-16025 New Genuine Part |
93311-16025 |
US $3.05 |
||
|
9414541200
|
9414541200
94145-41200 Nut(For Dust Cover To Steering Knuckle Arm Setting) |
94145-41200 |
US $1.89 |
||
| replacement | |||||
|
9414541200
|
9414541200
94142-01202 Nut(For Dust Cover To Steering Knuckle Arm Setting) |
94142-01202 |
US $2.18 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
from US $0.72 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.78 |
||
