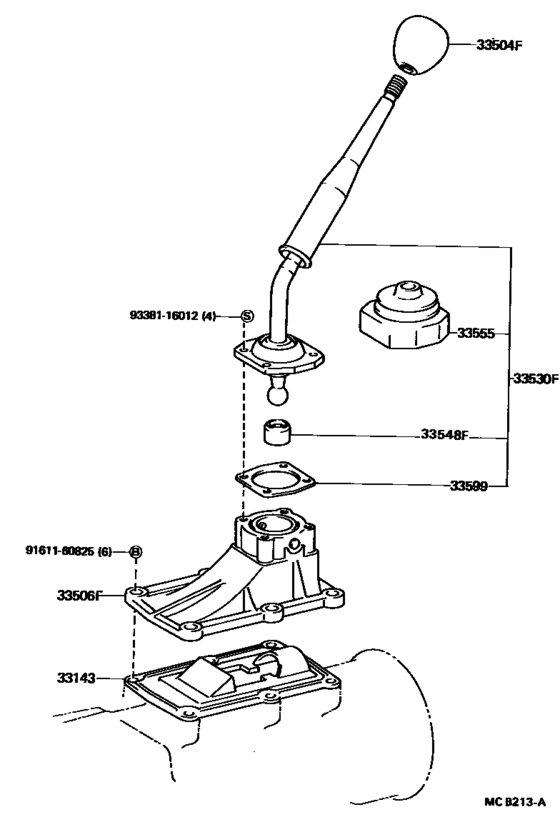

Shift Lever & Retainer ([11.1984 - ] (8411- )TD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1985 - 1989
- Sales region
- Japan
- Frame
- LN61
- grade
- SSR
- body
- V
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- HILUX
- From
- 08.1985
- To
- 03.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33143
|
33143
33143-35020
Plate, Extension Housing Oil Baffle
[11.1984 - 03.1989] LN60,61..TD |
33143-35020 |
— | ||
|
33504F
|
33504F
33504-20052-01
Knob Sub-Assy, Shift Lever
[11.1983 - 08.1986] LN6#,YN60,61..SR,SSR BLACK,BLACK |
33504-20052-01 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-14050-B8 Knob Sub-Assy, Shift Lever (Black)[11.1983 - 08.1986] LN6#,YN60,61..SR,SSR BLACK,BLACK |
33504-14050-B8 |
from US $38.20 |
||
|
33504F
|
33504F
33504-20052-23
Knob Sub-Assy, Shift Lever
[08.1986 - 03.1989] LN6#,YN6#..5F..(SR,SSR) GRAY,GRAY,TRIM1# |
33504-20052-23 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-14050-B8 Knob Sub-Assy, Shift Lever (Black)[08.1986 - 03.1989] LN6#,YN6#..5F..(SR,SSR) GRAY,GRAY,TRIM1# |
33504-14050-B8 |
from US $38.20 |
||
|
33504F
|
33504F
33504-20052-34 Knob Sub-Assy, Shift Lever[08.1986 - 03.1989] LN6#,YN6#..5F..(SR,SSR) BLUE,BLUE,TRIM8# |
33504-20052-34 |
US $67.70 |
||
| replacement | |||||
|
33504F
|
33504F
33504-14050-B8 Knob Sub-Assy, Shift Lever (Black)[08.1986 - 03.1989] LN6#,YN6#..5F..(SR,SSR) BLUE,BLUE,TRIM8# |
33504-14050-B8 |
from US $38.20 |
||
|
33504F
|
33504F
33504-20052-45 Knob Sub-Assy, Shift Lever[08.1986 - 03.1989] LN6#,YN6#..5F..(SR,SSR) BEIGE,BEIGE,TRIM4# |
33504-20052-45 |
US $67.70 |
||
| replacement | |||||
|
33504F
|
33504F
33504-14050-B8 Knob Sub-Assy, Shift Lever (Black)[08.1986 - 03.1989] LN6#,YN6#..5F..(SR,SSR) BEIGE,BEIGE,TRIM4# |
33504-14050-B8 |
from US $38.20 |
||
|
33506F
|
33506F
33570-35020
Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
[11.1984 - 03.1989] LN60,61..TD |
33570-35020 |
— | ||
|
33530F
|
33530F
33530-35090 Lever Assy, Shift (For Floor Shift)[11.1984 - 03.1989] LN60,61..TD |
33530-35090 |
US $99.01 |
||
|
33548F
|
33548F
33548-31010 Bush, Shift Lever[11.1983 - 03.1989] LN6#,YN6# |
33548-31010 |
from US $3.49 |
||
|
33555
|
33555
33555-22050 Boot, Shift Lever[11.1984 - 03.1989] LN60,61..TD |
33555-22050 |
from US $9.86 |
||
|
33599
|
33599
33584-22020 Gasket, Control Shift Lever Retainer, No.2[11.1984 - 03.1989] LN60,61..TD |
33584-22020 |
from US $0.82 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.51 |
||
