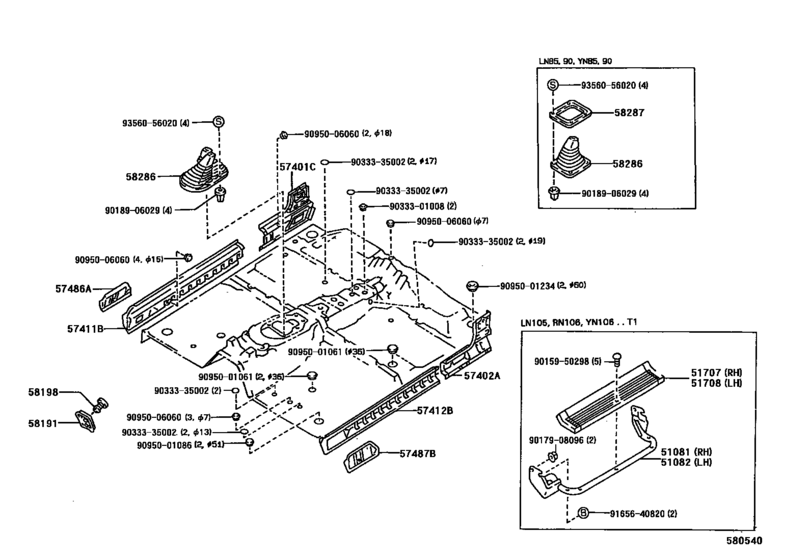

Front Floor Panel & Front Floor Member ([08.1988 - ] (8808- )LN105,85,RN106,YN106,85..JPP..T1) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- LN85
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- HILUX
- From
- 08.1992
- To
- 08.1997
- Body
- RCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (JPP)
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57401C
|
57401C
57401-89114
Member Sub-Assy, Floor Side, Inner Rh
[08.1988 -] LN105,85,RN106,YN106,85..JPP..T1 |
57401-89114 |
— | ||
|
57402A
|
57402A
57402-89114
Member Sub-Assy, Floor Side, Inner Lh
[08.1988 -] LN105,85,RN106,YN106,85..JPP..T1 |
57402-89114 |
— | ||
|
57411B
|
57411B
57411-35010
Member, Floor Side, Inner Rh
[08.1990 -] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
57411-35010 |
— | ||
|
57412B
|
57412B
57412-35010
Member, Floor Side, Inner Lh
[08.1990 -] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
57412-35010 |
— | ||
|
57486A
|
57486A
57486-89104
Reinforcement, Floor Side Member, No.1 Rh
[08.1988 -] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
57486-89104 |
— | ||
|
57487B
|
57487B
57487-89102
Reinforcement, Floor Side Member, No.1 Lh
[08.1988 -] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
57487-89102 |
— | ||
|
58286
|
58286
58280-89111 Boot, Shift & Select Lever, No.1SHIFT & SELECT LEVER, NO.1 [08.1988 -] LN85,90..JPP |
58280-89111 |
from US $31.53 |
||
|
58287
|
58287
58287-89113 Retainer, Shift Lever BootSHIFT LEVER BOOT [08.1988 -] LN85,90,YN85,90..JPP (J) |
58287-89113 |
US $34.51 |
||
|
9015950298
|
9015950298
90159-50298 New Genuine Part |
90159-50298 |
US $1.51 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.40 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
from US $0.84 |
||
|
9033301008
|
9033301008
90333-01008 New Genuine Part |
90333-01008 |
US $1.79 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.43 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001086
|
9095001086
90950-01086 PLUG |
90950-01086 |
from US $3.84 |
||
|
9095001234
|
9095001234
90950-01234 Cover, Rear Floor Hole |
90950-01234 |
US $3.58 |
||
|
9095006060
|
9095006060
90950-06060 New Genuine Part |
90950-06060 |
US $1.97 |
||
|
9165640820
|
9165640820
91656-40820
BOLT
|
91656-40820 |
— | ||
| replacement | |||||
|
9165640820
|
9165640820
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
|
9356056020
|
9356056020
93560-56020 SCREW |
93560-56020 |
US $2.51 |
||
