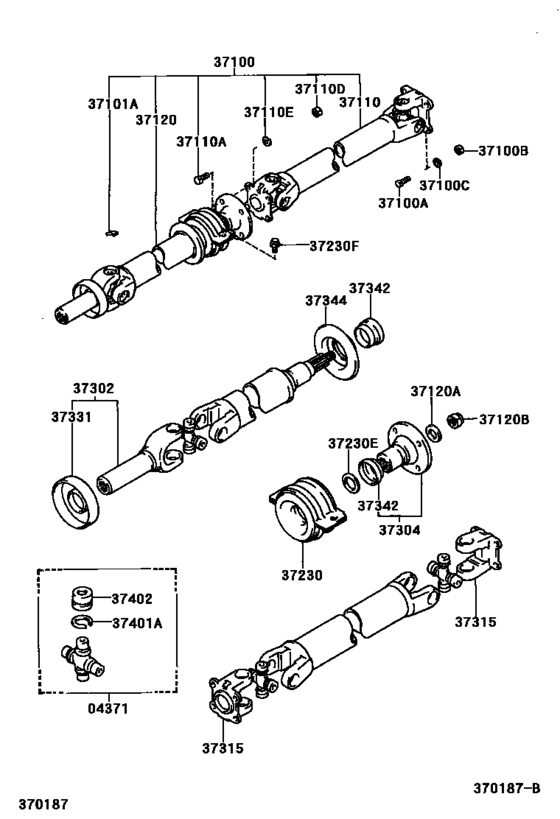

Propeller Shaft & Universal Joint ([08.1988 - ] (8808- )LN85,90,YN85,90..JPP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- LN85
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- HILUX
- From
- 08.1992
- To
- 08.1997
- Body
- RCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (JPP)
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04371
|
04371
04371-25010 Spider Kit, Universal Joint(For Propeller Shaft)[08.1988 - 08.1997] LN85,90,YN85,90..JPP |
04371-25010 |
from US $56.98 |
||
|
37100
|
37100
37100-35270 Shaft Assy, Propeller W/center Bearing[08.1988 - 08.1997] LN85,YN85..JPP |
37100-35270 |
US $1,303.12 |
||
|
37100A
|
37100A
90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.1988 - 08.1997] KZN130,LN130,85,90,VZN130,YN85,90..JPP..5F |
90105-10085 |
from US $1.13 |
||
|
37100B
|
37100B
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)[08.1988 - 08.1997] LN85,90,YN85,90..JPP |
90179-10059 |
from US $2.24 |
||
|
37100C
|
37100C
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
[08.1988 - 08.1997] LN85,90,YN85,90..JPP |
90204-10002 |
— | ||
| replacement | |||||
|
37100C
|
37100C
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)[08.1988 - 08.1997] LN85,90,YN85,90..JPP |
90560-10H00 |
from US $1.93 |
||
|
37101A
|
37101A
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 10G,L=20.7 |
90937-01132 |
US $3.94 |
||
|
37101A
|
37101A
90937-01136 Piece, Balance, No.1 (For Propeller Shaft)[08.1991 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 20G,L=41.4 |
90937-01136 |
US $3.20 |
||
|
37101A
|
37101A
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 2G,T=2.0 |
90937-01147 |
US $2.04 |
||
|
37101A
|
37101A
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 4G,T=2.0 |
90937-01148 |
US $2.51 |
||
|
37101A
|
37101A
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 6G,L=12.4 |
90937-01149 |
US $2.51 |
||
|
37101A
|
37101A
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 8G,L=16.6 |
90937-01150 |
US $2.51 |
||
|
37101A
|
37101A
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 12G,L=24.9 |
90937-01151 |
US $2.69 |
||
|
37101A
|
37101A
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 14G,L=29.0 |
90937-01152 |
US $2.51 |
||
|
37101A
|
37101A
90937-01153 Piece, Balance, No.1 (For Propeller Shaft)[08.1991 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 16G,L=33.2 |
90937-01153 |
US $1.31 |
||
|
37101A
|
37101A
90937-01154 Piece, Balance, No.1 (For Propeller Shaft)[08.1991 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 18G,L=37.3 |
90937-01154 |
US $1.75 |
||
|
37101A
|
37101A
90937-01155 Piece, Balance, No.1 (For Propeller Shaft)[08.1991 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 22G,L=45.6 |
90937-01155 |
US $1.75 |
||
|
37101A
|
37101A
90937-01156 Piece, Balance, No.1 (For Propeller Shaft)[08.1991 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 24G,L=49.7 |
90937-01156 |
US $1.75 |
||
|
37101A
|
37101A
90937-01157 Piece, Balance, No.1 (For Propeller Shaft)[08.1991 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 26G,L=53.9 |
90937-01157 |
US $1.75 |
||
|
37101A
|
37101A
90937-01158 Piece, Balance, No.1 (For Propeller Shaft)[08.1991 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 28G,L=58.1 |
90937-01158 |
US $1.75 |
||
|
37101A
|
37101A
90937-01201 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 08.1997] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP 30G,T=4.5,L=27.4 |
90937-01201 |
US $6.55 |
||
|
37110
|
37110
37110-35230 Shaft Assy, Propeller[08.1988 - 08.1997] LN85,90,YN85,90..JPP |
37110-35230 |
US $1,009.01 |
||
|
37110A
|
37110A
90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.1988 - 08.1997] LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP *10-1.00PX27-13 |
90105-10085 |
from US $1.13 |
||
|
37110D
|
37110D
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)[08.1988 - 08.1997] LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
90179-10059 |
from US $2.24 |
||
|
37110E
|
37110E
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
[08.1988 - 08.1997] LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
90204-10002 |
— | ||
| replacement | |||||
|
37110E
|
37110E
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)[08.1988 - 08.1997] LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
90560-10H00 |
from US $1.93 |
||
|
37120
|
37120
37120-35220 Shaft Assy, Propeller Intermediate[08.1988 - 08.1997] LN85,YN85..JPP |
37120-35220 |
US $767.31 |
||
|
37120A
|
37120A
90201-20005 Washer, Plate (For Flange Yoke)[08.1988 - 08.1997] LN85,90,YN85,90..JPP OD=33.5,T=4.0 |
90201-20005 |
from US $2.07 |
||
|
37120B
|
37120B
90179-20006 Nut (For Propeller Intermediate Shaft Setting)[08.1988 - 08.1997] LN85,90,YN85,90..JPP |
90179-20006 |
from US $2.24 |
||
|
37230
|
37230
37230-35070 Bearing Assy, Center Support, No.1[08.1988 - 08.1997] LN85,90,YN85,90..JPP |
37230-35070 |
from US $115.02 |
||
|
37230E
|
37230E
90201-28005 Washer, No.1 (For Center Support Bearing)[08.1988 - 08.1997] LN85,90,YN85,90..JPP |
90201-28005 |
US $3.49 |
||
|
37230F
|
37230F
90119-10049 Bolt, Center Support Bearing Bracket[08.1988 -] LN85,90,YN85,90..JPP |
90119-10049 |
from US $1.50 |
||
|
37304
|
37304
37304-35051 Flange Sub-Assy, Universal Joint[08.1988 - 08.1997] LN85,90,YN85,90..JPP |
37304-35051 |
US $53.14 |
||
|
37315
|
37315
37315-35050 Yoke, Universal Joint Flange[08.1988 - 08.1997] LN85,90,YN85,90..JPP |
37315-35050 |
US $53.14 |
||
|
37331
|
37331
37331-30010 Cover, Sliding Shaft Dust[08.1988 - 08.1997] LN85,90,YN85,90..JPP |
37331-30010 |
US $7.71 |
||
|
37342
|
37342
37342-30010 Deflector, Propeller Shaft Dust, No.2[08.1988 -] LN85,90,YN85,90..JPP |
37342-30010 |
US $6.84 |
||
|
37344
|
37344
37344-35021 Deflector, Propeller Shaft Dust, No.3[08.1988 -] LN85,90,YN85,90..JPP |
37344-35021 |
US $11.65 |
||
|
37401A
|
37401A
90521-29070 Ring, Hole Snap (For Spider Bearing)[08.1988 - 08.1997] LN85,90,YN85,90..JPP T=2.375-2.425 |
90521-29070 |
US $3.06 |
||
|
37401A
|
37401A
90521-29071 Ring, Hole Snap (For Spider Bearing)[08.1988 - 08.1997] LN85,90,YN85,90..JPP T=2.425-2.475 |
90521-29071 |
US $3.06 |
||
|
37401A
|
37401A
90521-29072 Ring, Hole Snap (For Spider Bearing)[08.1988 - 08.1997] LN85,90,YN85,90..JPP T=2.475-2.525 |
90521-29072 |
US $3.06 |
||
|
37402
|
37402
37402-25010 Bearing Sub-Assy, Universal Joint Spider[08.1991 - 08.1997] LN85,90,YN85,90..JPP |
37402-25010 |
US $12.23 |
||
|
37402
|
37402
37402-25020 Bearing Sub-Assy, Universal Joint Spider[08.1991 - 08.1997] LN85,90,YN85,90..JPP RED PAINTED |
37402-25020 |
US $10.47 |
||
