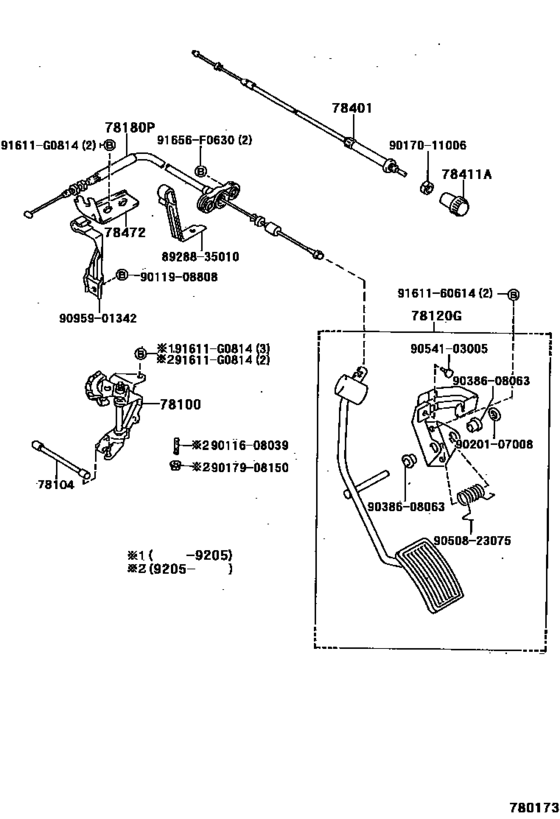

Accelerator Link ([01.1989 - ] (8901- )LN85..VWP..RHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- LN85
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 10.1992
- To
- 02.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100
|
78100
78100-22101
Link Assy, Accelerator
[02.1989 - 05.1993] LN85..VWP |
78100-22101 |
— | ||
| replacement | |||||
|
78100
|
78100
78100-35071 Link Assy, Accelerator[02.1989 - 05.1993] LN85..VWP |
78100-35071 |
from US $59.94 |
||
|
78100
|
78100
78100-35071 Link Assy, Accelerator[05.1993 - 02.1997] LN85..VWP |
78100-35071 |
from US $59.94 |
||
|
78120G
|
78120G
78120-89146 Rod Assy, Accelerator Pedal[10.1992 - 02.1997] LN85..VWP..RHD |
78120-89146 |
US $56.49 |
||
|
78180P
|
78180P
78180-89150
Cable Assy, Accelerator Control
[10.1992 - 02.1997] LN85..VWP..RHD |
78180-89150 |
— | ||
|
78401
|
78401
78401-89113 Cable Sub-Assy, Throttle Control[10.1992 - 02.1997] LN85..VWP..RHD |
78401-89113 |
US $35.45 |
||
|
78411A
|
78411A
78411-89105 Knob, Throttle Control Cable[10.1992 - 02.1997] LN85..VWP..RHD |
78411-89105 |
US $3.05 |
||
|
78472
|
78472
78472-35010
Support, Throttle Control Cable
[01.1989 - 02.1997] LN85..VWP |
78472-35010 |
— | ||
|
91611G0814
|
91611G0814
91611-G0814
Bolt(For Oil Receiver Pipe)
|
91611-G0814 |
— | ||
| replacement | |||||
|
91611G0814
|
91611G0814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
91656F0630
|
91656F0630
91656-F0630 New Genuine Part |
91656-F0630 |
US $1.60 |
||
| replacement | |||||
|
91656F0630
|
91656F0630
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
8928835010
|
8928835010
89288-35010
New Genuine Part
|
89288-35010 |
— | ||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $2.18 |
||
|
9011908808
|
9011908808
90119-08808 New Genuine Part |
90119-08808 |
US $1.09 |
||
|
9017011006
|
9017011006
90170-11006 Nut, Throttle |
90170-11006 |
US $1.79 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9020107008
|
9020107008
90201-07008 New Genuine Part |
90201-07008 |
US $0.70 |
||
|
9038608063
|
9038608063
90386-08063
Bush (For Accelerator Pedal Rod)
|
90386-08063 |
— | ||
|
9050823075
|
9050823075
90508-23075
Spring (For Accelerator Pedal Rod)
|
90508-23075 |
— | ||
|
9054103005
|
9054103005
90541-03005 Cushion, Glove Compartment Door Check |
90541-03005 |
from US $3.58 |
||
|
9095901342
|
9095901342
90959-01342
Clamp, Accelerator Control Cable
|
90959-01342 |
— | ||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
