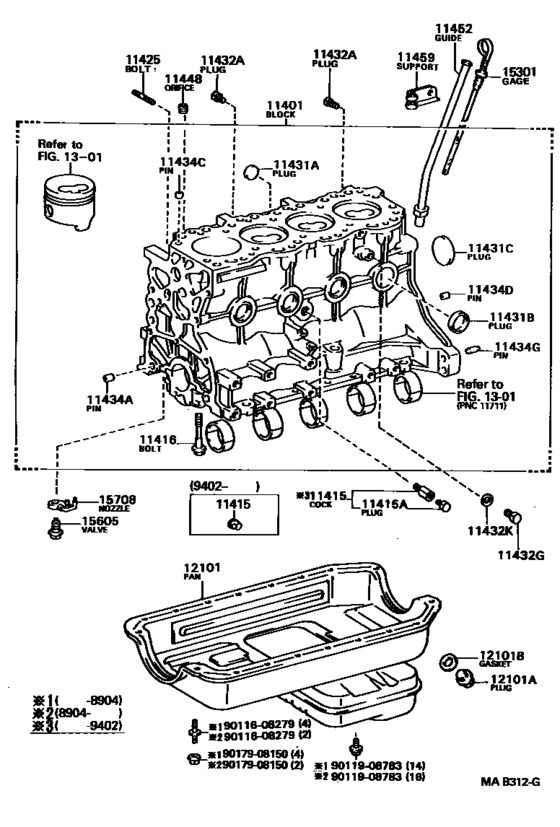

Cylinder Block ([08.1988 - 03.1998] (8808-9803)2L,3L) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1997 - 2001
- Sales region
- U.S.A.
- Frame
- LN86
- grade
- DLX
- ENGINE
- 3L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX 2WD
- From
- 03.1997
- To
- 06.2001
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-59505 Block Sub-Assy, Cylinder[02.1991 - 06.2001] 3L..LN81,86,91 |
11401-59505 |
US $4,193.28 |
||
|
11415
|
11415
90345-53030 Cock Sub-Assy, Water Drain(For Cylinder Block)[02.1994 - 03.1998] 2L,3L..LN8#,9# |
90345-53030 |
US $8.21 |
||
|
11415
|
11415
90910-09110 Cock Sub-Assy, Water Drain(For Cylinder Block)[03.1998 - 06.2001] 2L,3L..LN8#,9# |
90910-09110 |
US $11.36 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[03.1998 - 06.2001] 2L,3L..LN8#,9# |
90910-09087 |
from US $3.02 |
||
|
11416
|
11416
90910-02061 Bolt(For Cylinder Head Set)[08.1988 - 06.2001] 2L,3L..LN8#,9# |
90910-02061 |
US $4.12 |
||
|
11425
|
11425
92112-60825 Bolt, Stud(For Oil Filter)[11.1995 - 05.1997] 2L,3L..LN8#,9# |
92112-60825 |
US $2.87 |
||
|
11425
|
11425
92112-80825 Bolt, Stud(For Oil Filter)[05.1997 - 06.2001] 2L,3L..LN8#,9# |
92112-80825 |
US $2.87 |
||
|
11431A
|
11431A
96411-42500 Plug, Tight, No.1[08.1988 - 06.2001] 2L,3L..LN8#,9# |
96411-42500 |
from US $2.95 |
||
|
11431B
|
11431B
96411-43500 Plug, Tight, No.1[08.1988 - 06.2001] 2L,3L..LN8#,9# |
96411-43500 |
from US $3.59 |
||
|
11431C
|
11431C
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1988 - 06.2001] 2L,3L..LN8#,9# |
96411-45000 |
from US $3.72 |
||
|
11432A
|
11432A
90345-51006 Plug, W/head Taper Screw, No.2[08.1991 - 03.1999] 2L,3L..LN8#,9# |
90345-51006 |
from US $0.87 |
||
|
11432G
|
11432G
90341-12006 Plug(For Water Outlet)[01.1997 - 11.1999] 2L..LN85..LHD..TH;2L,3L..LN8#..ARL,GEN,V |
90341-12006 |
US $4.54 |
||
|
11432K
|
11432K
90430-12221 Gasket[01.1997 - 11.1999] 2L..LN85..LHD..TH;2L,3L..LN8#..ARL,GEN,V |
90430-12221 |
from US $1.07 |
||
|
11434A
|
11434A
90253-11021 Pin, Ring[12.1990 - 06.2001] 2L,3L..LN8#,9# L=8,OD=11 |
90253-11021 |
from US $1.44 |
||
|
11434C
|
11434C
90253-15005 Pin, Ring(For Crankshaft Bearing Cap Set)[08.1988 - 06.2001] 2L,3L..LN8#,9# L=7,OD=14.5 |
90253-15005 |
from US $1.56 |
||
|
11434D
|
11434D
90253-11021 Pin, Ring[12.1990 - 06.2001] 2L,3L..LN8#,9# L=8,OD=11 |
90253-11021 |
from US $1.44 |
||
|
11434G
|
11434G
90250-10113 Pin, Straight(For Timing Gear Cover Set)[02.1995 - 06.2001] 2L,3L..LN8#,9# |
90250-10113 |
from US $1.17 |
||
|
11448
|
11448
11448-54020 Orifice, Cylinder Block Oil[08.1992 - 06.2001] 3L..LN91;2L,3L..LN8#..ARL,GEN,V |
11448-54020 |
US $3.32 |
||
|
11452
|
11452
11452-54090 Guide, Oil Level Gage[08.1988 - 06.2001] 2L,3L..LN8#,9# |
11452-54090 |
from US $6.30 |
||
|
11459
|
11459
90929-01203 Support, Oil Level Gage Guide[08.1988 - 06.2001] 2L,3L..LN8#,9# |
90929-01203 |
US $5.42 |
||
|
12101
|
12101
12101-54112 Pan Sub-Assy, Oil[05.1990 - 08.1998] 2L,3L..LN8#,9# |
12101-54112 |
US $455.73 |
||
| replacements | |||||
|
12101
|
12101
12101-54184
Pan Sub-Assy, Oil
[05.1990 - 08.1998] 2L,3L..LN8#,9# |
12101-54184 |
— | ||
|
12101
|
12101
12129-54010 Plug, Oil Pan[05.1990 - 08.1998] 2L,3L..LN8#,9# |
12129-54010 |
from US $12.75 |
||
|
12101
|
12101
91651-60614 Bolt[05.1990 - 08.1998] 2L,3L..LN8#,9# |
91651-60614 |
from US $1.19 |
||
|
12101
|
12101
12101-54113 Pan Sub-Assy, Oil[08.1998 - 05.2001] 2L,3L..LN8# |
12101-54113 |
US $451.36 |
||
| replacements | |||||
|
12101
|
12101
12101-54184
Pan Sub-Assy, Oil
[08.1998 - 05.2001] 2L,3L..LN8# |
12101-54184 |
— | ||
|
12101
|
12101
12129-54010 Plug, Oil Pan[08.1998 - 05.2001] 2L,3L..LN8# |
12129-54010 |
from US $12.75 |
||
|
12101
|
12101
91651-60614 Bolt[08.1998 - 05.2001] 2L,3L..LN8# |
91651-60614 |
from US $1.19 |
||
|
12101
|
12101
12101-54114 Pan Sub-Assy, Oil[05.2001 - 06.2001] 3L..LN86 |
12101-54114 |
US $452.82 |
||
| replacements | |||||
|
12101
|
12101
12101-54184
Pan Sub-Assy, Oil
[05.2001 - 06.2001] 3L..LN86 |
12101-54184 |
— | ||
|
12101
|
12101
12129-54010 Plug, Oil Pan[05.2001 - 06.2001] 3L..LN86 |
12129-54010 |
from US $12.75 |
||
|
12101
|
12101
91651-60614 Bolt[05.2001 - 06.2001] 3L..LN86 |
91651-60614 |
from US $1.19 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[05.1990 - 06.2001] 2L,3L..LN8#,9# |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[05.1990 - 06.2001] 2L,3L..LN8#,9# |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[09.1993 - 06.2001] 2L,3L..LN8#,9# |
90430-12031 |
from US $0.84 |
||
|
15301
|
15301
15301-54080 Gage Sub-Assy, Oil Level[08.1988 - 06.2001] 2L,3L..LN8#,9# |
15301-54080 |
from US $7.98 |
||
|
15605
|
15605
15605-54010 Valve Sub-Assy, Oil Check[08.1988 - 06.2001] 2L,3L..LN8#,9# |
15605-54010 |
from US $9.36 |
||
|
15708
|
15708
15708-54060 Nozzle Sub-Assy, Oil, No.1[08.1989 - 06.2001] 2L,3L..LN8#,9# |
15708-54060 |
from US $10.57 |
||
|
9011608279
|
9011608279
90116-08279 BOLT STUD |
90116-08279 |
from US $1.29 |
||
|
9011908783
|
9011908783
90119-08783 BOLT WWASHER |
90119-08783 |
from US $1.08 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
