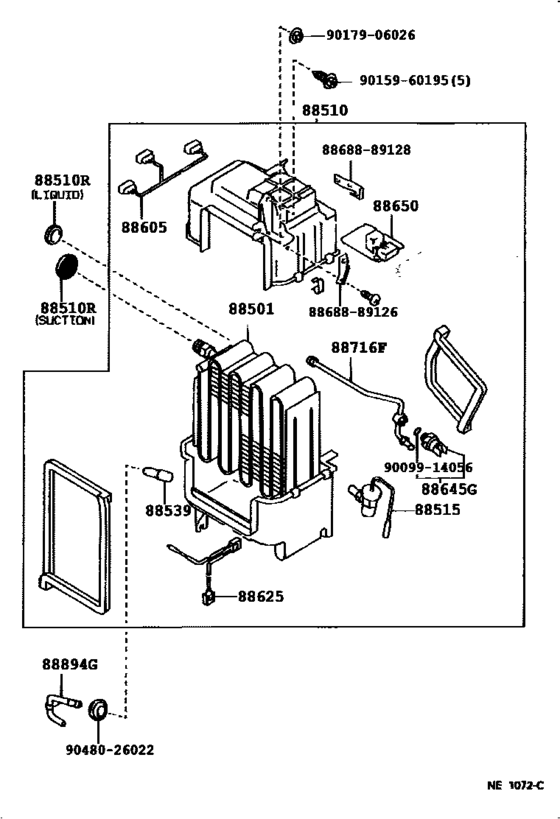

Heating & Air Conditioning - Cooler Unit ([08.1988 - ] MAKER OPTION (8808- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1992 - 1995
- Sales region
- U.S.A.
- Frame
- RN101
- grade
- DLX
- ENGINE
- 22RE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- RCB
- Model
- 4RUNNER TRUCK
- From
- 02.1992
- To
- 01.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- 4RUNNER
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-04010
Evaporator Sub-Assy, Cooler, No.1
[02.1992 - 01.1994] RN101,110,VZN100,110 |
88501-04010 |
— | ||
|
88501
|
88501
88501-04020
Evaporator Sub-Assy, Cooler, No.1
[01.1994 - 01.1995] RN101,110,VZN100,110 |
88501-04020 |
— | ||
|
88510
|
88510
88510-04020
Unit Assy, Cooler
[02.1992 - 01.1994] RN101,110 |
88510-04020 |
— | ||
|
88510
|
88510
88510-04070
Unit Assy, Cooler
[01.1994 - 01.1995] RN101,110 |
88510-04070 |
— | ||
|
88510R
|
88510R
90480-26003 Grommet (For Cooler Unit)[02.1992 - 01.1995] RN101,110,VZN100,110 LIQUID |
90480-26003 |
US $2.80 |
||
|
88510R
|
88510R
90480-36003 Grommet (For Cooler Unit)[02.1992 - 01.1995] RN101,110,VZN100,110 SUCTION |
90480-36003 |
US $2.97 |
||
|
88515
|
88515
88515-03010
Valve, Cooler Expansion
[02.1992 - 01.1994] RN101,110,VZN100,110 |
88515-03010 |
— | ||
|
88515
|
88515
88515-04020
Valve, Cooler Expansion
[01.1994 - 01.1995] RN101,110,VZN100,110 |
88515-04020 |
— | ||
|
88539
|
88539
88539-04010
Hose, Cooler Unit Drain, No.1
[02.1992 - 01.1995] RN101,110,VZN100,110 |
88539-04010 |
— | ||
|
88605
|
88605
88605-04010
Harness Sub-Assy, Cooler Wiring, No.1
[02.1992 - 01.1995] RN101,110 |
88605-04010 |
— | ||
|
88625
|
88625
88625-04010
Thermistor, Cooler, No.1
[02.1992 - 01.1995] RN101,110,VZN100,110 |
88625-04010 |
— | ||
|
88645G
|
88645G
88645-04010
Switch, Pressure
[02.1992 - 01.1994] RN101,110 |
88645-04010 |
— | ||
|
88645G
|
88645G
88645-04040 Switch, Pressure[01.1994 - 01.1995] RN101,110,VZN100,110 |
88645-04040 |
US $120.41 |
||
|
88650
|
88650
88650-89106
Amplifier Assy, Cooler Stabilizer
[02.1992 - 01.1995] RN101,110 |
88650-89106 |
— | ||
|
88716F
|
88716F
88716-04010
Pipe, Cooler Refrigerant Liquid, F
[02.1992 - 01.1994] RN101,110,VZN100,110 |
88716-04010 |
— | ||
|
88716F
|
88716F
88716-04060
Pipe, Cooler Refrigerant Liquid, F
[01.1994 - 01.1995] RN101,110,VZN100,110 |
88716-04060 |
— | ||
|
88894G
|
88894G
88894-04010
Connector, Drain Hose
[02.1992 - 01.1995] RN101,110,VZN100,110 MAKER OPTION |
88894-04010 |
— | ||
|
88894G
|
88894G
88894-04020
Connector, Drain Hose
[02.1992 - 01.1995] RN101,110,VZN100,110 DEALER OPTION |
88894-04020 |
— | ||
|
8868889126
|
8868889126
88688-89126
Bracket, Cooler Diaphragm
|
88688-89126 |
— | ||
|
8868889128
|
8868889128
88688-89128
Bracket, Cooler Diaphragm
|
88688-89128 |
— | ||
|
9009914056
|
9009914056
90099-14056
New Genuine Part
|
90099-14056 |
— | ||
|
9015960195
|
9015960195
90159-60195 New Genuine Part |
90159-60195 |
US $0.52 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
