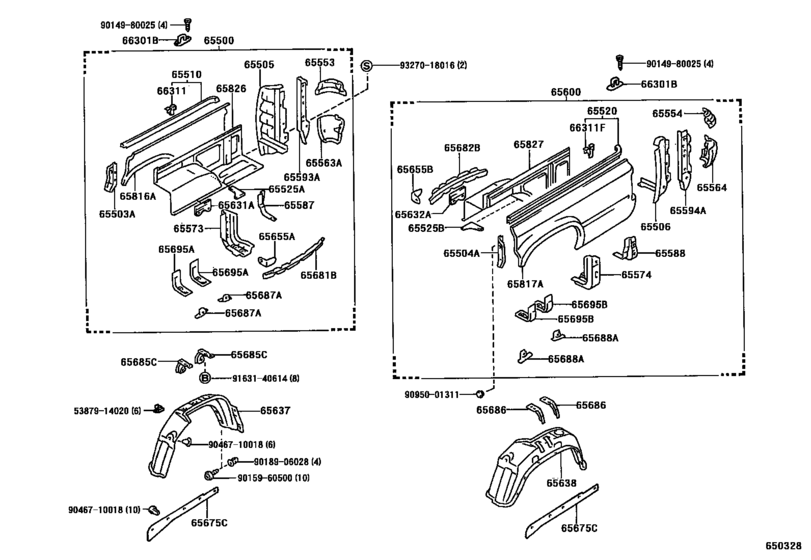

Rear Body Side Panel ([08.1988 - ] (8808- )TW1..ARL) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1989 - 1991
- Sales region
- General
- Frame
- RN105
- grade
- SR5
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HILUX
- From
- 08.1989
- To
- 08.1991
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65500
|
65500
65500-35050 Panel Assy, Rear Body Side, Rh[08.1990 - 01.1996] LN106,RN105..TW1..ARL |
65500-35050 |
US $898.35 |
||
| replacements | |||||
|
65500
|
65500
65500-35430
Panel Assy, Rear Body Side, Rh
[08.1990 - 01.1996] LN106,RN105..TW1..ARL |
65500-35430 |
— | ||
|
65500
|
65500
65681-89104
Bracket, Wheel House Seal, Side, Rh
[08.1990 - 01.1996] LN106,RN105..TW1..ARL |
65681-89104 |
— | ||
|
65500
|
65500
65500-89363 Panel Assy, Rear Body Side, Rh[08.1988 - 08.1990] LN106,RN105..TW1..ARL |
65500-89363 |
US $904.18 |
||
| replacements | |||||
|
65500
|
65500
65500-89360 Panel Assy, Rear Body Side, Rh[08.1988 - 08.1990] LN106,RN105..TW1..ARL |
65500-89360 |
US $990.08 |
||
|
65500
|
65500
65681-89104
Bracket, Wheel House Seal, Side, Rh
[08.1988 - 08.1990] LN106,RN105..TW1..ARL |
65681-89104 |
— | ||
|
65503A
|
65503A
65551-89116 Post Sub-Assy, Side Panel Front End, Rh[08.1988 - 06.2001] RN106..STD;LN107..TW1..GEN;LN106,RN105,YN106..TW1..CBU |
65551-89116 |
US $52.27 |
||
|
65504A
|
65504A
65552-89116 Post Sub-Assy, Side Panel Front End, Lh[08.1988 - 06.2001] RN106..STD;LN107..TW1..GEN;LN106,RN105,YN106..TW1..CBU |
65552-89116 |
US $52.27 |
||
|
65505
|
65505
65505-89111 Post Sub-Assy, Side Panel Rear End, RhSIDE PANEL REAR END, RH [08.1988 - 06.2001] LN107..GEN;LN106,RN105..ARL..CBU |
65505-89111 |
US $208.21 |
||
|
65506
|
65506
65506-89111 Post Sub-Assy, Side Panel Rear End, LhSIDE PANEL REAR END, LH [08.1988 - 06.2001] LN107..GEN;LN106,RN105..ARL..CBU |
65506-89111 |
US $208.21 |
||
|
65510
|
65510
65510-89146 Rail Assy, Side Panel Top, Rh[08.1988 - 06.2001] RN106..STD;LN107..TW1..GEN;LN106,RN105,YN106..TW1..CBU |
65510-89146 |
US $196.56 |
||
|
65520
|
65520
65520-89146 Rail Assy, Side Panel Top, Lh[08.1988 - 06.2001] RN106..STD;LN107..TW1..GEN;LN106,RN105,YN106..TW1..CBU |
65520-89146 |
US $196.56 |
||
|
65525A
|
65525A
65525-89101 Plate, Side Panel Frame, No.1[08.1988 - 06.2001] LN10#,RN10#,YN106..TW1..CBU |
65525-89101 |
US $9.90 |
||
|
65525B
|
65525B
65525-89101 Plate, Side Panel Frame, No.1[08.1988 - 06.2001] LN10#,RN10#,YN106..TW1..CBU |
65525-89101 |
US $9.90 |
||
|
65553
|
65553
65553-89110
Plate, Side Panel Rear End Post, Upper Rh
[08.1988 - 06.2001] LN107..GEN;LN106,RN105..ARL..CBU |
65553-89110 |
— | ||
|
65554
|
65554
65554-89110 Plate, Side Panel Rear End Post, Upper Lh[08.1988 - 06.2001] LN107..GEN;LN106,RN105..ARL..CBU |
65554-89110 |
US $17.41 |
||
|
65563A
|
65563A
65563-89105
Plate, Side Panel Rear End Post, Lower Rh
[08.1988 - 08.1990] LN106,RN105,YN106..CBU |
65563-89105 |
— | ||
|
65564
|
65564
65564-89104
Plate, Side Panel Rear End Post, Lower Lh
[08.1988 - 08.1990] LN106,RN105,YN106..CBU |
65564-89104 |
— | ||
|
65573
|
65573
65573-89101
Frame, Side Panel, Rear Rh
[08.1988 - 06.2001] LN107..GEN;RN106..STD;LN106,111,RN105,110,YN106..CBU |
65573-89101 |
— | ||
|
65574
|
65574
65574-89101
Frame, Side Panel, Rear Lh
[08.1988 - 06.2001] LN107..GEN;RN106..STD;LN106,111,RN105,110,YN106..CBU |
65574-89101 |
— | ||
|
65587
|
65587
65587-89101 Frame, Side Panel, B Rr Rh[08.1988 - 06.2001] LN10#,111,RN10#,110,YN106..CBU |
65587-89101 |
US $35.53 |
||
|
65588
|
65588
65588-89101 Frame, Side Panel, B Rr Lh[08.1988 - 06.2001] LN10#,111,RN10#,110,YN106..CBU |
65588-89101 |
US $35.53 |
||
|
65593A
|
65593A
65593-89102 Plate, Side Panel Rear End Post Inside, Rh[08.1988 - 06.2001] LN107..GEN;LN106,RN105..ARL..CBU |
65593-89102 |
US $29.27 |
||
|
65594A
|
65594A
65594-89102 Plate, Side Panel Rear End Post Inside, Lh[08.1988 - 06.2001] LN107..GEN;LN106,RN105..ARL..CBU |
65594-89102 |
US $29.27 |
||
|
65600
|
65600
65600-35040 Panel Assy, Rear Body Side, Lh[08.1990 - 01.1996] LN106,RN105..TW1..ARL |
65600-35040 |
US $898.35 |
||
| replacements | |||||
|
65600
|
65600
65600-35350
Panel Assy, Rear Body Side, Lh
[08.1990 - 01.1996] LN106,RN105..TW1..ARL |
65600-35350 |
— | ||
|
65600
|
65600
65682-89104
Bracket, Wheel House Seal, Side, Lh
[08.1990 - 01.1996] LN106,RN105..TW1..ARL |
65682-89104 |
— | ||
|
65600
|
65600
65600-89306 Panel Assy, Rear Body Side, Lh[08.1988 - 08.1990] LN106,RN105..TW1..ARL |
65600-89306 |
US $904.18 |
||
| replacements | |||||
|
65600
|
65600
65600-89303 Panel Assy, Rear Body Side, Lh[08.1988 - 08.1990] LN106,RN105..TW1..ARL |
65600-89303 |
US $990.08 |
||
|
65600
|
65600
65682-89104
Bracket, Wheel House Seal, Side, Lh
[08.1988 - 08.1990] LN106,RN105..TW1..ARL |
65682-89104 |
— | ||
|
65631A
|
65631A
65631-89113
Plate, Rear Wheel House, Front Rh
[08.1988 - 06.2001] LN10#,RN10#,YN106..TW1..CBU |
65631-89113 |
— | ||
|
65632A
|
65632A
65632-89112
Plate, Rear Wheel House, Front Lh
[08.1988 - 06.2001] LN10#,RN10#,YN106..TW1..CBU |
65632-89112 |
— | ||
|
65637
|
65637
65637-89103 Liner, Rear Wheel House, Rh[08.1988 - 06.2001] LN10#,RN10#,YN106..TW1..CBU |
65637-89103 |
from US $101.34 |
||
|
65638
|
65638
65638-89103
Liner, Rear Wheel House, Lh
[08.1988 - 06.2001] LN10#,RN10#,YN106..TW1..CBU |
65638-89103 |
— | ||
|
65675C
|
65675C
65675-89111
Seal, Wheel House
[08.1988 - 05.1994] LN10#,111,RN10#,110,YN106..CBU |
65675-89111 |
— | ||
|
65681B
|
65681B
65681-89104
Bracket, Wheel House Seal, Side, Rh
[08.1988 - 01.1996] LN10#,111,RN10#,110,YN106..CBU |
65681-89104 |
— | ||
|
65682B
|
65682B
65682-89104
Bracket, Wheel House Seal, Side, Lh
[08.1988 - 01.1996] LN10#,111,RN10#,110,YN106..CBU |
65682-89104 |
— | ||
|
65685C
|
65685C
65685-89101
Brace, Wheel House, Rh
[08.1988 - 06.2001] LN10#,111,RN10#,110,YN106..CBU |
65685-89101 |
— | ||
|
65686
|
65686
65686-89101
Brace, Wheel House, Lh
[08.1988 - 06.2001] LN10#,111,RN10#,110,YN106..CBU |
65686-89101 |
— | ||
|
65687A
|
65687A
65687-89101
Bracket, Wheel House Brace, Rh
[08.1988 - 06.2001] LN10#,111,RN10#,110,YN106..CBU |
65687-89101 |
— | ||
|
65688A
|
65688A
65688-89101
Bracket, Wheel House Brace, Lh
[08.1988 - 06.2001] LN10#,111,RN10#,110,YN106..CBU |
65688-89101 |
— | ||
|
65695A
|
65695A
65695-89102
Bracket, Wheel House Brace, No.2
[08.1988 - 06.2001] LN10#,111,RN10#,110,YN106..CBU |
65695-89102 |
— | ||
|
65695B
|
65695B
65695-89102
Bracket, Wheel House Brace, No.2
[08.1988 - 08.1991] LN106,RN105,YN106..TW1..CBU |
65695-89102 |
— | ||
|
65816A
|
65816A
65816-89141
Panel, Rear Body Side, Rh
[08.1988 - 06.2001] RN106..STD;LN107..TW1..GEN;LN106,RN105,YN106..TW1..CBU |
65816-89141 |
— | ||
|
65817A
|
65817A
65817-89139
Panel, Rear Body Side, Lh
[08.1988 - 06.2001] RN106..STD;LN107..TW1..GEN;LN106,RN105,YN106..TW1..CBU |
65817-89139 |
— | ||
|
65826
|
65826
65826-89116 Panel, Rear Body Side, Inner Rh[08.1988 - 06.2001] RN106..STD;LN107..TW1..GEN;LN106,RN105,YN106..TW1..CBU |
65826-89116 |
US $286.83 |
||
|
65827
|
65827
65827-89116 Panel, Rear Body Side, Inner Lh[08.1988 - 06.2001] RN106..STD;LN107..TW1..GEN;LN106,RN105,YN106..TW1..CBU |
65827-89116 |
US $286.83 |
||
|
66301B
|
66301B
66301-89102
Hook Sub-Assy, Rope
[08.1988 - 08.1992] LN106,RN105..ARL..CBU |
66301-89102 |
— | ||
|
66311
|
66311
66311-89109 Hook, Rope[08.1988 - 06.2001] RN106..STD;LN107..TW1..GEN;LN106,RN105,YN106..TW1..CBU |
66311-89109 |
from US $12.52 |
||
|
66311F
|
66311F
66311-89109 Hook, Rope[08.1988 - 06.2001] RN106..STD;LN107..TW1..GEN;LN106,RN105,YN106..TW1..CBU |
66311-89109 |
from US $12.52 |
||
|
5387914020
|
5387914020
53879-14020 Retainer, Front Fender Liner |
53879-14020 |
from US $2.42 |
||
|
9014980025
|
9014980025
90149-80025
New Genuine Part
|
90149-80025 |
— | ||
| replacement | |||||
|
9014980025
|
9014980025
90149-80034 SCREW |
90149-80034 |
from US $0.16 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.70 |
||
|
9018906028
|
9018906028
90189-06028 CLIP |
90189-06028 |
from US $0.76 |
||
|
9046710018
|
9046710018
90467-10018 Clip, Radiator Support To Frame |
90467-10018 |
from US $1.23 |
||
|
9095001311
|
9095001311
90950-01311 PLUG |
90950-01311 |
US $0.96 |
||
|
9163140614
|
9163140614
91631-40614 БОЛТ BOLT |
91631-40614 |
US $1.43 |
||
|
9327018016
|
9327018016
93270-18016
SCREW
|
93270-18016 |
— | ||
| replacement | |||||
|
9327018016
|
9327018016
93240-18016 SCREW |
93240-18016 |
US $1.93 |
||
