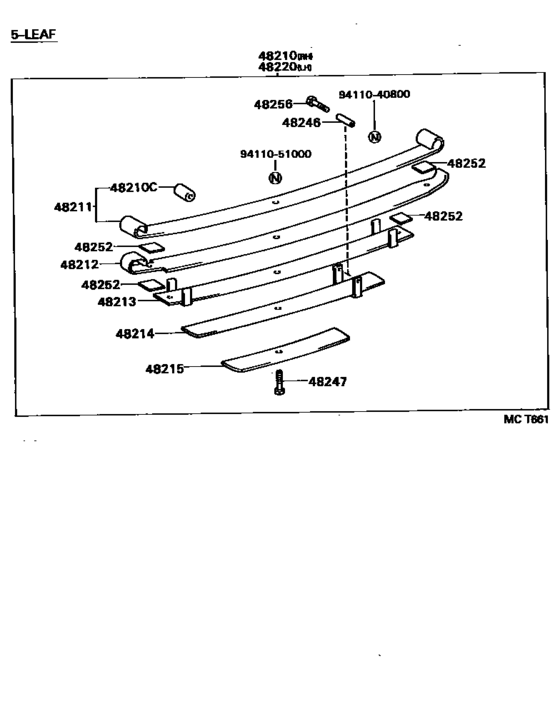

Rear Spring & Shock Absorber ([08.1988 - ] (8808- )LN107,RN106) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1991 - 1997
- Sales region
- General
- Frame
- RN106
- grade
- SR5
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HILUX
- From
- 08.1991
- To
- 08.1997
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-35830 Spring Assy, Rear Rh[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL 5-LEAF |
48210-35830 |
US $767.31 |
||
| replacement | |||||
|
48210
|
48210
48210-3D180 Spring Assy, Rear Rh[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL 5-LEAF |
48210-3D180 |
from US $669.86 |
||
|
48210C
|
48210C
90389-14004 Bush(For Rear Spring Leaf)[08.1988 - 06.2001] LN107,111,135,RN106,110,135,YN135 |
90389-14004 |
from US $15.88 |
||
|
48211
|
48211
48201-35830 Leaf, Rear Spring, No.1[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL |
48201-35830 |
US $208.21 |
||
| replacement | |||||
|
48211
|
48211
48201-3D180 Leaf, Rear Spring, No.1[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL |
48201-3D180 |
US $208.21 |
||
|
48212
|
48212
48212-35830
Leaf, Rear Spring, No.2
[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL |
48212-35830 |
— | ||
| replacement | |||||
|
48212
|
48212
48212-3D180 Leaf, Rear Spring, No.2[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL |
48212-3D180 |
US $174.72 |
||
|
48213
|
48213
48202-35830 Leaf, Rear Spring, No.3[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL |
48202-35830 |
US $151.42 |
||
| replacement | |||||
|
48213
|
48213
48202-3D180 Leaf, Rear Spring, No.3[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL |
48202-3D180 |
US $152.88 |
||
|
48214
|
48214
48203-35830 Leaf, Rear Spring, No.4[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL |
48203-35830 |
US $174.72 |
||
| replacement | |||||
|
48214
|
48214
48203-3D111 Leaf, Rear Spring, No.4[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL |
48203-3D111 |
US $173.26 |
||
|
48215
|
48215
48215-35830 Leaf, Rear Spring, No.5[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL |
48215-35830 |
US $69.01 |
||
| replacement | |||||
|
48215
|
48215
48215-3D111 Leaf, Rear Spring, No.5[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL |
48215-3D111 |
US $68.72 |
||
|
48220
|
48220
48210-35830 Spring Assy, Rear Rh[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL 5-LEAF |
48210-35830 |
US $767.31 |
||
| replacement | |||||
|
48220
|
48220
48210-3D180 Spring Assy, Rear Rh[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL 5-LEAF |
48210-3D180 |
from US $669.86 |
||
|
48246
|
48246
48246-26020 Case, Rear Spring Clip Bolt[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL |
48246-26020 |
US $2.15 |
||
|
48247
|
48247
48247-36450 Bolt, Rear Spring, Center[08.1991 - 06.2001] RN106;LN107..T1;LN107..ARL |
48247-36450 |
US $3.58 |
||
|
48252
|
48252
48252-26070 Silencer, Front Spring[08.1988 - 06.2001] LN10#,111,135,RN10#,110,135,YN106,135 |
48252-26070 |
from US $2.13 |
||
|
48256
|
48256
48256-26070
Bolt, Hexagon(For Rear Spring Clip Set)
[08.1991 - 11.1995] LN107,RN106 |
48256-26070 |
— | ||
|
48256
|
48256
48256-36570 Bolt, Front Spring Clip[11.1995 - 06.2001] RN106;LN107..T1;LN107..ARL |
48256-36570 |
US $2.51 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.76 |
||
