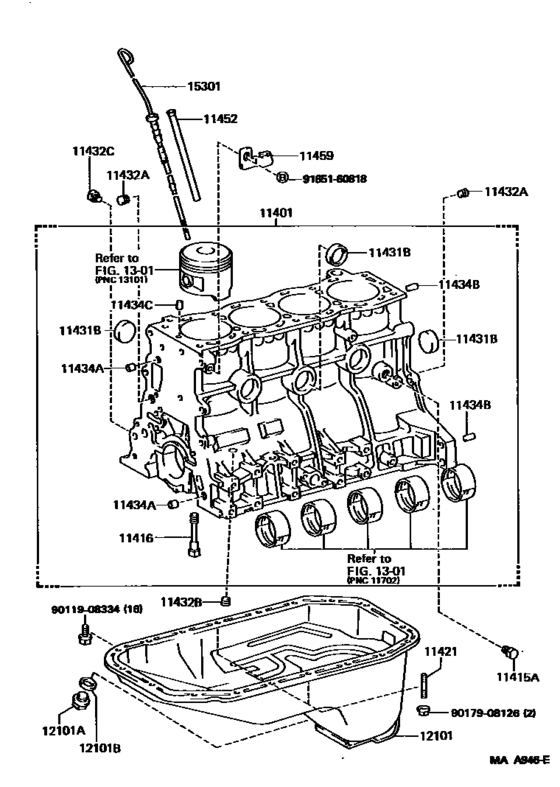

Cylinder Block ([08.1988 - 04.1997] (8808-9704)22RE..JPP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1988 - 1997
- Sales region
- Europe
- Frame
- RN110
- grade
- DLX
- ENGINE
- 22RE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- HILUX
- From
- 08.1988
- To
- 08.1997
- Body
- XTR
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (JPP)
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-39495 Block Sub-Assy, CylinderCYLINDER [08.1988 -] 22RE..RN106,110..JPP |
11401-39495 |
US $3,450.72 |
||
|
11415A
|
11415A
90345-53007 Plug, W/head Taper Screw, No.1[08.1988 - 04.1997] 22RE..RN106,110..JPP |
90345-53007 |
from US $3.53 |
||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[04.1997 -] 22RE..RN106,110..JPP |
96432-23814 |
— | ||
|
11416
|
11416
90910-02042 Bolt(For Crankshaft Bearing Cap Set)[08.1988 -] 22RE..RN106,110..JPP |
90910-02042 |
US $4.48 |
||
|
11421
|
11421
92122-40814 Bolt, Stud(For Oil Pan)[08.1988 -] 22RE..RN106,110..JPP |
92122-40814 |
US $2.04 |
||
|
11431B
|
11431B
96411-44000 Plug, Tight, No.1[08.1988 -] 22RE..RN106,110..JPP |
96411-44000 |
from US $4.02 |
||
|
11432A
|
11432A
90344-53002 Plug, W/head Taper Screw, No.1[08.1988 - 11.1989] 22RE..RN106,110..JPP RR |
90344-53002 |
US $2.18 |
||
|
11432A
|
11432A
90344-53008 Plug, W/head Taper Screw, No.2[08.1988 - 01.1995] 22RE..RN106,110..JPP FR |
90344-53008 |
US $1.97 |
||
|
11432A
|
11432A
90344-53011 Plug, W/head Taper Screw, No.1[11.1989 - 01.1995] 22RE..RN106,110..JPP RR |
90344-53011 |
US $4.30 |
||
|
11432B
|
11432B
90344-52003 Plug, W/head Taper Screw, No.1[08.1988 -] 22RE..RN106,110..JPP |
90344-52003 |
US $1.40 |
||
|
11432C
|
11432C
90345-51006 Plug, W/head Taper Screw, No.2[08.1988 -] 22RE..RN106,110..JPP |
90345-51006 |
from US $0.87 |
||
|
11434A
|
11434A
90253-11021 Pin, Ring[08.1988 -] 22RE..RN106,110..JPP L=8,OD=11 |
90253-11021 |
from US $1.44 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.1988 -] 22RE..RN106,110..JPP L=22,OD=10 |
90250-10113 |
from US $1.17 |
||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[08.1988 -] 22RE..RN106,110..JPP L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
11452
|
11452
11452-35010 Guide, Oil Level Gage[08.1988 -] 22RE..RN106,110..JPP |
11452-35010 |
US $18.35 |
||
|
11459
|
11459
11459-35010 Support, Oil Level Gage Guide[08.1988 -] 22RE..RN106,110..JPP |
11459-35010 |
US $13.45 |
||
|
12101
|
12101
12101-35040
Pan Sub-Assy, Oil
[08.1988 -] 22RE..RN106,110..JPP |
12101-35040 |
— | ||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.1988 - 03.1992] 22RE..RN106,110..JPP |
90341-12012 |
from US $2.87 |
||
|
12101A
|
12101A
90341-12026
Plug, Drain
[03.1992 -] 22RE..RN106,110..JPP |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[03.1992 -] 22RE..RN106,110..JPP |
90341-12012 |
from US $2.87 |
||
|
12101B
|
12101B
90430-12021
Gasket(For Oil Pan Drain Plug)
[08.1988 - 04.1990] 22RE..RN106,110..JPP |
90430-12021 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[08.1988 - 04.1990] 22RE..RN106,110..JPP |
90430-12028 |
from US $1.11 |
||
|
12101B
|
12101B
90430-12027
Gasket(For Oil Pan Drain Plug)
[04.1990 - 08.1991] 22RE..RN106,110..JPP |
90430-12027 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[04.1990 - 08.1991] 22RE..RN106,110..JPP |
90430-12031 |
from US $0.84 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[08.1991 -] 22RE..RN106,110..JPP |
90430-12031 |
from US $0.84 |
||
|
15301
|
15301
15301-35020 Gage Sub-Assy, Oil Level[08.1988 -] 22RE..RN106,110..JPP |
15301-35020 |
from US $14.77 |
||
|
9011908334
|
9011908334
90119-08334
New Genuine Part
|
90119-08334 |
— | ||
| replacement | |||||
|
9011908334
|
9011908334
90119-08378 New Genuine Part |
90119-08378 |
US $2.33 |
||
|
9017908126
|
9017908126
90179-08126 Nut |
90179-08126 |
US $2.33 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
||
