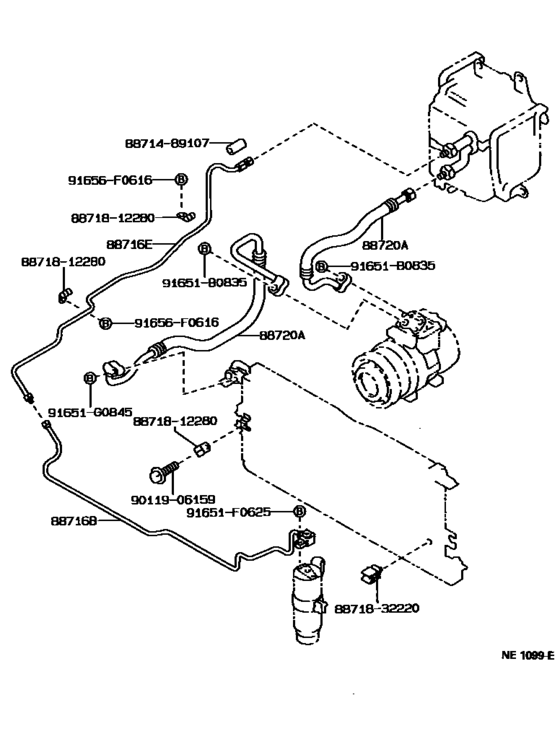

Heating & Air Conditioning - Cooler Piping ([08.1988 - 01.1994] HOSE & PIPE (8808-9401)RN8#,90..LHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1990 - 1997
- Sales region
- General
- Frame
- RN85
- grade
- SR5
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- V
- Model
- HILUX 2WD
- From
- 08.1990
- To
- 08.1997
- Body
- RCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88716B
|
88716B
88716-35240
Pipe, Cooler Refrigerant Liquid, B
[01.1994 - 06.2001] LN81,85,86,RN8#,90,YN8#,92..LHD |
88716-35240 |
— | ||
|
88716B
|
88716B
88716-89162 Pipe, Cooler Refrigerant Liquid, BCOOLER REFRIGERANT LIQUID, B [08.1988 - 01.1994] LN81,85,86,90,RN8#,90,YN8#,92..LHD |
88716-89162 |
US $94.64 |
||
|
88716E
|
88716E
88716-35250
Pipe, Cooler Refrigerant Liquid, E
[01.1994 - 09.1999] RN8#,90..LHD |
88716-35250 |
— | ||
|
88716E
|
88716E
88716-89173
Pipe, Cooler Refrigerant Liquid, E
[08.1988 - 04.1991] RN125,8#..V |
88716-89173 |
— | ||
|
88716E
|
88716E
88716-89181 Pipe, Cooler Refrigerant Liquid, ECOOLER REFRIGERANT LIQUID, E [04.1991 - 08.1991] RN125,8#..V |
88716-89181 |
US $97.55 |
||
|
88720A
|
88720A
88711-35290
Hose & Accessory, Air Conditioner
[01.1994 - 09.1999] RN85..TW1..V;RN8#,90..LHD..T1..CBR;RN85..LHD..TW1..STD..CBR MAKER OPTION,DISCHARGE SIDE |
88711-35290 |
— | ||
|
88720A
|
88720A
88712-35200 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [01.1994 - 09.1999] RN85..TW1..V;RN8#,90..LHD..T1;RN85..LHD..TW1..STD MAKER OPTION,SUCTION SIDE |
88712-35200 |
US $224.22 |
||
| replacement | |||||
|
88720A
|
88720A
88720-35230 Hose, Cooler Refrigerant Suction, No.1AIRCONDITIONER [01.1994 - 09.1999] RN85..TW1..V;RN8#,90..LHD..T1;RN85..LHD..TW1..STD MAKER OPTION,SUCTION SIDE |
88720-35230 |
US $237.33 |
||
|
88720A
|
88720A
88720-35010 Hose & Accessory, Air Conditioner[08.1991 - 01.1994] RN8#,90..LHD SUCTION |
88720-35010 |
US $177.63 |
||
|
88720A
|
88720A
88720-35090 Hose, Cooler Refrigerant Suction, No.1AIRCONDITIONER [08.1991 - 01.1994] RN8#,90..LHD DISCHARGE |
88720-35090 |
from US $192.54 |
||
|
88720A
|
88720A
88720-35230 Hose, Cooler Refrigerant Suction, No.1AIRCONDITIONER [01.1994 - 08.1994] RN8#,90..LHD..CBR SUCTION SIDE |
88720-35230 |
US $237.33 |
||
|
88720A
|
88720A
88720-35340 Hose & Accessory, Air ConditionerCOOLER REFRIGERANT DISCHARGE, NO.1 [01.1994 - 08.1994] RN8#,90..LHD..CBR DISCHARGE SIDE |
88720-35340 |
US $196.56 |
||
|
88720A
|
88720A
88720-89120 Hose & Accessory, Air ConditionerAIRCONDITIONER [08.1988 - 08.1991] RN8#..V DISCHARGE |
88720-89120 |
US $177.63 |
||
| replacement | |||||
|
88720A
|
88720A
88720-35010 Hose & Accessory, Air Conditioner[08.1988 - 08.1991] RN8#..V DISCHARGE |
88720-35010 |
US $177.63 |
||
|
88720A
|
88720A
88720-89122
Hose & Accessory, Air Conditioner
[08.1988 - 08.1991] RN125,8#..V SUCTION |
88720-89122 |
— | ||
| replacement | |||||
|
88720A
|
88720A
88720-35090 Hose, Cooler Refrigerant Suction, No.1AIRCONDITIONER [08.1988 - 08.1991] RN125,8#..V SUCTION |
88720-35090 |
from US $192.54 |
||
|
91651B0835
|
91651B0835
91651-B0835 BOLT |
91651-B0835 |
US $1.79 |
||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
91651G0845
|
91651G0845
91651-G0845 New Genuine Part |
91651-G0845 |
US $2.62 |
||
|
91656F0616
|
91656F0616
91656-F0616
New Genuine Part
|
91656-F0616 |
— | ||
| replacement | |||||
|
91656F0616
|
91656F0616
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
8871489107
|
8871489107
88714-89107
Hose, Cooler Refrigerant Liquid, No.1
|
88714-89107 |
— | ||
|
8871812280
|
8871812280
88718-12280
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-12280 |
— | ||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.46 |
||
|
9011906159
|
9011906159
90119-06159 BOLT |
90119-06159 |
US $1.25 |
||
