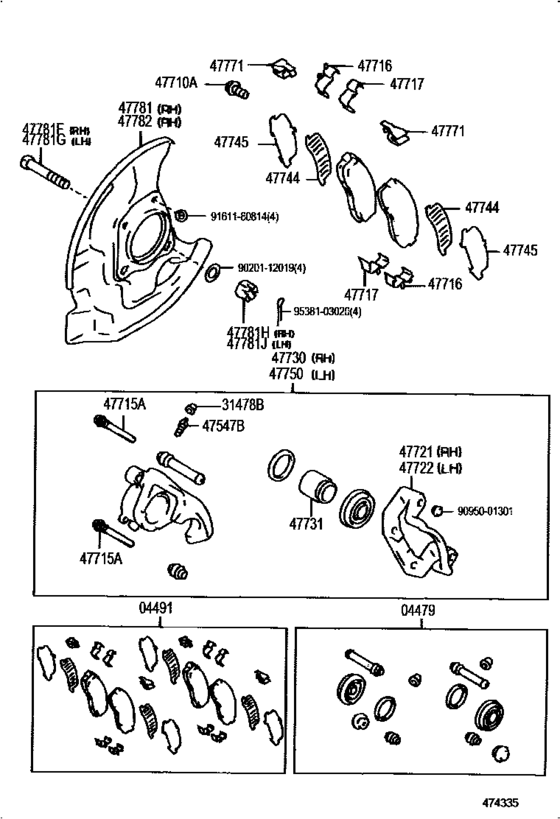

Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- )RN90..ARL) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1988 - 1997
- Sales region
- U.S.A.
- Frame
- RN90
- grade
- SR5
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HILUX 2WD
- From
- 08.1988
- To
- 08.1997
- Body
- XTR
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04479-22020 Cylinder Kit, Disc Brake, Front[08.1988 - 08.1997] RN90..ARL |
04479-22020 |
from US $35.82 |
||
|
04491
|
04491
04491-22280 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [08.1988 - 08.1991] RN90 |
04491-22280 |
US $155.79 |
||
| replacement | |||||
|
04491
|
04491
04465-22180 Pad Kit, Disc Brake, Front[08.1988 - 08.1991] RN90 |
04465-22180 |
US $155.79 |
||
|
04491
|
04491
04491-35230 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [08.1991 - 05.1995] RN90..ARL |
04491-35230 |
US $182 |
||
| replacement | |||||
|
04491
|
04491
04465-22090 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [08.1991 - 05.1995] RN90..ARL |
04465-22090 |
from US $93.09 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[08.1988 - 05.1999] LN8#,9#,RN125,8#,90,YN8#,9# |
31478-30010 |
from US $1.50 |
||
|
47547B
|
47547B
47547-35020 Plug, Bleeder(For Front Disc Brake)[08.1988 - 08.1997] RN90..ARL |
47547-35020 |
from US $3.94 |
||
|
47710A
|
47710A
90119-12058 Bolt, Hexagon(For Front Disc Brake Caliper)[08.1988 - 06.2001] LN8#,9#,RN8#,90,YN8#,9# *12-1.25PX31-20 |
90119-12058 |
from US $2.07 |
||
|
47715A
|
47715A
47715-22010 Pin, Main(For Front Disc Brake Cylinder Slide)[08.1988 - 08.1997] RN90..ARL |
47715-22010 |
from US $9.17 |
||
|
47716
|
47716
47716-35010 Plate, Pad Support, No.1(For Front Disc Brake)[08.1988 - 08.1997] RN90..ARL |
47716-35010 |
US $5.42 |
||
|
47717
|
47717
47717-35010 Plate, Pad Support, No.2(For Front Disc Brake)[08.1988 - 08.1997] RN90..ARL |
47717-35010 |
US $5.42 |
||
|
47721
|
47721
47721-04021
Mounting, Front Disc Brake Cylinder, Rh
[10.1992 - 08.1997] RN90..ARL (L) |
47721-04021 |
— | ||
|
47721
|
47721
47721-35020 Mounting, Front Disc Brake Cylinder, RhFRONT DISC BRAKE CYLINDER, RH [08.1988 - 08.1997] RN90..ARL (J) |
47721-35020 |
US $90.27 |
||
|
47722
|
47722
47722-04021
Mounting, Front Disc Brake Cylinder, Lh
[10.1992 - 08.1997] RN90..ARL (L) |
47722-04021 |
— | ||
|
47722
|
47722
47722-35020 Mounting, Front Disc Brake Cylinder, LhFRONT DISC BRAKE CYLINDER, LH [08.1988 - 08.1997] RN90..ARL (J) |
47722-35020 |
US $90.27 |
||
|
47730
|
47730
47730-04021
Cylinder Assy, Front Disc Brake, Rh
[10.1992 - 08.1997] RN90..ARL (L) |
47730-04021 |
— | ||
|
47730
|
47730
47730-35050 Cylinder Assy, Front Disc Brake, RhFRONT DISC BRAKE, RH [08.1988 - 08.1997] RN90..ARL (J) |
47730-35050 |
US $640.64 |
||
|
47731
|
47731
47731-35020 Piston, Front Disc Brake[08.1988 - 08.1997] RN90..ARL |
47731-35020 |
US $46.70 |
||
|
47744
|
47744
47744-35030 Shim, Anti-Squeal, No.1(For Front Disc Brake)[08.1988 - 08.1997] RN90..ARL |
47744-35030 |
US $3.79 |
||
|
47745
|
47745
47745-35030 Shim, Anti-Squeal, No.2(For Front Disc Brake)[08.1988 - 08.1997] RN90..ARL |
47745-35030 |
US $5.02 |
||
|
47750
|
47750
47750-04021
Cylinder Assy, Disc Brake, Lh
[10.1992 - 08.1997] RN90..ARL (L) |
47750-04021 |
— | ||
|
47750
|
47750
47750-35050 Cylinder Assy, Disc Brake, LhDISC BRAKE, LH [08.1988 - 08.1997] RN90..ARL (J) |
47750-35050 |
US $640.64 |
||
|
47771
|
47771
47771-22030 Plate, Pad Wear Indicator, No.1[08.1988 - 08.1997] RN90..ARL |
47771-22030 |
from US $2.51 |
||
|
47781
|
47781
47781-35030
Cover, Disc Brake Dust, Front Rh
[08.1988 - 08.1997] RN90..ARL |
47781-35030 |
— | ||
|
47781F
|
47781F
90102-12006
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
[08.1988 - 12.1999] LN8#,9#,RN8#,90,YN8#,9# FRONT |
90102-12006 |
— | ||
|
47781F
|
47781F
90102-12011
Bolt(For Dust Cover To Steering Knuckle Arm Rh)
[08.1988 - 12.1999] LN8#,9#,RN8#,90,YN8#,9# REAR |
90102-12011 |
— | ||
|
47781G
|
47781G
90102-12006
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
[08.1988 - 12.1999] LN8#,9#,RN8#,90,YN8#,9# FRONT |
90102-12006 |
— | ||
|
47781G
|
47781G
90102-12011
Bolt(For Dust Cover To Steering Knuckle Arm Rh)
[08.1988 - 12.1999] LN8#,9#,RN8#,90,YN8#,9# REAR |
90102-12011 |
— | ||
|
47781H
|
47781H
90171-12006 Nut(For Dust Cover To Steering Knuckle Arm Setting)[08.1988 - 03.1995] LN90,RN85,YN87,92;LN8#,RN80,90,YN80,81,85,86,90..ARL,TH,V |
90171-12006 |
US $2.80 |
||
|
47781J
|
47781J
90171-12006 Nut(For Dust Cover To Steering Knuckle Arm Setting)[08.1988 - 03.1995] LN90,RN85,YN87,92;LN8#,RN80,90,YN80,81,85,86,90..ARL,TH,V |
90171-12006 |
US $2.80 |
||
|
47782
|
47782
47782-35030
Cover, Disc Brake Dust, Front Lh
[08.1988 - 08.1997] RN90..ARL |
47782-35030 |
— | ||
|
9020112019
|
9020112019
90201-12019 WASHER |
90201-12019 |
from US $1.11 |
||
|
9095001301
|
9095001301
90950-01301 Plug, Hole(For Rear Disc Brake Cylinder) |
90950-01301 |
from US $1.09 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.76 |
||
