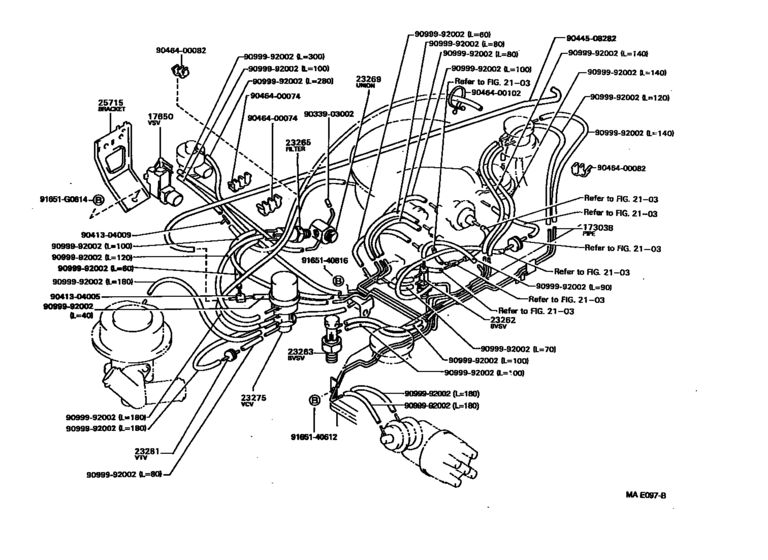

Vacuum Piping ([08.1990 - ] (9008- )22R..RN90..ARL) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1988 - 1997
- Sales region
- U.S.A.
- Frame
- RN90
- grade
- SR5
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HILUX 2WD
- From
- 08.1988
- To
- 08.1997
- Body
- XTR
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-35240 Pipe Sub-Assy, Air, No.1AIR, NO.1 [08.1988 - 08.1990] 22R..RN85,90..ARL |
17303-35240 |
US $141.23 |
||
|
17650
|
17650
90910-12035
Valve Assy, Vacuum Switching
[08.1988 - 08.1990] 22R..RN85,90..ARL; 22R..RN125,8#..V NO.1 |
90910-12035 |
— | ||
|
23262
|
23262
25810-27010
Valve, Bimetal Vacuum Switching, No.1
[08.1988 - 09.1999] 22R..RN125,8#,90 |
25810-27010 |
— | ||
|
23263
|
23263
90925-05073 Valve, Bimetal Vacuum Switching, No.2[08.1988 - 08.1990] 22R..RN85,90..ARL |
90925-05073 |
US $34.77 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1988 - 04.1990] 22R..RN85,90..ARL; 4Y..YN87,92;2Y,3Y..YN81,85,86..ARL,V |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1988 - 04.1990] 22R..RN85,90..ARL; 4Y..YN87,92;2Y,3Y..YN81,85,86..ARL,V |
90917-11027 |
from US $26.21 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[04.1990 - 08.1990] 22R..RN85,90..ARL |
90917-11027 |
from US $26.21 |
||
|
23269
|
23269
90404-54030 Union(For Gas Filter)[08.1988 - 09.1999] 22R..RN125,8#,90 |
90404-54030 |
US $10.63 |
||
|
23275
|
23275
90925-03104
Valve, Vacuum Control, No.1
[08.1988 - 08.1990] 22R..RN85,90..ARL |
90925-03104 |
— | ||
|
23281
|
23281
90925-01027
Valve, Vacuum Transmitting, No.1
[08.1988 - 08.1990] 22R..RN125,90;22R..RN85..ARL |
90925-01027 |
— | ||
| replacement | |||||
|
23281
|
23281
90925-01084
Valve, Vacuum Transmitting, No.1
[08.1988 - 08.1990] 22R..RN125,90;22R..RN85..ARL |
90925-01084 |
— | ||
|
23281
|
23281
90925-01084
Valve, Vacuum Transmitting, No.1
[08.1991 - 08.1997] 22R..RN125,90 |
90925-01084 |
— | ||
|
25715
|
25715
25715-35050 Bracket, Emission Control ValveEMISSION CONTROL VALVE [08.1988 - 12.1998] 22R..RN85..V;22R..RN85..RHD;22R..RN125,80,90 |
25715-35050 |
US $11.07 |
||
|
91651G0614
|
91651G0614
91651-G0614
BOLT,W/WASHER
|
91651-G0614 |
— | ||
| replacement | |||||
|
91651G0614
|
91651G0614
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $3.23 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.40 |
||
|
9041304009
|
9041304009
90413-04009 Way, 3(For Canister) |
90413-04009 |
US $8.59 |
||
|
9044508282
|
9044508282
90445-08282 New Genuine Part |
90445-08282 |
US $26.21 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
