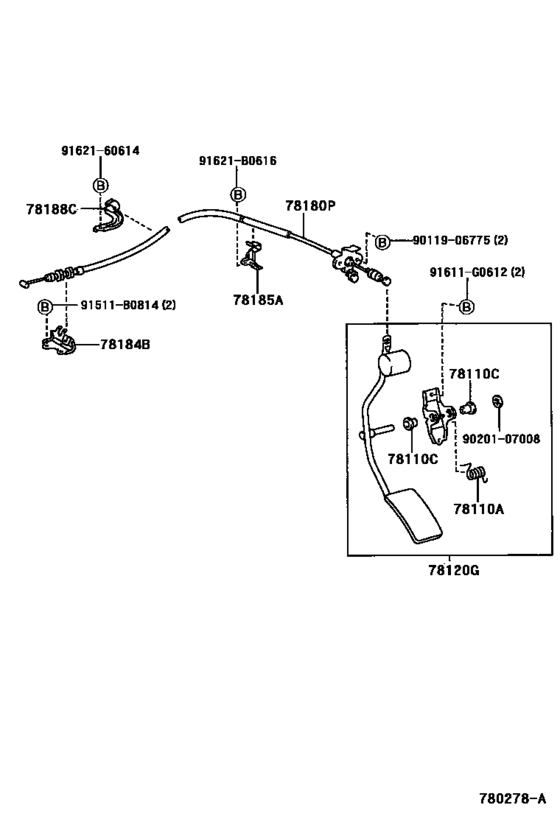

Accelerator Link ([08.1997 - ] (9708- )RZN142,147..RHD..CBR) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- RZN142
- grade
- DLX
- ENGINE
- 1RZ
- TRANSMISSION
- MTM
- DESTINATION
- SA
- CAB
- SCB
- Model
- HILUX
- From
- 10.2000
- To
- 04.2005
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90959-03085 Spring (For Accelerator Pedal Rod)[08.2000 -] RZN169..DCB..SA;RZN169..RHD..CBR;RZN149,169..MTM..DLX..(ARL,SA);RZN142,147,154,174 ,194..RHD..MTM |
90959-03085 |
US $4.22 |
||
|
78110C
|
78110C
90386-08063
Bush (For Accelerator Pedal Rod)
[08.2000 - 08.2002] RZN169..DCB..SA;RZN169..RHD..CBR;RZN169..DLX..(ARL,SA);LN145,155..LHD..DLX..TH;RZN 142,147,149,154,YN140..RHD..DLX;LN14#,152,16#,17#,19#,RZN174,194..(DSL,EFI)..(ARL, GCC,GEN,SA) |
90386-08063 |
— | ||
|
78120G
|
78120G
78120-35170 Rod Assy, Accelerator PedalACCELERATOR PEDAL [08.1997 -] RZN142,147..RHD..CBR |
78120-35170 |
US $41.06 |
||
|
78180P
|
78180P
78180-35360 Cable Assy, Accelerator ControlACCELERATOR CONTROL [08.1997 -] RZN142,147..RHD..CBR |
78180-35360 |
US $71.34 |
||
|
78184B
|
78184B
78024-26010 Bracket, Accelerator Control Cable[08.1997 - 12.2001] RZN142,147..CBR |
78024-26010 |
US $28.25 |
||
|
78185A
|
78185A
78185-35080 Clamp, Accelerator Control Cable, No.2[08.2000 - 03.2002] RZN169..SA;RZN149,169..DLX..ARL;RZN142,147,154,174,194,YN140..RHD |
78185-35080 |
US $9.61 |
||
|
78188C
|
78188C
78188-35050 Clamp, Accelerator Control Cable, No.5ACCELERATOR CONTROL CABLE, NO.5 [08.1997 -] RZN142,147..RHD..CBR |
78188-35050 |
US $6.84 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.79 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.78 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9020107008
|
9020107008
90201-07008 New Genuine Part |
90201-07008 |
US $0.70 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
