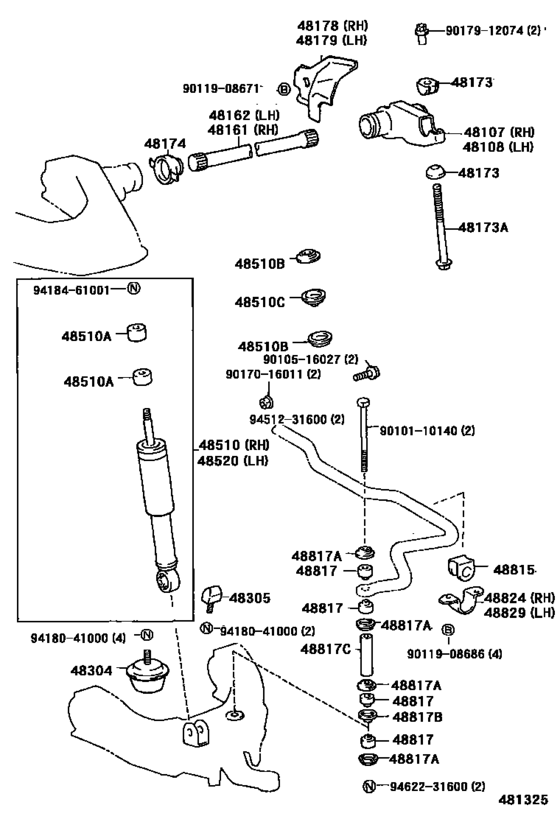

Front Spring & Shock Absorber ([06.2001 - ] (0106- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- RZN200
- grade
- DLX
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX 2WD
- From
- 06.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48107
|
48107
48107-35050 Arm Sub-Assy, Anchor, Rh[06.2001 -] LN200,RZN200 |
48107-35050 |
US $66.92 |
||
|
48108
|
48108
48108-35050 Arm Sub-Assy, Anchor, Lh[06.2001 -] LN200,RZN200 |
48108-35050 |
US $66.92 |
||
|
48161
|
48161
48161-35110 Spring, Torsion Bar, Rh[06.2001 -] RZN200 |
48161-35110 |
US $186.37 |
||
|
48162
|
48162
48162-35110
Spring, Torsion Bar, Lh
[06.2001 -] RZN200 |
48162-35110 |
— | ||
|
48173
|
48173
48173-35010 Swivel, Anchor Arm[06.2001 -] LN200,RZN200 LWR |
48173-35010 |
from US $5.23 |
||
|
48173
|
48173
48173-35020 Seat, Anchor Arm Adjuster[06.2001 -] LN200,RZN200 UPR |
48173-35020 |
from US $8.99 |
||
|
48173A
|
48173A
90101-12159 Bolt, Hexagon(For Anchor Arm Adjusting)[06.2001 -] LN200,RZN200 |
90101-12159 |
from US $5.67 |
||
|
48174
|
48174
48174-26010 Cover, Torsion Bar Dust[06.2001 -] LN200,RZN200 |
48174-26010 |
US $11.29 |
||
|
48179
|
48179
48179-35030
Protector, Torsion Bar Dust Cover, Lh
[06.2001 -] LN200,RZN200 |
48179-35030 |
— | ||
|
48304
|
48304
48304-35170 Bumper Sub-Assy, Front Spring, No.1[06.2001 -] LN200,RZN200 |
48304-35170 |
US $27.96 |
||
|
48305
|
48305
48305-35020 Bumper Sub-Assy, Front Spring, No.2[06.2001 -] LN200,RZN200 |
48305-35020 |
from US $9.77 |
||
|
48510
|
48510
48511-80066 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [06.2001 - 01.2004] RZN200 MARK 48511-3D151 |
48511-80066 |
US $85.55 |
||
|
48510
|
48510
48511-80112
Absorber Assy, Shock, Front Rh
[01.2004 -] RZN200 MARK 48511-3D151 |
48511-80112 |
— | ||
| replacement | |||||
|
48510
|
48510
48511-80065 Absorber Assy, Shock, Front Rh[01.2004 -] RZN200 MARK 48511-3D151 |
48511-80065 |
from US $81.59 |
||
|
48510A
|
48510A
90948-01003 Rubber Cushion[06.2001 -] LN200,RZN200 L=15 |
90948-01003 |
from US $1.54 |
||
|
48510A
|
48510A
90948-01045 Cushion, Front Shock Absorber[06.2001 -] LN200,RZN200 L=21 |
90948-01045 |
from US $4.37 |
||
|
48510B
|
48510B
90948-02131 Retainer, Cushion, No.1[06.2001 -] LN200,RZN200 |
90948-02131 |
from US $4.56 |
||
|
48510C
|
48510C
90948-02119 Retainer, Cushion, No.2(For Front Shock Absorber)[06.2001 -] LN200,RZN200 |
90948-02119 |
from US $4.47 |
||
|
48520
|
48520
48511-80066 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [06.2001 - 01.2004] RZN200 MARK 48511-3D151 |
48511-80066 |
US $85.55 |
||
|
48520
|
48520
48511-80112
Absorber Assy, Shock, Front Rh
[01.2004 -] RZN200 MARK 48511-3D151 |
48511-80112 |
— | ||
| replacement | |||||
|
48520
|
48520
48511-80065 Absorber Assy, Shock, Front Rh[01.2004 -] RZN200 MARK 48511-3D151 |
48511-80065 |
from US $81.59 |
||
|
48815
|
48815
48815-14160 Bush, Front Stabilizer Bar, No.1[06.2001 -] LN200,RZN200 |
48815-14160 |
from US $9.22 |
||
|
48817
|
48817
90948-01002 Cushion[06.2001 -] LN200,RZN200 |
90948-01002 |
from US $2.63 |
||
|
48817A
|
48817A
90948-02004 Cushion Retainer[06.2001 -] LN200,RZN200 |
90948-02004 |
from US $1.52 |
||
|
48817B
|
48817B
90948-02034 Retainer, Cushion, No.2(For Front Stabilizer Bar)[06.2001 -] LN200,RZN200 |
90948-02034 |
from US $1.91 |
||
|
48817C
|
48817C
90440-14003 Collar(For Stabilizer Bar)[06.2001 -] LN200,RZN200 |
90440-14003 |
from US $10.21 |
||
|
48824
|
48824
48824-35080 Bracket, Stabilizer, Front[06.2001 -] LN200,RZN200 |
48824-35080 |
from US $4.60 |
||
|
48829
|
48829
48829-35050 Bracket, Stabilizer[06.2001 -] LN200,RZN200 |
48829-35050 |
from US $4.66 |
||
|
9010110140
|
9010110140
90101-10140 Bolt(For Front Stabilizer) |
90101-10140 |
from US $4.10 |
||
|
9010516027
|
9010516027
90105-16027 BOLT |
90105-16027 |
US $9.32 |
||
|
9011908671
|
9011908671
90119-08671 Bolt |
90119-08671 |
US $1.10 |
||
|
9011908686
|
9011908686
90119-08686 BOLT |
90119-08686 |
from US $1.01 |
||
|
9017016011
|
9017016011
90170-16011 NUT HEXAGON |
90170-16011 |
from US $4.30 |
||
|
9017912074
|
9017912074
90179-12074 NUT |
90179-12074 |
from US $2.59 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.37 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.78 |
||
|
9451231600
|
9451231600
94512-31600 New Genuine Part |
94512-31600 |
US $1.89 |
||
|
9462231600
|
9462231600
94622-31600 WASHER PLAIN |
94622-31600 |
US $3.32 |
||
