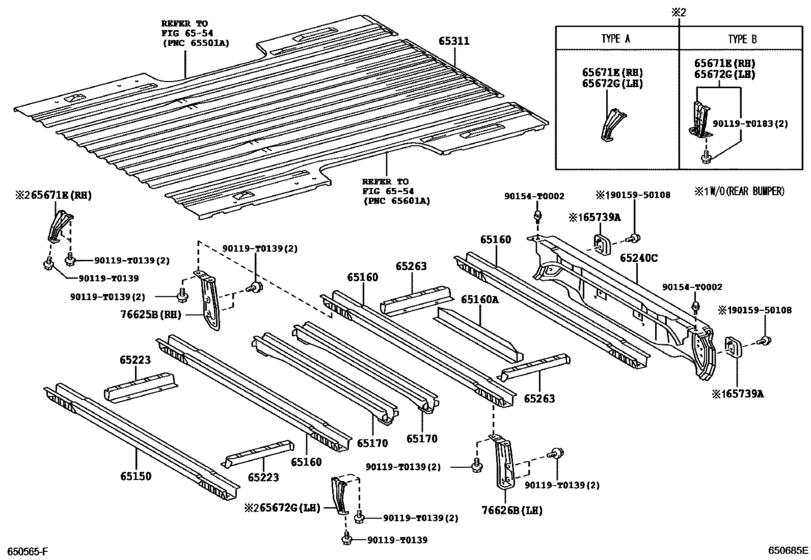

Rear Body Floor & Fender ([07.2005 - ] (0507- )KUN10,TGN10,11..CBU) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Frame
- TGN10
- grade
- DLX
- ENGINE
- 1TRFE
- DESTINATION
- IDN
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2006
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65150
|
65150
65150-0K020
Sill Assy, Cross, No.1
[10.2005 - 08.2008] KUN10,TGN10,11 |
65150-0K020 |
— | ||
|
65160
|
65160
65160-0K010
Sill Assy, Cross, No.2
[08.2004 - 08.2008] KUN10,TGN10,11;GGN15,25,KUN15,16,2#,36,TGN16,26..XTR..CBU |
65160-0K010 |
— | ||
|
65160A
|
65160A
65261-0K010
Sill Assy, Cross, No.2
[10.2005 - 08.2008] KUN10,TGN10,11 |
65261-0K010 |
— | ||
|
65170
|
65170
65170-0K010
Sill Assy, Cross, No.2
[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5 F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB. .(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB) |
65170-0K010 |
— | ||
|
65223
|
65223
65223-0K020
Reinforcement, Floor Panel, Front, No.1 Rh
[10.2005 - 08.2008] KUN10,TGN10,11 |
65223-0K020 |
— | ||
|
65240C
|
65240C
65240-0K040
Sill Assy, Cross, No.9
[08.2004 - 02.2012] KUN25..SCB..MA;KUN25..(DCB,SCB)..GEN;KUN15..SCB..(GEN,PKN);KUN15..(DCB,XTR)..DLX.. (GEN,PHL,TH);LAN15,TGN10,15,16,26..(DCB,SCB,XTR)..(GEN,IDN,PKN)..CBU |
65240-0K040 |
— | ||
|
65263
|
65263
65263-0K010
Reinforcement, Floor Side Frame
[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5 F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB. .(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB) |
65263-0K010 |
— | ||
|
65311
|
65311
65311-0K020
Panel, Floor, Center
[10.2005 - 08.2008] KUN10,TGN10,11 |
65311-0K020 |
— | ||
|
65671E
|
65671E
65608-0K020
Brace, Side Panel Skirt, Front Rh
[02.2006 - 02.2012] TGN16,26..(SCB,XTR)..(ANCOM,GCC,GEN,SA)..CBU;KUN15,16,25,3#,LAN15,25,TGN15,36..(SC B,THSCB)..CBU;GGN15,KUN15,TGN10..RHD..(SCB,XTR)..(HDCR,HTWC)..CBU TYPE B:REFER ILLUST. |
65608-0K020 |
— | ||
|
65672G
|
65672G
65609-0K020
Brace, Side Panel Skirt, Front Lh
[02.2006 - 02.2012] TGN16,26..(SCB,XTR)..(ANCOM,GCC,GEN,SA)..CBU;KUN15,16,25,3#,LAN15,25,TGN15,36..(SC B,THSCB)..CBU;GGN15,KUN15,TGN10..RHD..(SCB,XTR)..(HDCR,HTWC)..CBU TYPE B:REFER ILLUST. |
65609-0K020 |
— | ||
|
65739A
|
65739A
65738-0K020
Bumper, Tail Gate
[08.2004 - 02.2012] KUN25..SCB..MA;KUN26..ARL..CBU;KUN16..(SCB,XTR)..TH;KUN25..(DCB,SCB)..(GEN,SA);KUN 15,16..(DCB,SCB)..DLX..(ARL,PHL,SA)..CBU;GGN25,KUN15..(DCB,SCB,XTR)..(ARL,GEN,PKN, TH)..CBU;GGN15,LAN15,25,35,TGN10,15,16,26..(DCB,SCB,XTR)..(5F,5FC)..( |
65738-0K020 |
— | ||
|
65739A
|
65739A
65739-0K040
Bumper, Tail Gate
[08.2004 - 02.2012] KUN25..SCB..MA;KUN26..ARL..CBU;KUN16..(SCB,XTR)..TH;KUN25..(DCB,SCB)..(GEN,SA);KUN 15,16..(DCB,SCB)..DLX..(ARL,PHL,SA)..CBU;GGN25,KUN15..(DCB,SCB,XTR)..(ARL,GEN,PKN, TH)..CBU;GGN15,LAN15,25,35,TGN10,15,16,26..(DCB,SCB,XTR)..(5F,5FC)..( |
65739-0K040 |
— | ||
|
76625B
|
76625B
76607-0K040 Mudguard, Rear Body, RhREAR BODY, RH [08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5 F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB. .(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB) |
76607-0K040 |
from US $25.19 |
||
|
76626B
|
76626B
76608-0K040
Mudguard, Rear Body, Lh
[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5 F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB. .(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB) |
76608-0K040 |
— | ||
|
90119T0139
|
90119T0139
90119-T0139 New Genuine Part |
90119-T0139 |
US $1.24 |
||
|
90119T0183
|
90119T0183
90119-T0183
BOLT WWASHER
|
90119-T0183 |
— | ||
|
90154T0002
|
90154T0002
90154-T0002
New Genuine Part
|
90154-T0002 |
— | ||
|
9015950108
|
9015950108
90159-50108 New Genuine Part |
90159-50108 |
US $0.79 |
