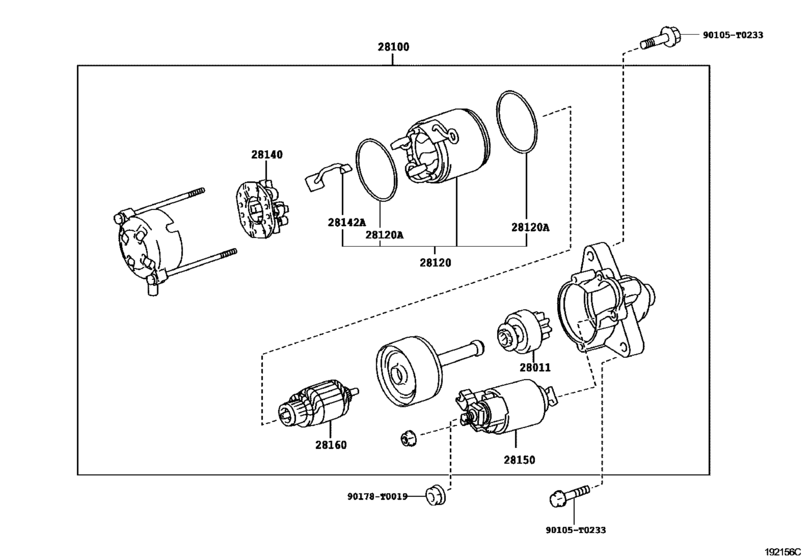

Starter ([02.2005 - ] 12V 1.0KW (0502- )1TRFE..GCC,GEN,IDN) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Frame
- TGN10
- grade
- DLX
- ENGINE
- 1TRFE
- DESTINATION
- IDN
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2006
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[02.2005 - 08.2008] 1TRFE..TGN10,15..GCC,GEN,IDN |
28011-70020 |
US $43.51 |
||
|
28100
|
28100
28100-0C030
Starter Assy
[02.2005 - 08.2008] 1TRFE..TGN10,15..GCC,GEN,IDN 12V 1.0KW |
28100-0C030 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-0C031 Starter Assy[02.2005 - 08.2008] 1TRFE..TGN10,15..GCC,GEN,IDN 12V 1.0KW |
28100-0C031 |
US $387.31 |
||
|
28100
|
28100
28100-0C031 Starter Assy[02.2010 - 07.2011] 1TRFE..TGN10,15..GCC,GEN,IDN 12V 1.0KW |
28100-0C031 |
US $387.31 |
||
|
28120
|
28120
28120-0C030
Yoke Assy, Starter
[02.2010 - 07.2011] 1TRFE..TGN10,15..GCC,GEN,IDN |
28120-0C030 |
— | ||
|
28120
|
28120
28120-70050
Yoke Assy, Starter
[02.2005 - 08.2008] 1TRFE..TGN10,15..GCC,GEN,IDN |
28120-70050 |
— | ||
|
28120A
|
28120A
90099-14092
Ring, O(For Starter Yoke)
[02.2010 - 07.2011] 1TRFE..TGN10,15..GCC,GEN,IDN |
90099-14092 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[02.2005 - 08.2008] 1TRFE..TGN10,15..GCC,GEN,IDN |
28140-70020 |
from US $22.19 |
||
|
28142A
|
28142A
28142-70020 Brush, Starter[02.2010 - 07.2011] 1TRFE..TGN10,15..GCC,GEN,IDN |
28142-70020 |
from US $2.69 |
||
|
28150
|
28150
28150-75150 Switch Assy, Magnet Starter[02.2005 - 08.2008] 1TRFE..TGN10,15..GCC,GEN,IDN |
28150-75150 |
US $93.18 |
||
|
28160
|
28160
28160-70050 Armature Assy, Starter[02.2010 - 07.2011] 1TRFE..TGN10,15..GCC,GEN,IDN |
28160-70050 |
US $161.62 |
||
|
90105T0233
|
90105T0233
90105-T0233 BOLT FLANGE |
90105-T0233 |
US $1.35 |
||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.92 |
||
