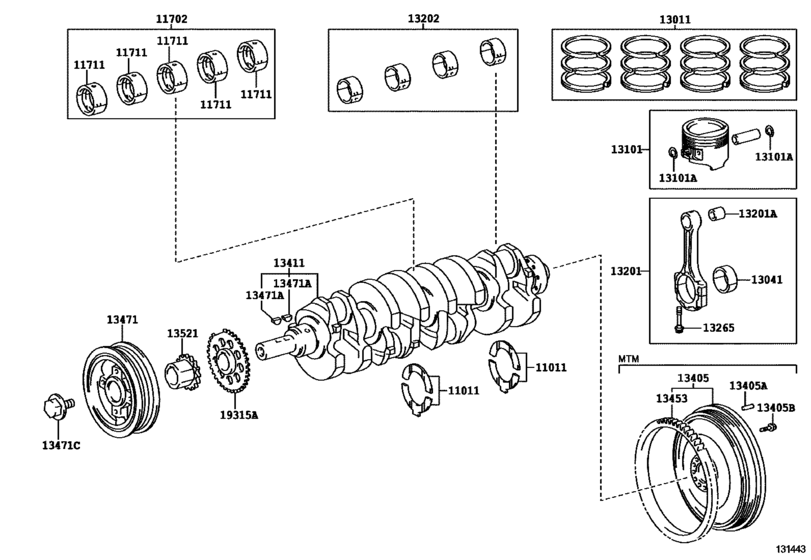

Crankshaft & Piston ([01.2005 - ] (0501- )1TRFE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Frame
- TGN10
- grade
- STD
- ENGINE
- 1TRFE
- DESTINATION
- IDN
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2009
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-0C010 Washer Set, Crankshaft Thrust[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH STD,(L) |
11011-0C010 |
US $19.91 |
||
|
11702
|
11702
11704-75031
Bearing Set, Crankshaft
[08.2008 - 04.2012] 2TRFE..TGN36..CBU;1TRFE,2TRFE..TGN1#;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM. .IV3;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA) U/S 0.25 |
11704-75031 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-75033 Bearing Set, Crankshaft[08.2008 - 04.2012] 2TRFE..TGN36..CBU;1TRFE,2TRFE..TGN1#;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM. .IV3;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA) U/S 0.25 |
11704-75033 |
from US $96.08 |
||
|
11711
|
11711
11701-0C010-01
Bearing, Crankshaft
[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH MARK1,(L):REFER R/M |
11701-0C010-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-0C011-01 Bearing, Crankshaft[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH MARK1,(L):REFER R/M |
11701-0C011-01 |
US $16.07 |
||
|
11711
|
11711
11701-0C010-02
Bearing, Crankshaft
[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH MARK2,(L):REFER R/M |
11701-0C010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-0C011-02 Bearing, Crankshaft[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH MARK2,(L):REFER R/M |
11701-0C011-02 |
US $16.83 |
||
|
11711
|
11711
11701-0C010-03
Bearing, Crankshaft
[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH MARK3,(L):REFER R/M |
11701-0C010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-0C011-03 Bearing, Crankshaft[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH MARK3,(L):REFER R/M |
11701-0C011-03 |
US $16.42 |
||
|
13011
|
13011
13011-0C010 Ring Set, Piston[08.2008 - 08.2011] 1TRFE..TGN10,15 STD,(L) |
13011-0C010 |
US $72.95 |
||
|
13011
|
13011
13013-75100 Piston Ring Set[08.2008 - 08.2011] 1TRFE..TGN10,15 O/S 0.50 |
13013-75100 |
from US $128.95 |
||
|
13041
|
13041
13041-0C050-04
Bearing, Connecting Rod
[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH MARK4,(L):REFER R/M |
13041-0C050-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0C051-04
Bearing, Connecting Rod
[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH MARK4,(L):REFER R/M |
13041-0C051-04 |
— | ||
|
13041
|
13041
13041-0C050-05
Bearing, Connecting Rod
[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH MARK5,(L):REFER R/M |
13041-0C050-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0C051-05
Bearing, Connecting Rod
[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH MARK5,(L):REFER R/M |
13041-0C051-05 |
— | ||
|
13041
|
13041
13041-0C050-06
Bearing, Connecting Rod
[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH MARK6,(L):REFER R/M |
13041-0C050-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0C051-06
Bearing, Connecting Rod
[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH MARK6,(L):REFER R/M |
13041-0C051-06 |
— | ||
|
13101
|
13101
13101-0C010
Piston Sub-Assy, W/pin
[08.2008 - 08.2011] 1TRFE..TGN10,15 STD,(L) |
13101-0C010 |
— | ||
|
13101
|
13101
13103-75120 Piston Sub-Assy, W/pin[08.2008 - 08.2011] 1TRFE..TGN10,15 O/S 0.50 |
13103-75120 |
from US $58.52 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[08.2008 - 04.2012] 2TRFE..TGN16..SMT;2TRFE..TGN36..CBU;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM.. IV3;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN1#..ARL,GCC,GEN,IDN,SA |
90520-22025 |
from US $1.95 |
||
|
13201
|
13201
13201-09301
Rod Sub-Assy, Connecting
[08.2008 - 08.2011] 1TRFE..TGN10,15 *191 |
13201-09301 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-09303
Rod Sub-Assy, Connecting
[08.2008 - 08.2011] 1TRFE..TGN10,15 *191 |
13201-09303 |
— | ||
|
13201A
|
13201A
90999-73144 Bush(For Connecting Rod Small End)[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH |
90999-73144 |
from US $2.38 |
||
|
13202
|
13202
13204-75050
Bearing Set, Connecting Rod
[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH U/S 0.25 |
13204-75050 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-75070 Bearing Set, Connecting Rod[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH U/S 0.25 |
13204-75070 |
from US $54.23 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH |
13265-28020 |
from US $2.85 |
||
|
13405
|
13405
13405-0C020
Flywheel Sub-Assy
[08.2008 - 08.2010] 1TRFE..TGN10,15..GCC,GEN,IDN |
13405-0C020 |
— | ||
|
13405A
|
13405A
90250-T0010
Pin, Straight(For Flywheel)
[08.2008 - 08.2010] 1TRFE..TGN10,15..GCC,IDN L=23,OD=8 |
90250-T0010 |
— | ||
|
13405B
|
13405B
90910-T2004 Bolt, Flywheel Setting[08.2008 - 08.2010] 1TRFE..TGN10,15..GCC,IDN |
90910-T2004 |
US $2.42 |
||
|
13411
|
13411
13401-0C010 Crankshaft[08.2008 - 08.2011] 1TRFE..TGN10,15 *191,(L) |
13401-0C010 |
US $643.85 |
||
|
13411
|
13411
13401-75010 Crankshaft[08.2008 - 08.2011] 1TRFE..TGN10,15 *191,(J) |
13401-75010 |
US $848.85 |
||
|
13453
|
13453
13453-0C030
Gear, Flywheel Ring
[08.2008 - 08.2010] 1TRFE..TGN10,15..GCC,IDN |
13453-0C030 |
— | ||
|
13471
|
13471
13408-0C040
Pulley, Crankshaft
[08.2008 - 08.2010] 1TRFE..TGN10,15..GCC,IDN |
13408-0C040 |
— | ||
| replacement | |||||
|
13471
|
13471
13408-0C030 Pulley, Crankshaft[08.2008 - 08.2010] 1TRFE..TGN10,15..GCC,IDN |
13408-0C030 |
US $163.76 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH (J) |
90280-05005 |
from US $0.94 |
||
|
13471A
|
13471A
90280-T0003
Key, Crankshaft(For Crankshaft Pulley Set)
[08.2008 - 04.2012] 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..T GN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC, IDN,SA,TH (L) |
90280-T0003 |
— | ||
|
13471C
|
13471C
90109-T0038 Bolt(For Crankshaft Pulley Set)[08.2008 - 08.2010] 1TRFE..TGN10,15..GCC,IDN |
90109-T0038 |
US $5.07 |
||
|
13521
|
13521
13521-0C010
Gear Or Sprocket, Crankshaft Timing
[08.2008 - 08.2010] 1TRFE,2TRFE..TGN10,11,15..GCC,IDN;2TRFE..TGN16,26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,G EN,TH) |
13521-0C010 |
— | ||
| replacement | |||||
|
13521
|
13521
13521-0C011 Gear Or Sprocket, Crankshaft Timing[08.2008 - 08.2010] 1TRFE,2TRFE..TGN10,11,15..GCC,IDN;2TRFE..TGN16,26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,G EN,TH) |
13521-0C011 |
US $29 |
||
|
19315A
|
19315A
19315-0C010
Rotor, Crank Position Sensor
[08.2008 - 08.2011] 1TRFE..TGN10,15 (L) |
19315-0C010 |
— | ||
|
19315A
|
19315A
19315-75020 Rotor, Crank Position Sensor[08.2008 - 08.2010] 1TRFE..TGN10,15..GCC,IDN (J) |
19315-75020 |
US $22.89 |
||
